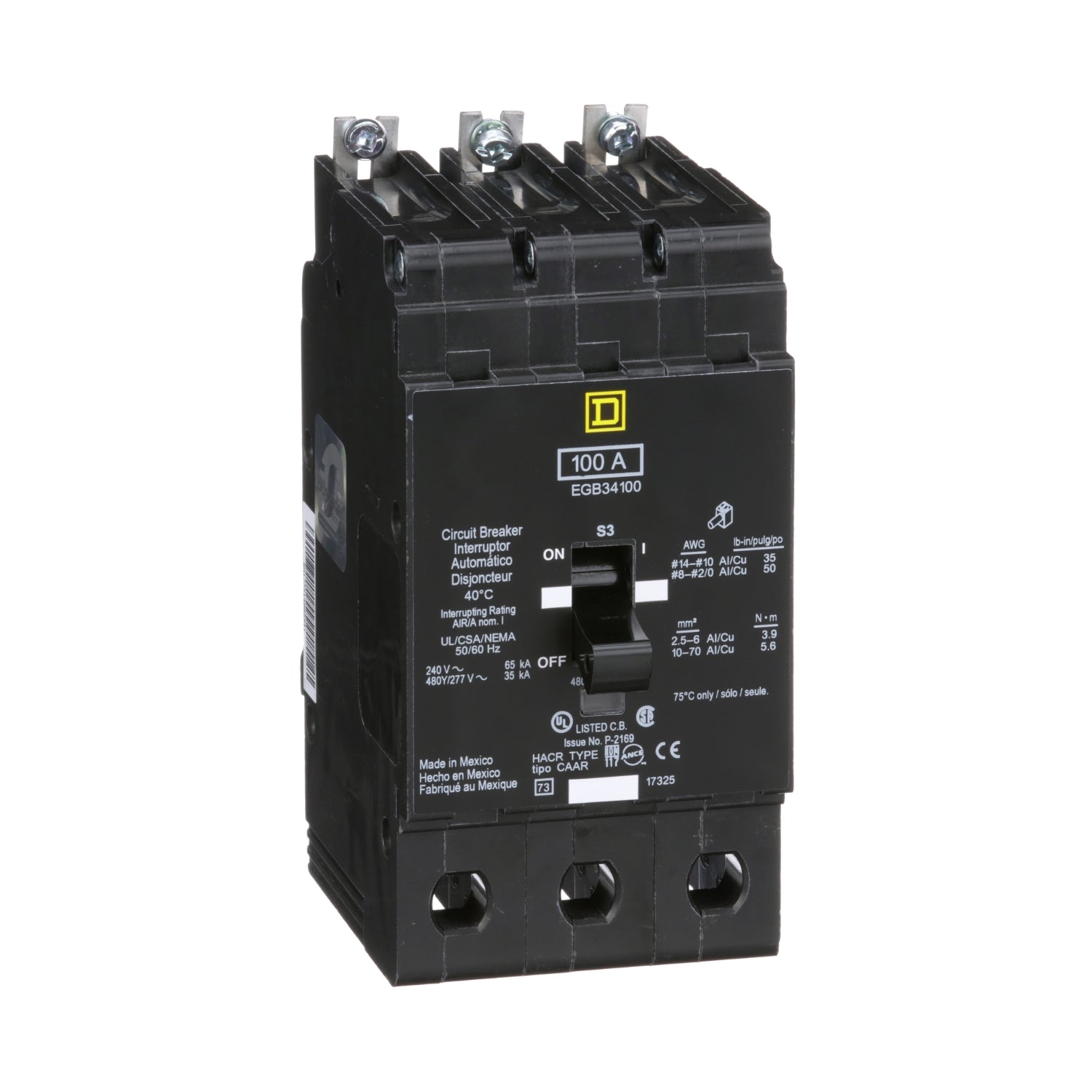

EGB34100 | Schneider Electric EGB Series 3-Pole 100A Thermal Magnetic Molded Case Circuit Breaker
- Regular price
- $389.00
- Sale price
- $389.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: EGB34100
Description
The Schneider Electric EGB34100 is a three-pole molded case circuit breaker designed for three-phase electrical distribution systems rated at 480 volts. It provides thermal magnetic protection with long-time and instantaneous trip functions for reliable overcurrent and short-circuit protection.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Schneider Electric |
| Category | Circuit Breaker |
| Part Number | EGB34100 |
| Subcategory | Molded Case Circuit Breaker |
| Family | EGB Series |
| Type | EGB |
| Rated Voltage | 480 V |
| Rated Current | 100 A |
| Number of Poles | 3 |
| Phase | Three-phase |
| Interrupt Rating | 35 kA at 480 V |
| Protection Type | Thermal Magnetic |
| Trip Functions | Long-Time and Instantaneous (LI) |
| Connection Type | Bolt-On |
Information About EGB34100
The EGB34100 is part of Schneider Electric’s EGB Series molded case circuit breakers, developed for dependable protection in industrial and commercial power distribution systems. It features a compact molded case construction with a fixed thermal magnetic trip unit that ensures consistent and predictable protection performance. The three-pole configuration allows for balanced protection across all phases in three-phase applications. This breaker is commonly installed in panelboards and switchgear where bolt-on mounting and high interrupting capacity are required.
Key Features
- Three-pole molded case design: Provides coordinated disconnection and protection across all phases in three-phase circuits.
- 100 amp continuous current rating: Suitable for feeder and branch circuit applications with higher load demands.
- Thermal magnetic protection system: Combines inverse-time overload protection with instantaneous short-circuit response.
- LI trip functionality: Ensures dependable protection against sustained overcurrent conditions and sudden fault events.
- High interrupting capacity: Rated at 35 kA at 480 V for applications with elevated available fault current.
- Bolt-on mounting configuration: Delivers a secure mechanical and electrical connection to panelboard bus assemblies.
- EGB Series compatibility: Designed for integration into Schneider Electric EGB panelboards and distribution equipment.
The EGB34100 delivers the reliability and precision required for protecting three-phase electrical distribution circuits in industrial and commercial power systems.
