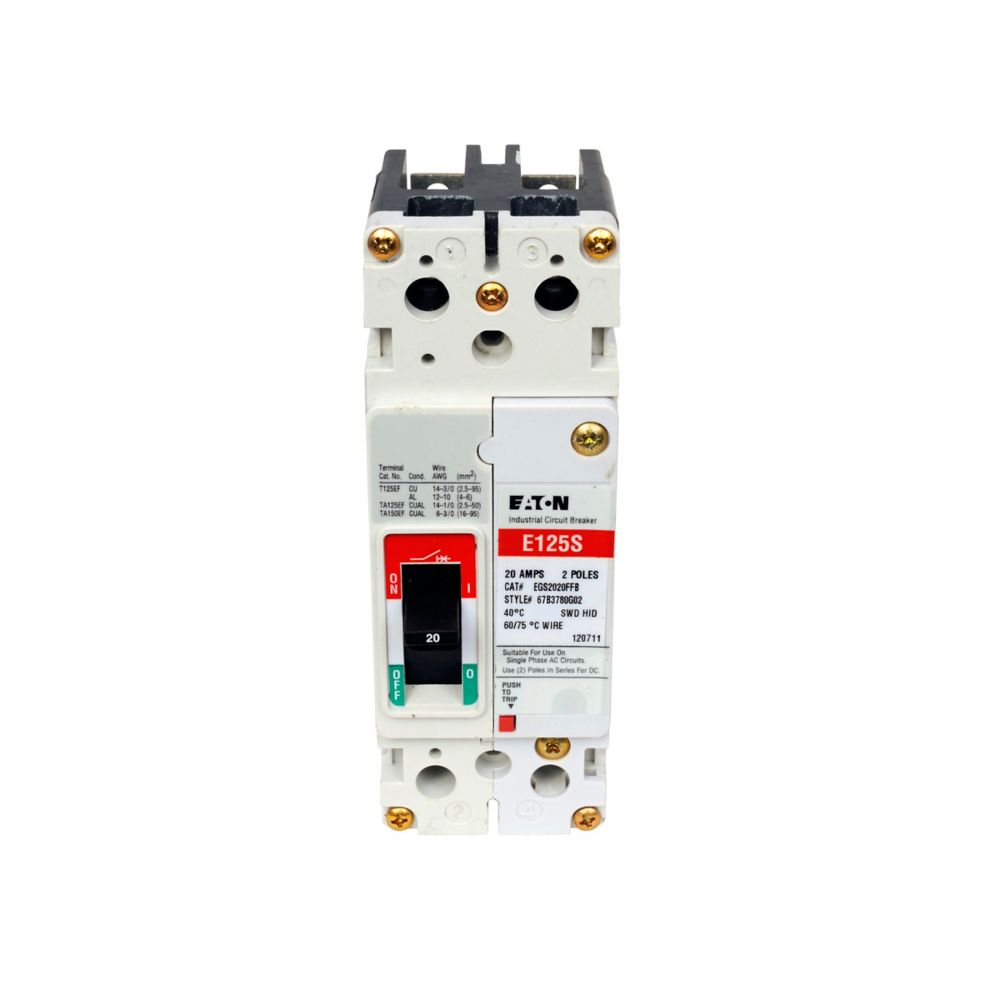

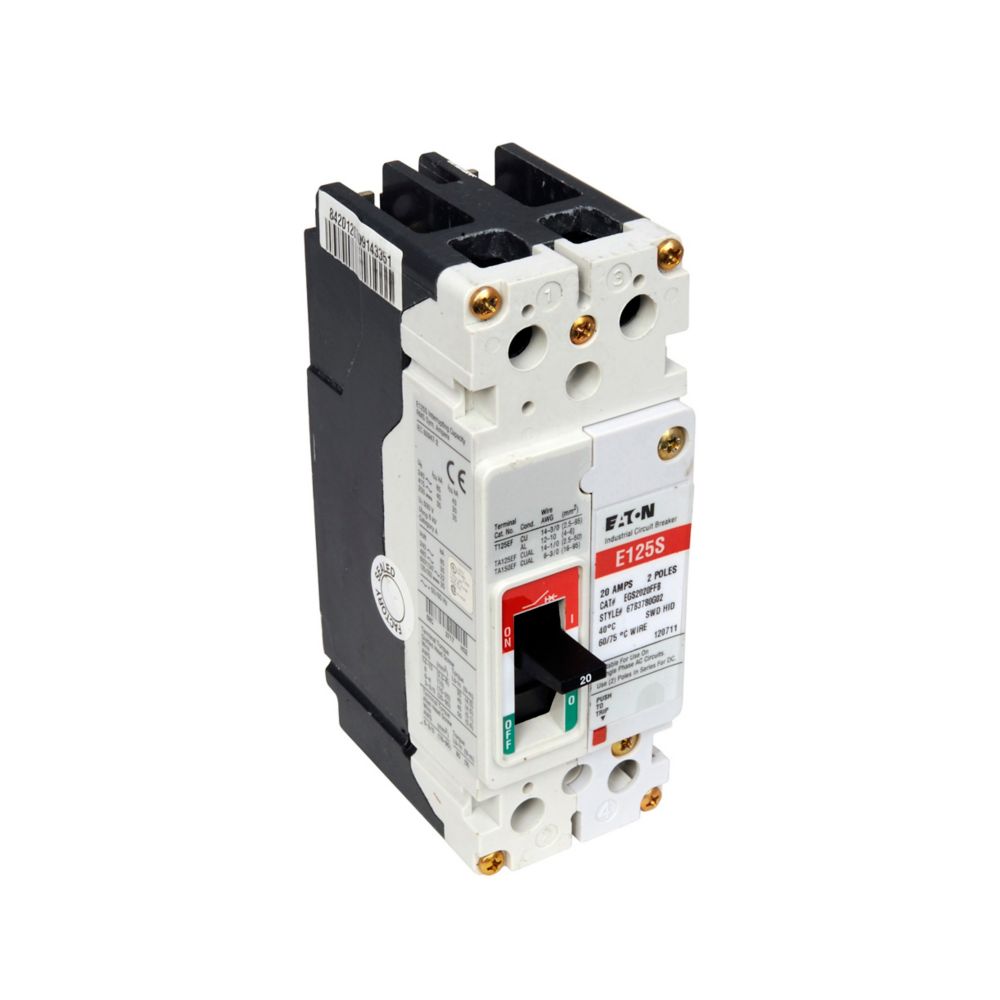

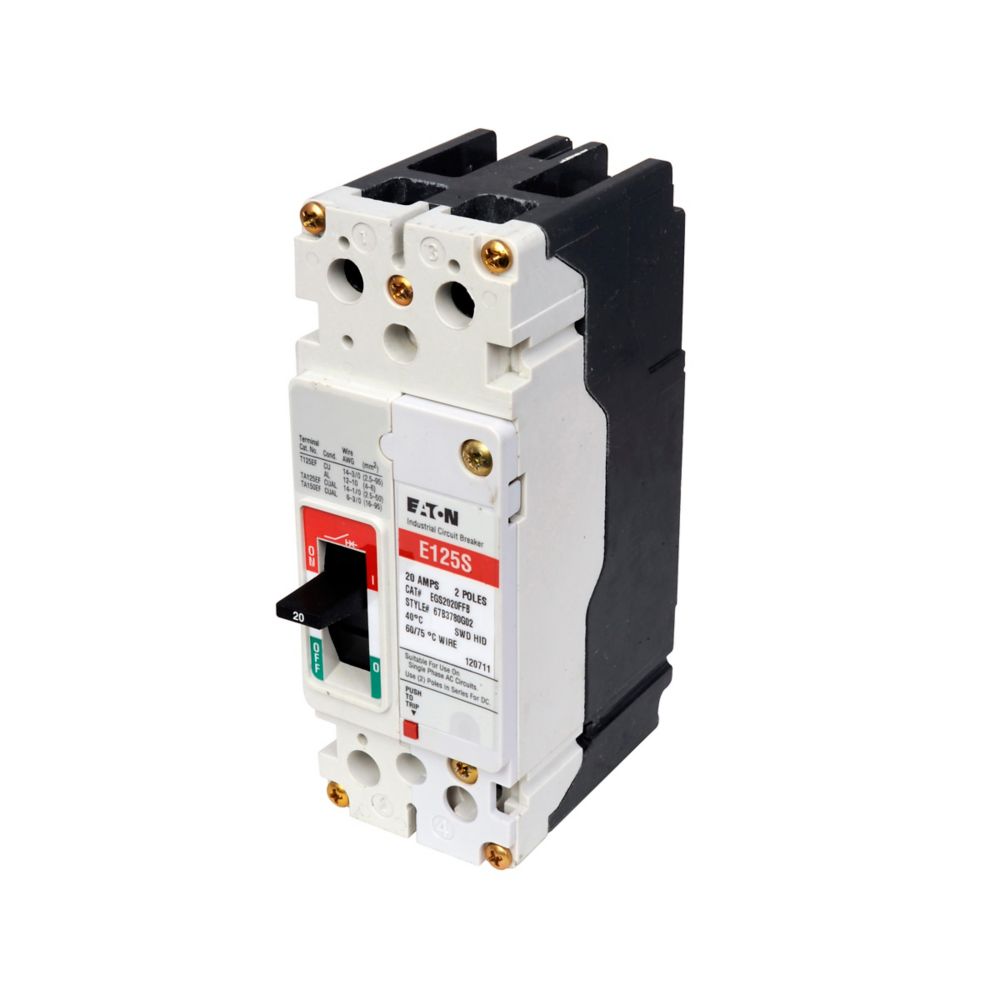

EGH2020FFB | Eaton Series G 20A 2-Pole 600Y/347V Molded Case Circuit Breaker
- Regular price
- $611.00
- Sale price
- $611.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: EGH2020FFB
Description
The Eaton EGH2020FFB is a two-pole molded case circuit breaker designed to provide high-interrupting overcurrent protection in commercial and industrial power systems. Rated at 20A and operating up to 600Y/347VAC, the Eaton EGH2020FFB delivers dependable thermal magnetic protection across a wide range of voltage levels.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Eaton |
| Category | Circuit Breaker |
| Part Number | EGH2020FFB |
| Subcategory | Molded Case |
| Series | Series G |
| Frame Type | EG |
| Breaker Type | Molded Case Circuit Breaker |
| Current Rating | 20 Amps |
| Voltage Rating | 600Y/347 VAC |
| Poles | 2 |
| Phase | Single Phase |
| Frequency Rating | 50/60 Hz |
| Trip Unit Type | Thermal Magnetic (Fixed-Fixed) |
| Trip Functions | Long Time and Instantaneous |
| Interrupting Ratings | 100 kAIC @ 240VAC; 65 kAIC @ 480VAC; 35 kAIC @ 600Y/347VAC |
| Connection Type | Bolt-On |
| Terminal Connection | Line and Load Side Lugs |
| Certifications | UL, CSA, IEC, CE, KEMA, KEUR |
| Weight | 1 lb |
Information About EGH2020FFB
The EGH2020FFB is part of Eaton’s Series G molded case circuit breaker family, built on the EG frame for compact yet robust performance. It features a fixed thermal, fixed magnetic trip unit that ensures consistent long-time and instantaneous response to overloads and short-circuit conditions. The breaker supports bolt-on terminal connections and is designed for use in 50/60 Hz electrical systems with single-phase configurations. With multiple interrupt ratings across different voltage levels, it is suitable for demanding distribution applications requiring high fault-clearing capacity.
Key Features:
- Series G EG-Frame Design: Provides compact construction with high interrupting performance.
- 20 Amp Current Rating: Supports low-current branch and feeder circuit protection.
- Thermal Magnetic Trip Unit: Fixed long-time and instantaneous protection ensures predictable operation.
- High Interrupt Ratings: Rated up to 100 kAIC at 240VAC for robust short-circuit protection.
- Wide Voltage Capability: Operates at 600Y/347VAC for flexible application across power systems.
- Two-Pole Configuration: Protects dual conductors in single-phase installations.
- Bolt-On Terminals: Enables secure mechanical and electrical connections.
The EGH2020FFB delivers the reliability and precision required for high-interrupting molded case circuit breaker applications in industrial and commercial systems.
