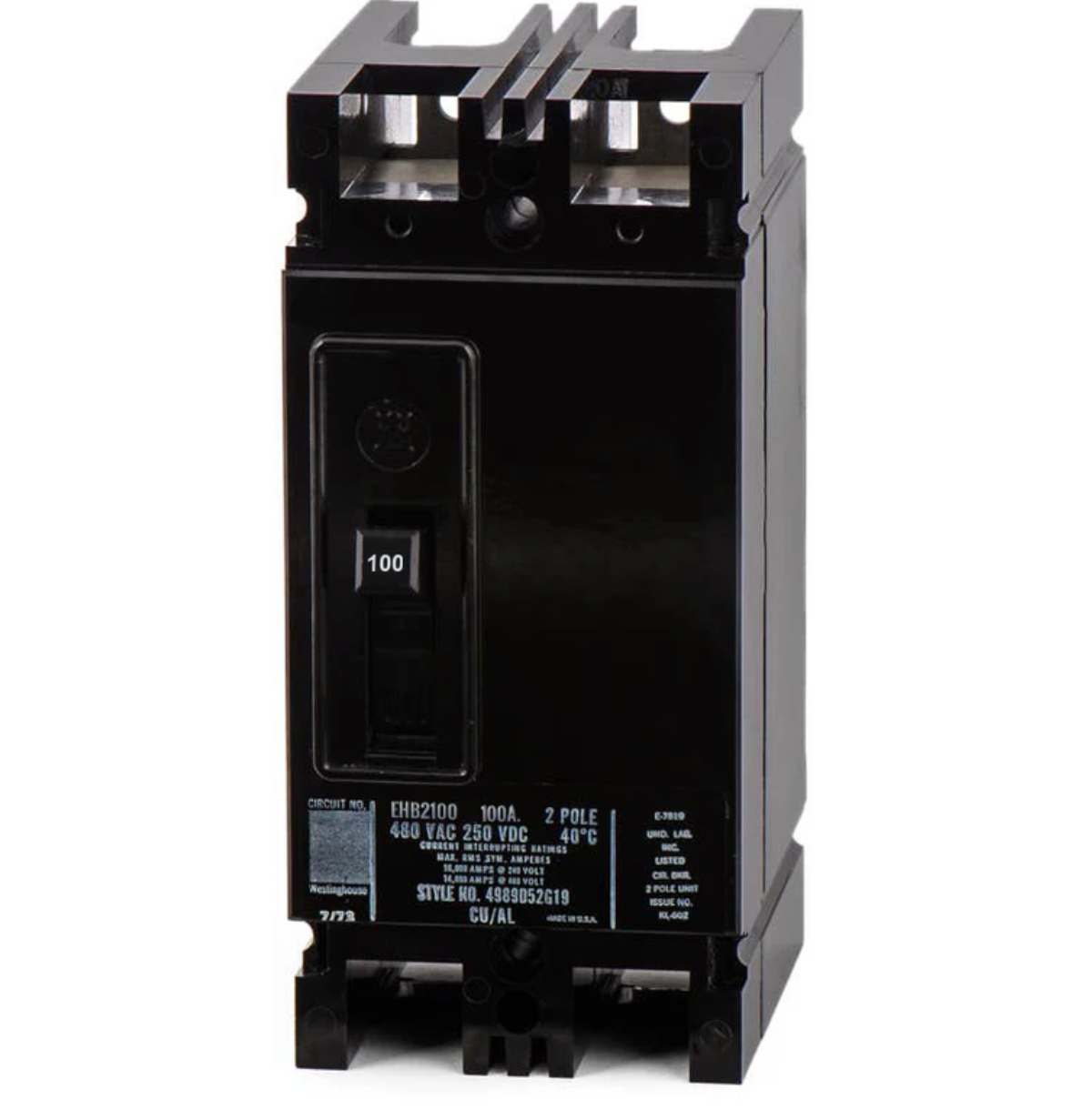

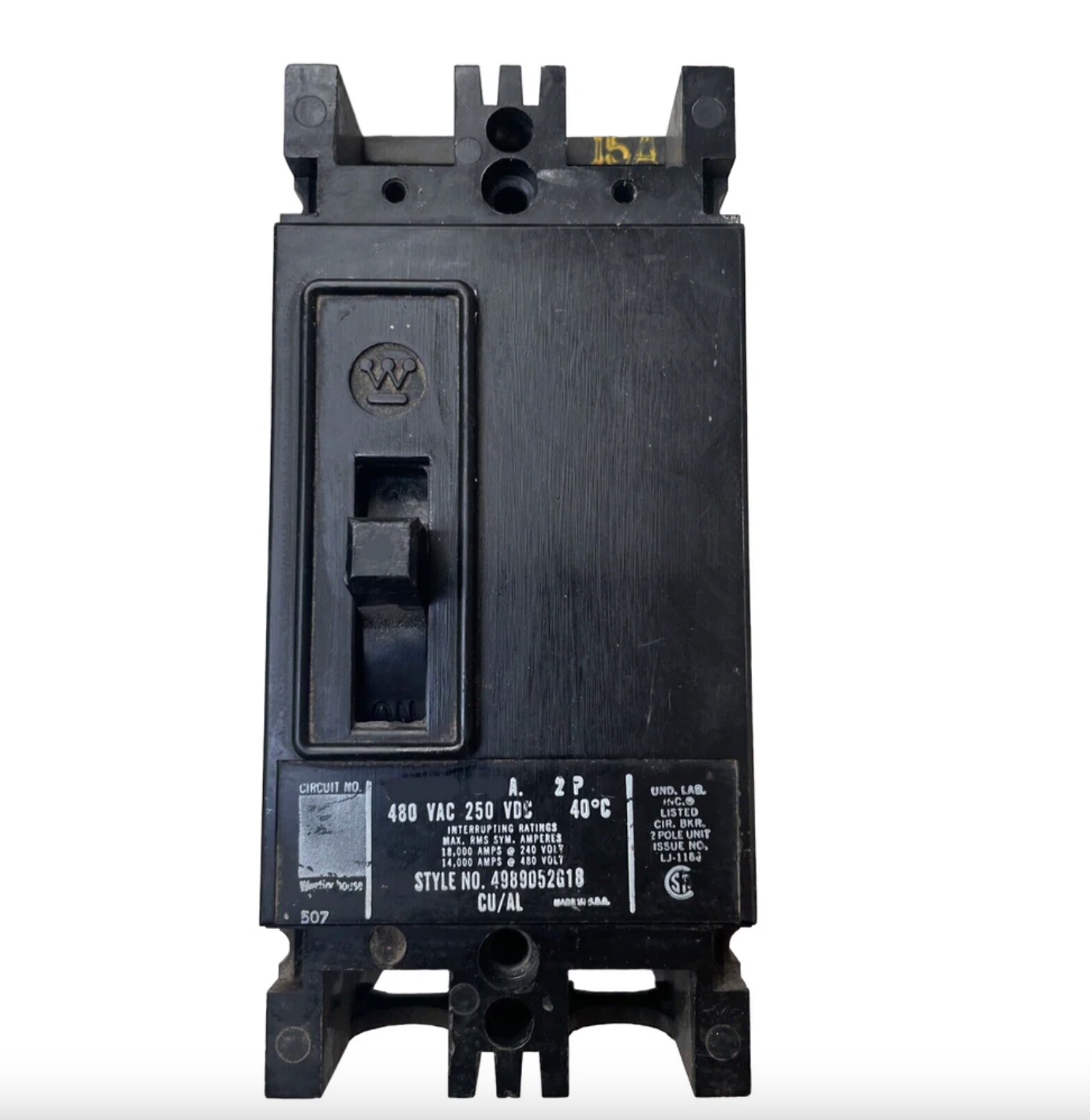

EHB2100 | Eaton EHB 100A 2-Pole 480VAC Molded Case Circuit Breaker
- Regular price
- $563.00
- Sale price
- $563.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: EHB2100
Description
The Eaton EHB2100 is a 2-pole molded case circuit breaker designed to provide reliable overcurrent protection in industrial electrical systems. Rated at 100 amps with thermal magnetic trip functionality, the Eaton EHB2100 is suitable for applications requiring dependable fault interruption and bolt-on installation.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Eaton / Westinghouse |
| Category | Circuit Breaker |
| Part Number | EHB2100 |
| Subcategory | Molded Case |
| Series | EHB |
| Breaker Type | Molded Case Circuit Breaker |
| Current Rating | 100 Amps |
| Voltage Rating | 480 VAC |
| Poles | 2 |
| Phase | Single Phase |
| Interrupting Rating | 14 kAIC at 480 VAC |
| Trip Unit Type | Thermal Magnetic |
| Trip Functions | Long-Time and Instantaneous |
| Connection Type | Bolt-On |
| Terminal Connection | Load Side Lug |
| Temperature Rating | 40 °C |
| Certifications | Industrial Circuit Breaker Standards |
| Weight | 6 lb |
Information About EHB2100
The EHB2100 is part of the Eaton / Westinghouse EHB frame series, engineered for industrial power distribution and equipment protection. It features a thermal magnetic trip unit that delivers long-time and instantaneous protection against overload and short-circuit conditions. The breaker supports bolt-on mounting with load-side lug terminals, ensuring secure mechanical and electrical connections. Designed for single-phase systems, it offers a robust interrupting capacity at elevated voltage levels for consistent performance in demanding environments.
Key Features:
- EHB Frame Series Design: Built for industrial-grade molded case circuit protection.
- 100 Amp Current Rating: Supports medium-load branch and feeder circuits.
- Thermal Magnetic Trip Unit: Provides long-time and instantaneous response to electrical faults.
- High Interrupting Capacity: Rated at 14 kAIC at 480VAC for effective short-circuit protection.
- Two-Pole Configuration: Suitable for single-phase electrical systems requiring dual-conductor protection.
- Bolt-On Mounting: Ensures stable installation in compatible panels and enclosures.
- Load Side Lug Terminals: Enables secure conductor termination.
The EHB2100 delivers the reliability and precision required for industrial molded case circuit breaker applications.
