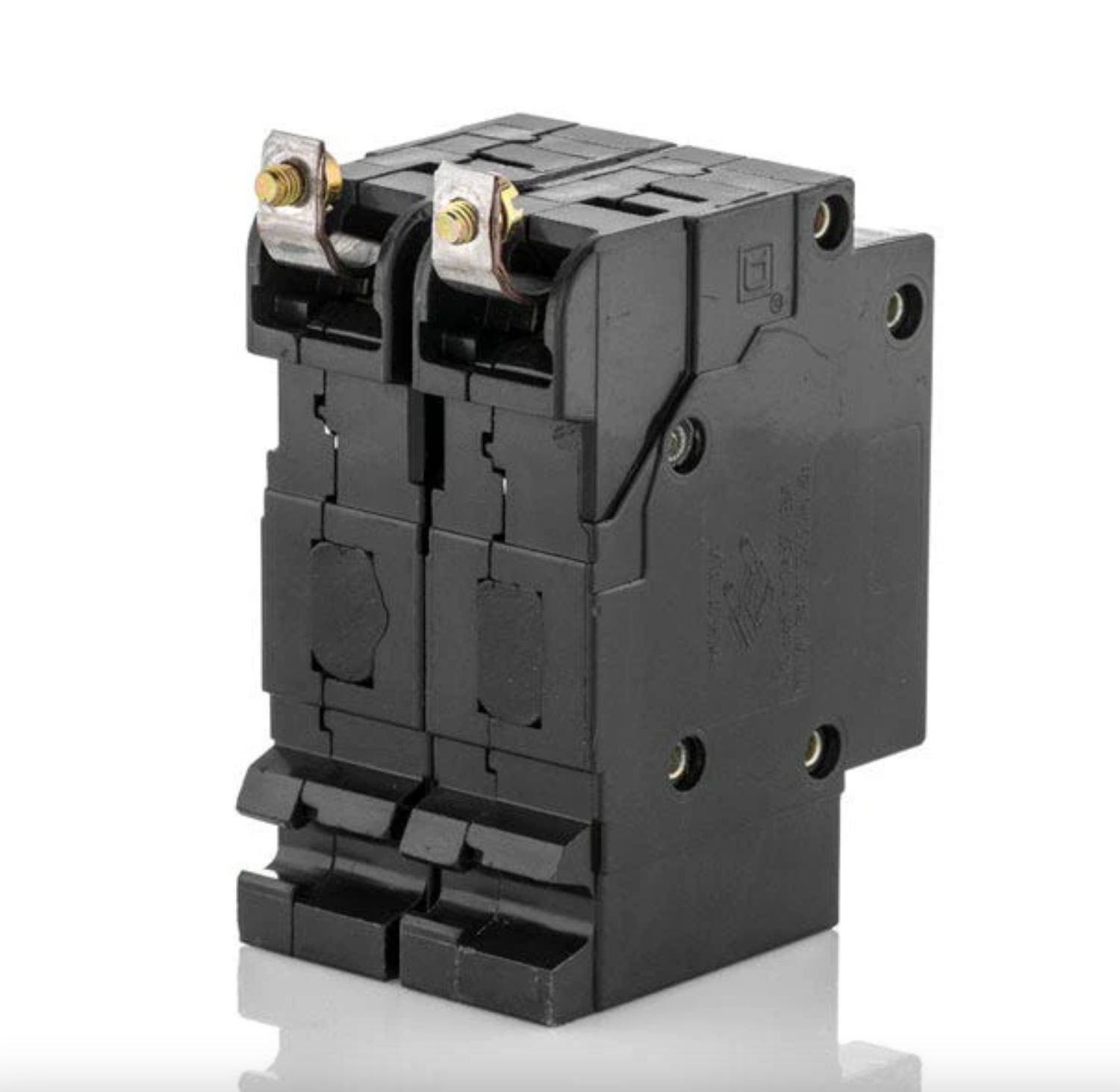

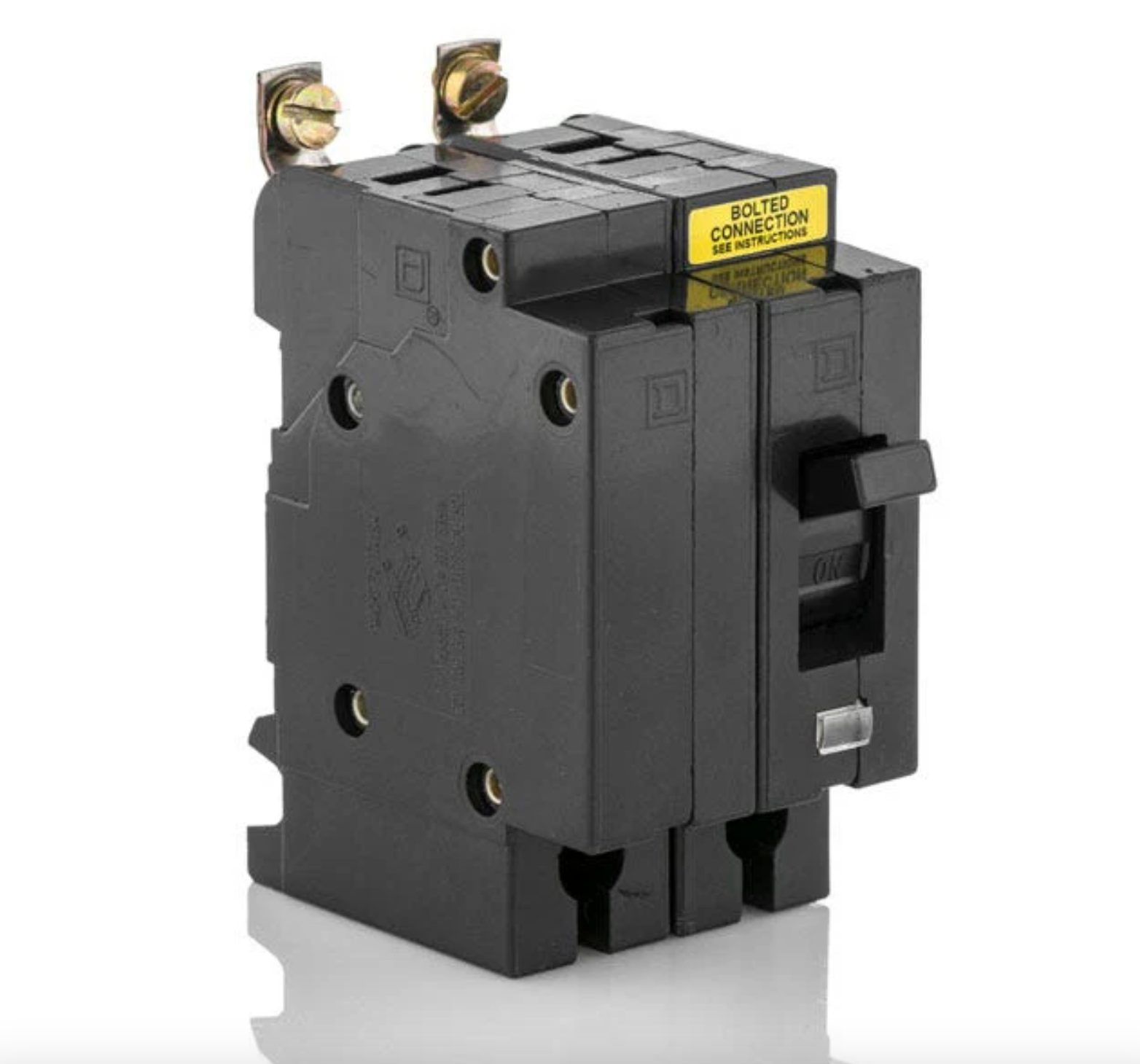

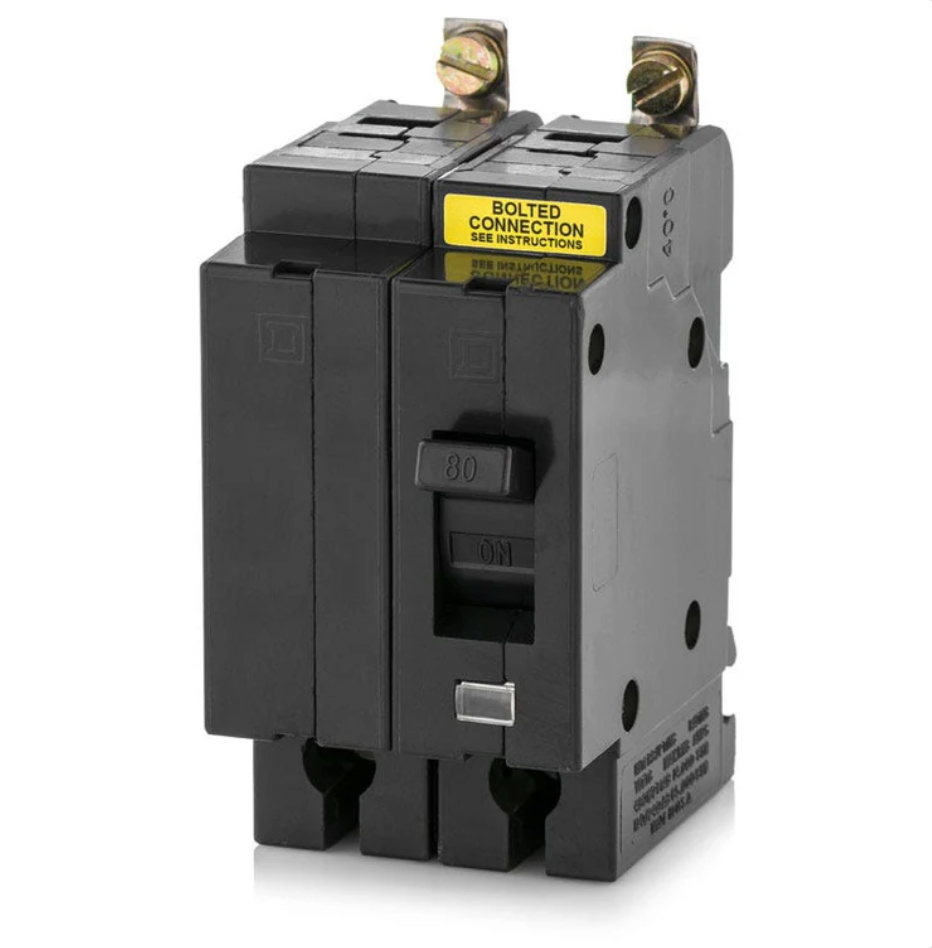

EHB24080 | Square D 80A 2-Pole 277/480VAC Thermal Magnetic Molded Case Circuit Breaker
- Regular price
- $1,859.00
- Sale price
- $1,859.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: EHB24080
Description
The Square D EHB24080 is a 2-pole thermal magnetic molded case circuit breaker designed for industrial and commercial power distribution systems. Rated at 80 amps and 277/480VAC, it offers reliable protection against overloads and short circuits. The EHB24080 features a bolt-on connection type for secure installation and ensures dependable performance with a 14kAIC interrupting capacity at 277V.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Square D |
| Category | Circuit Protection |
| Part Number | EHB24080 |
| Subcategory | Molded Case Circuit Breaker |
| Series | EHB |
| Frame Type | EH |
| Type | Thermal Magnetic |
| Poles | 2 |
| Amperage Rating | 80A |
| Voltage Rating | 277/480VAC |
| Interrupting Rating | 14kAIC @ 277V |
| Phase | Single Phase (1PH) |
| Connection Type | Bolt-On |
| Mounting Type | Panelboard / Bolt-On |
| Trip Functions | Long-Time and Instantaneous (LI) |
| Protection Type | Thermal Magnetic |
| Certifications | UL Listed, CSA Certified |
| Temperature Rating | 40°C |
| Operating Temperature Range | -25°C to +70°C (-13°F to +158°F) |
| Application | Commercial and Industrial Distribution Panels |
| Weight | 1 lb (0.45 kg) |
Information About EHB24080
The EHB24080 is part of Square D’s EHB Series, known for compact, durable, and high-performance circuit protection. This breaker uses a thermal magnetic trip mechanism that combines long-time and instantaneous trip functions for precise circuit management. Designed for bolt-on mounting, it fits securely in panelboards for efficient installation and service. Certified by UL and CSA, the EHB24080 ensures compliance with international safety standards, making it suitable for commercial and light industrial applications operating at 277/480VAC.
Key Features:
- Thermal Magnetic Protection: Combines thermal and magnetic trip functions for effective overload and fault protection.
- High Interrupting Capacity: Rated at 14kAIC at 277V for dependable performance under fault conditions.
- Compact 2-Pole Design: Supports single-phase applications requiring dual protection.
- Bolt-On Connection: Provides a secure, vibration-resistant mounting for stable operation.
- Certified Safety Standards: UL and CSA listed for verified electrical safety and quality.
- Temperature Rated to 40°C: Ensures consistent performance under standard ambient operating conditions.
- Industrial-Grade Durability: Built with reinforced materials for long-term reliability in demanding environments.
- Quick Installation: Streamlined design supports straightforward integration into panelboard systems.
The EHB24080 delivers the reliability and precision required for industrial and commercial circuit protection applications.
