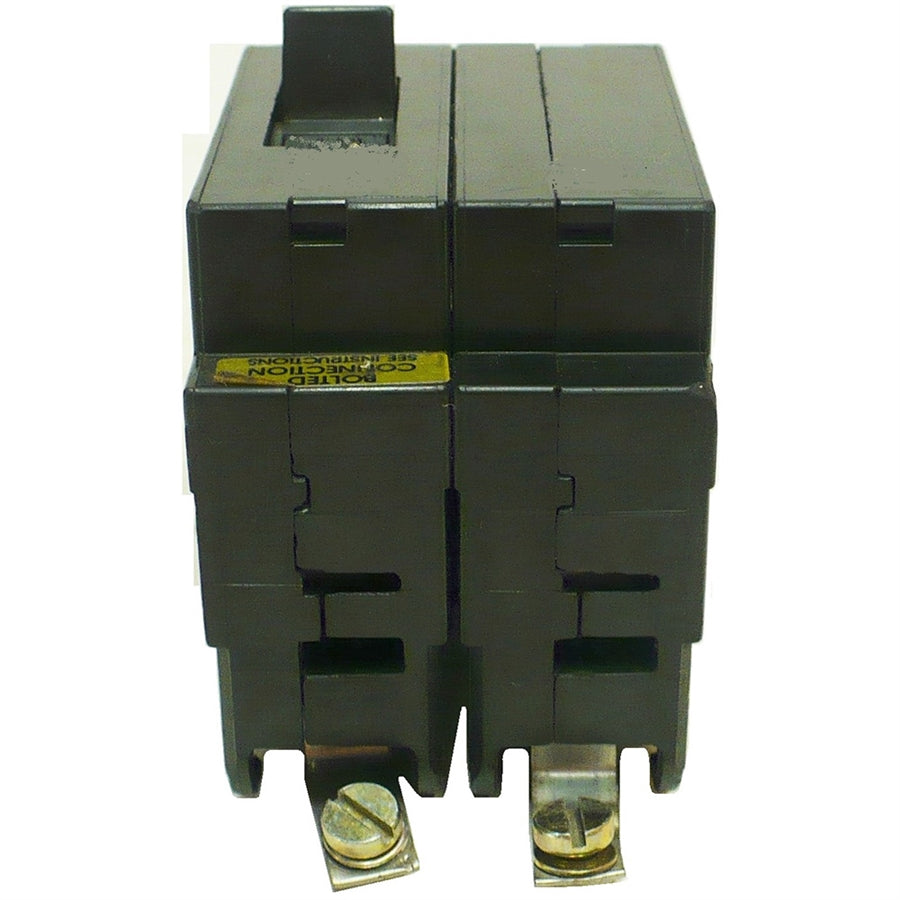

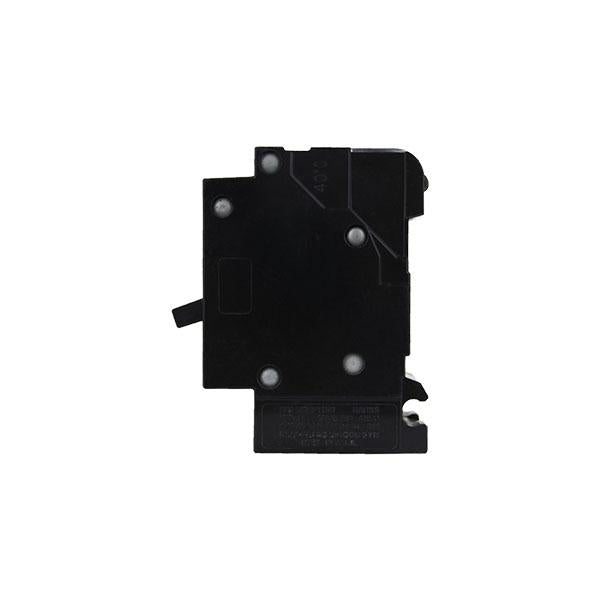

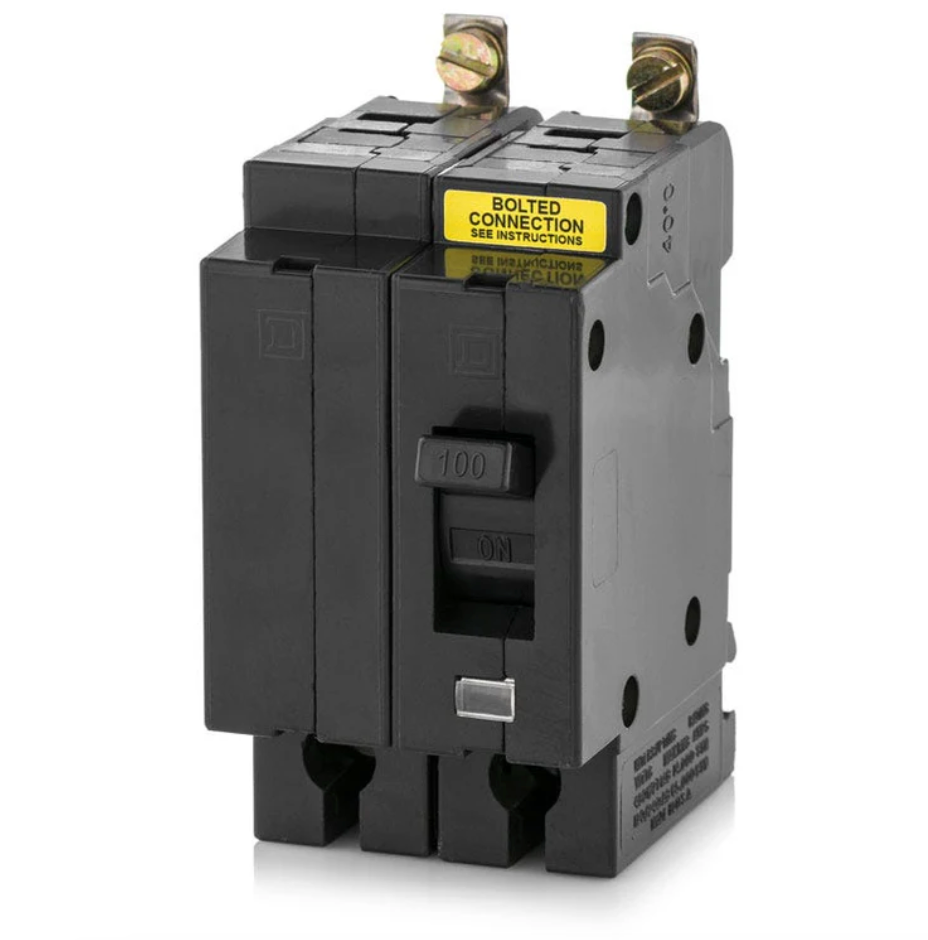

EHB24100 | Square D 2-Pole 100A 277/480V Thermal Magnetic Molded Case Circuit Breaker
- Regular price
- $1,878.00
- Sale price
- $1,878.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: EHB24100
Description
The Square D EHB24100 is a 2-pole thermal magnetic molded case circuit breaker designed for reliable overcurrent protection in commercial and industrial power systems. With a current rating of 100 amps and a voltage rating of 277/480 VAC, this breaker ensures safe and efficient operation under demanding electrical conditions. The EHB24100 features a bolt-on connection for secure installation and dependable performance in panelboard applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Square D |
| Category | Circuit Breakers |
| Part Number | EHB24100 |
| Subcategory | Molded Case Circuit Breakers |
| Series | EHB |
| Frame Type | EH |
| Amperage Rating | 100 A |
| Voltage Rating | 277/480 VAC |
| Poles | 2 |
| Phase | 1 |
| Mounting Type | Bolt-On |
| Interrupting Rating | 14 kAIC @ 277V; 65 kAIC @ 120/240V |
| Protection Type | Thermal Magnetic |
| Trip Functions | Long-Time and Instantaneous |
| Operating Frequency | 50/60 Hz |
| Temperature Rating | 40 °C |
| Approvals | UL, CSA |
| Dimensions (H x W x D) | 4.00 x 2.00 x 2.97 in |
| Application | Commercial and Industrial Power Distribution |
| Country of Origin | Mexico |
| Weight | 0.41 kg (0.9 lbs) |
Information About EHB24100
The EHB24100 is part of the Square D EHB series, known for its compact, high-performance molded case design. It incorporates a thermal-magnetic trip unit that provides both long-time and instantaneous trip functions to protect circuits from overloads and short circuits. This breaker is UL and CSA approved, ensuring compliance with international electrical standards. Designed for bolt-on mounting, it is ideal for industrial, commercial, and building distribution systems requiring reliable 2-pole protection at 100 amps and 277/480 VAC.
Key Features:
- Thermal-Magnetic Protection: Provides both overload (thermal) and short-circuit (magnetic) protection for enhanced safety.
- 2-Pole Configuration: Offers simultaneous disconnection of both circuit poles for balanced power control.
- Rated for 100 Amps: Delivers consistent performance and high current handling capacity.
- High Interrupting Rating: 14 kAIC at 277V ensures safe operation under fault conditions.
- Bolt-On Mounting: Enables secure and stable connection in panelboard installations.
- Durable Construction: Molded case housing enhances mechanical and thermal durability.
- UL and CSA Certified: Meets recognized safety and performance standards.
- Compact Frame Size: Saves space in dense electrical distribution systems.
The EHB24100 delivers the reliability and precision required for industrial and commercial electrical protection systems.
