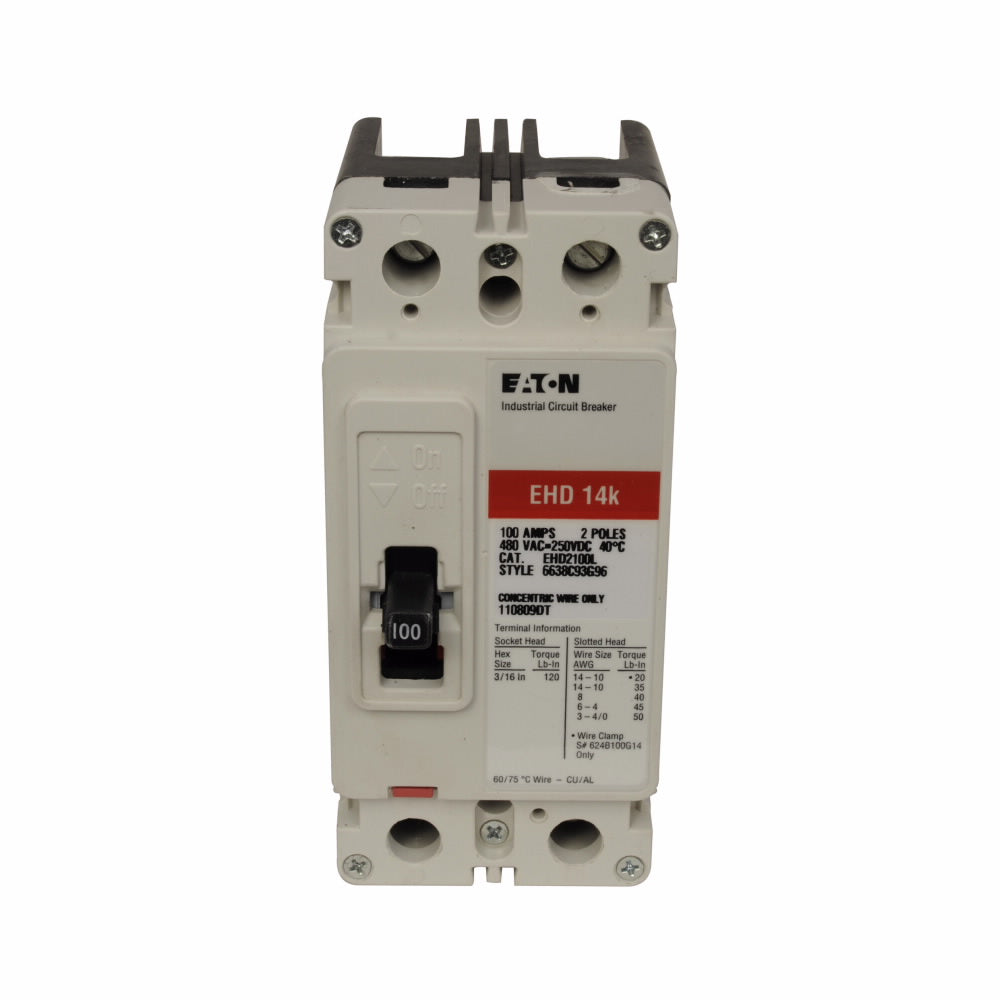

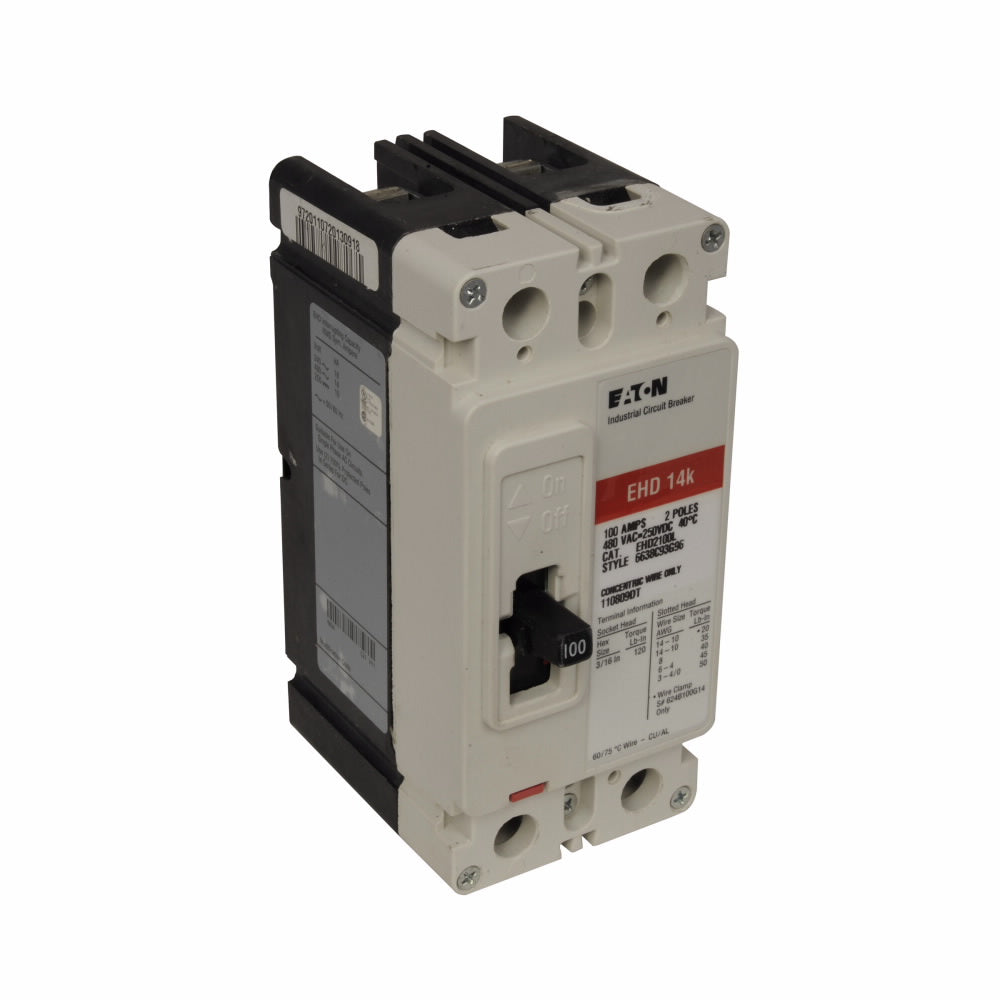

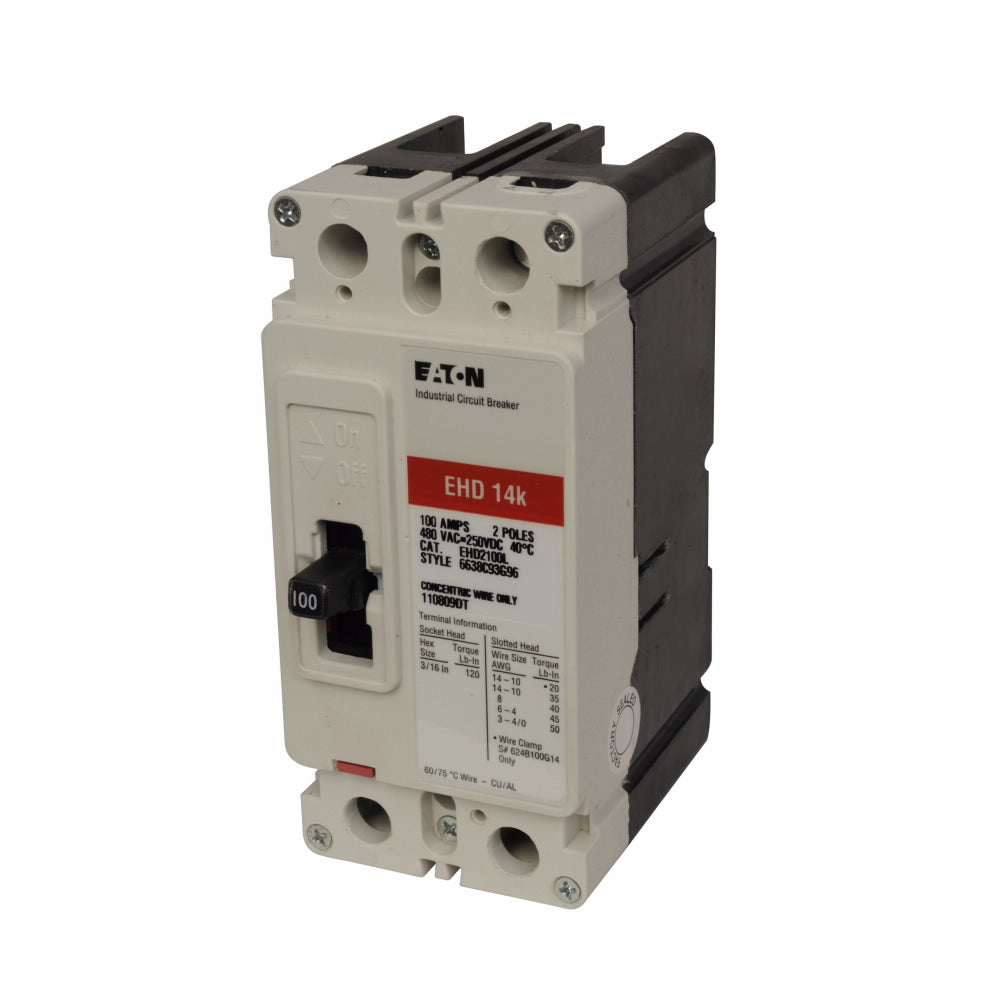

EHD2100L | Eaton 100A 2-Pole Molded Case Circuit Breaker, Series C, Thermal-Magnetic
- Regular price
- $499.00
- Sale price
- $499.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: EHD2100L
Description
The Eaton EHD2100L is a 2-pole molded case circuit breaker designed to provide dependable thermal-magnetic protection in single-phase electrical systems. This breaker supports 100-amp operation at up to 480VAC and is built for reliable fault interruption in commercial and industrial applications. The EHD2100L is suitable for installations requiring a compact, feed-thru device with standard interrupting capability.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Eaton / Cutler-Hammer |
| Category | Molded Case Circuit Breaker |
| Part Number | EHD2100L |
| Subcategory | 2-Pole Circuit Breaker |
| Series | Series C |
| Frame Type | F-Frame |
| Amperage Rating | 100A |
| Voltage Rating | 480VAC |
| Poles | 2 |
| Phase | 1-Phase |
| Interrupting Rating | 14kAIC @ 480VAC; 18kAIC @ 240VAC |
| Trip Type | Thermal-Magnetic |
| Trip Functions | Long-Time & Instantaneous |
| Connection Type | Feed-Thru |
| Terminals | Line and Load Side Lug |
| Certification | UL Listed |
| Dimensions (H × W × D) | 6 in × 2.75 in × 3.38 in |
| Country of Origin | Dominican Republic |
| Weight | 3.15 lb |
Information About EHD2100L
The EHD2100L is a Series C molded case circuit breaker engineered with an F-Frame structure for consistent performance and long service life. It integrates a fixed thermal-magnetic trip unit that supports both long-time and instantaneous response characteristics. The breaker is compatible with feed-thru installations and is widely used in panelboards, switchgear, and equipment distribution points. Its UL-listed construction and standardized terminal lugs ensure secure integration into new builds and retrofit applications.
Key Features:
- Series C Design: Built on Eaton’s proven Series C platform for compatibility with common industrial assemblies.
- Thermal-Magnetic Trip: Provides combined overload and short-circuit protection with fixed trip characteristics.
- Standard Interrupt Rating: Rated 14kAIC at 480VAC and 18kAIC at 240VAC for typical commercial system demands.
- Feed-Thru Connection: Simplifies installation with direct line-to-load wiring.
- F-Frame Construction: Compact frame size allows flexible integration into panelboard spaces.
- UL Listed Certification: Ensures compliance with safety and performance requirements.

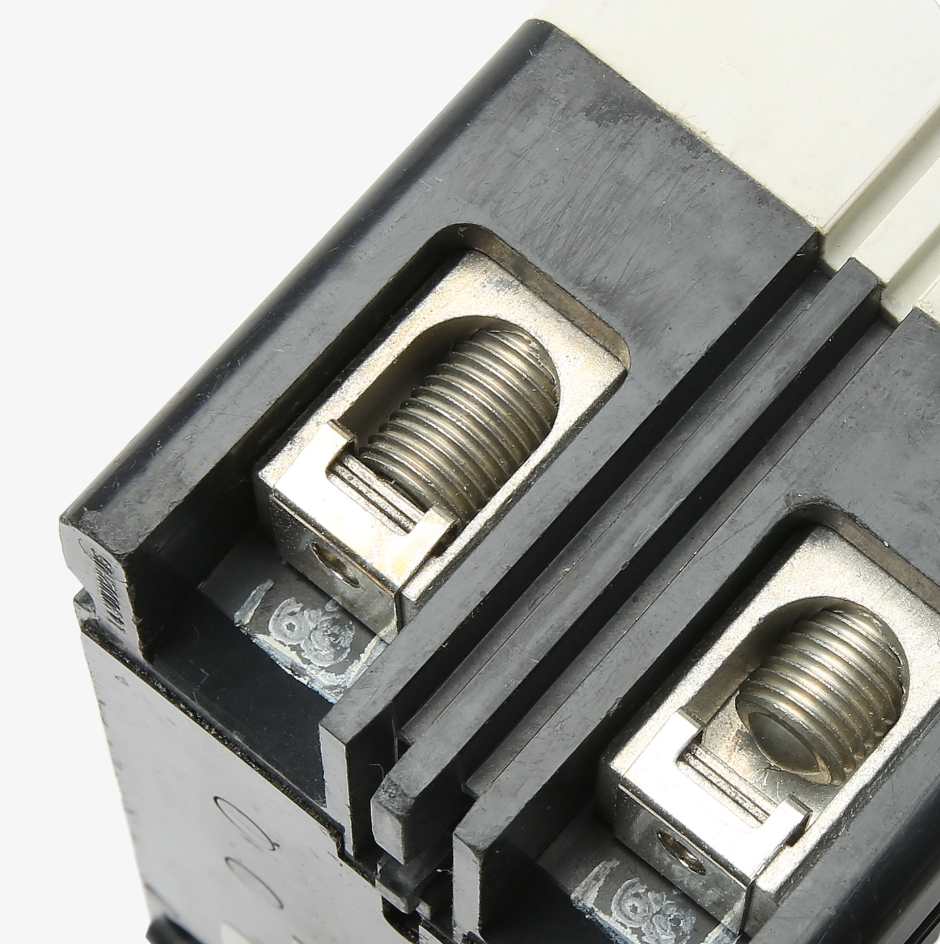

- Lug Terminations: Standard line and load side lugs support secure conductor attachment.
The EHD2100L delivers the reliability and precision required for molded case overcurrent protection in electrical distribution systems.
