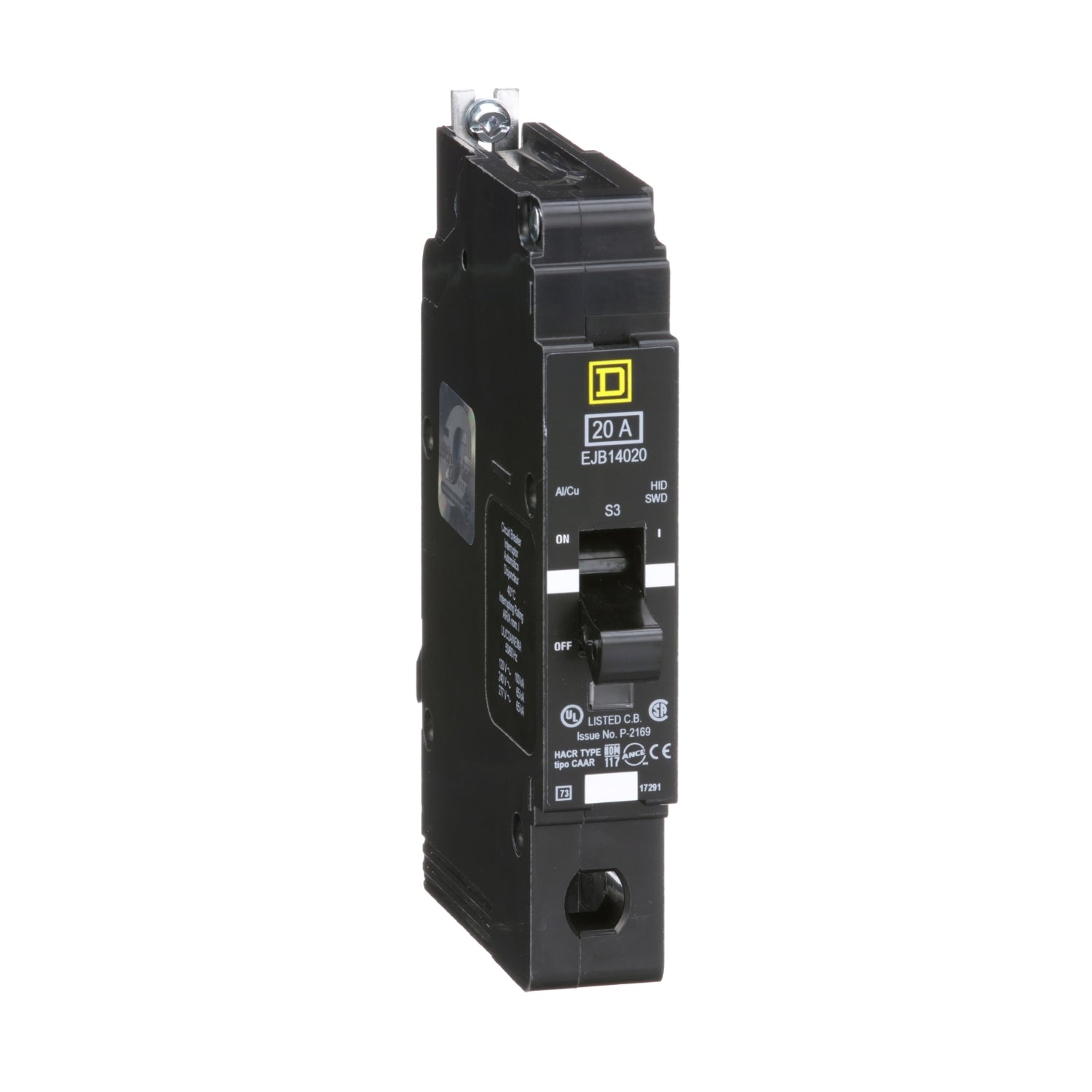

EJB14020 | Schneider Electric Mini Circuit Breaker
- Regular price
- $64.00
- Sale price
- $64.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: EJB14020
Description
EJB14020 is a Mini Circuit Breaker from the E-Frame series, designed for use in Square D NF Panelboards. These breakers are specifically engineered to deliver superior overload and short circuit protection. Equipped with a thermal-magnetic trip unit, they feature a signal indicator that alerts users when a trip occurs.
This particular breaker is Switching Duty rated, HID rated, and HACR rated. It has a current rating of 20A and operates at 277 VAC. With a maximum interrupt rating of 100 kA at 120 VAC, it ensures robust protection against faults. The breaker has a hold current of 270A, ensuring reliable tripping, and a trip current of 875A, the threshold for guaranteed tripping.
Technical Specifications
|
Part # |
EJB14020 |
|
Category |
Circuit Breaker |
|
Subcategory |
Molded Case Circuit Breaker |
|
Range of Product |
125 A Frame EDB-EGB-EJB |
|
Product or Component |
Miniature circuit-breaker |
|
Device short name |
EJB |
|
Module type |
E-Frame |
|
Trip unit rating |
875 A |
|
Line Rated Current |
20 A |
|
Maximum operating voltage |
277 V AC |
|
Electrical connection |
Lugs aluminium |
|
Holding Current |
270 A |
|
Local signalling |
Trip indicator |
|
Mounting Mode |
Bolt-on |
|
Number of poles |
1 |
|
Number of spaces |
1 |
|
Number of spaces required |
1 |
|
Product destination |
NF panelboard |
|
Protection Type |
Overload |
|
|
Short-circuit |
|
Trip unit technology |
Thermal-magnetic |
|
Breaking capacity code |
J |
|
Tightening torque |
30.09 lbf.in (3.4 N.m) 0.00…0.02 in² (2.5…16 mm²) (AWG 14...AWG 6) |
|
Height |
5.66 in (143.76 mm) |
|
Width |
0.98 in (24.89 mm) |
|
Depth |
4.05 in (102.87 mm) |
|
Net Weight |
2 lb(US) (0.91 kg) |
Information About EJB14020
The EJB14020 is a Mini Circuit Breaker designed for E-Frame applications, featuring a current rating of 20A and a single pole configuration. It operates at an electrical voltage of 277 VAC and boasts a maximum interrupt rating of 100 kA at 120 VAC, ensuring robust overload and short circuit protection.
Specifically engineered for use in Square D NF Panelboards, E-Frame Breakers are renowned for their effectiveness and reliability. Equipped with a thermal-magnetic trip unit and a signal indicator, these breakers promptly indicate circuit trips, enhancing safety and operational efficiency.
Additionally, the EJB14020 is Switching Duty rated, HID rated, and HACR rated, ensuring compatibility with various applications and environments. It features a hold current of 270A, ensuring optimal trip performance, and a trip current of 875A, guaranteeing reliable circuit interruption when necessary.
The breaker is calibrated for 40 degrees Celsius, offering consistent performance even in demanding conditions. Furthermore, a wide range of accessories is available to enhance functionality and adaptability to specific requirements.
