EJB34030 | Schneider Electric Mini Circuit Breaker
- Regular price
- $370.00
- Sale price
- $370.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: EJB34030
Description

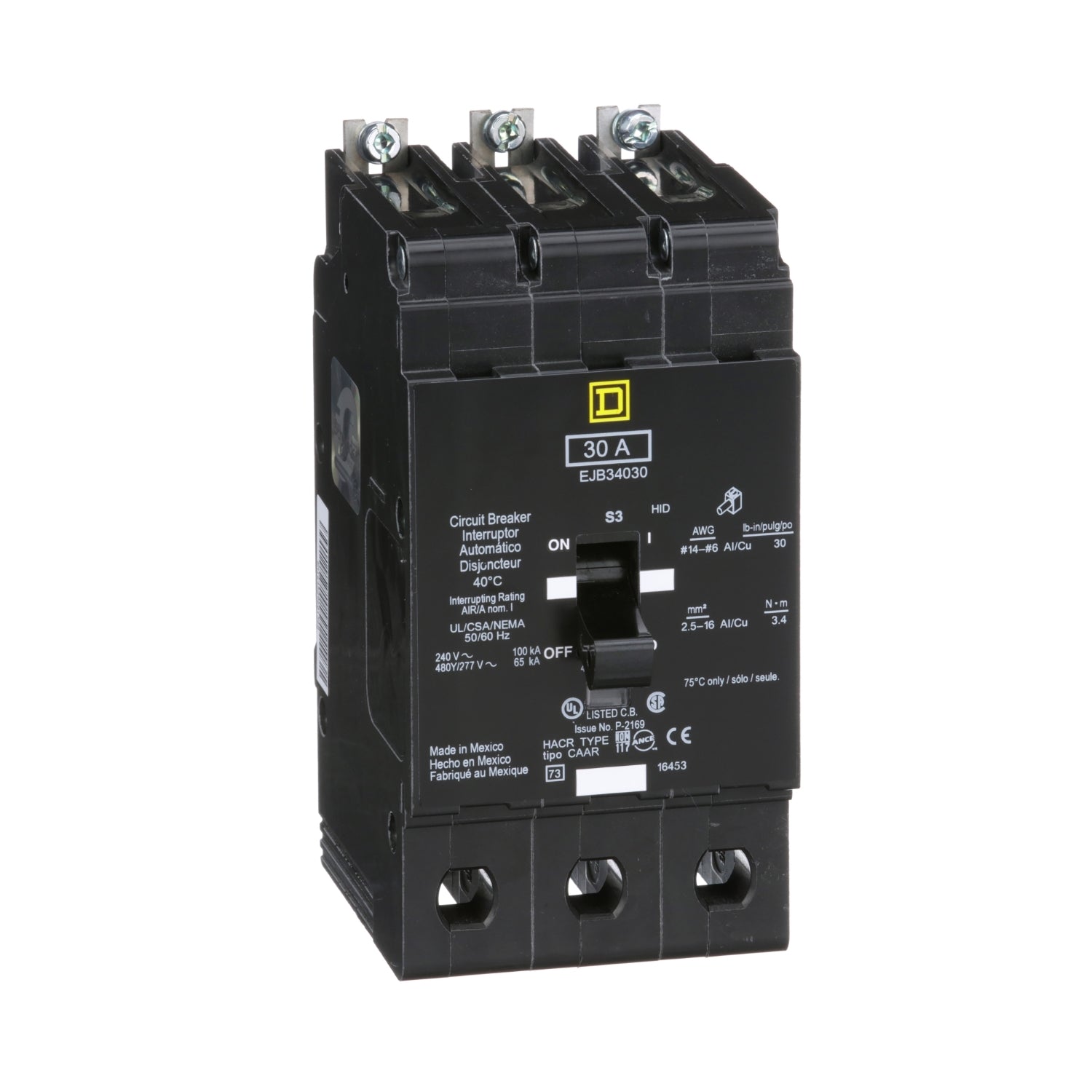

The EJB34030 Mini Circuit Breaker, part of the E-Frame series, is designed for use in Square D NF Panelboards, offering robust features tailored for lighting panelboard circuit protection. With a thermal-magnetic trip unit and a signal indicator for trip detection, it ensures effective overload and short circuit protection.
This specific breaker is HID rated and HACR rated, providing versatility for various applications. It features a 30A rating, 3 poles, and operates at 480Y/277 VAC voltage. It boasts a maximum interrupt rating of 100 kA at 120 VAC, ensuring reliable performance under high fault conditions.
Technical Specifications
|
Part # |
EJB34030 |
|
Category |
Circuit Breaker |
|
Subcategory |
Molded Case Circuit Breaker |
|
Range of Product |
125 A Frame EDB-EGB-EJB |
|
Product or Component Type |
Miniature circuit-breaker |
|
Device short name |
EJB |
|
Module type |
E-Frame |
|
Trip unit rating |
875 A |
|
Line Rated Current |
30 A |
|
Maximum Operating Voltage |
480Y/277 V AC |
|
Electrical connection |
Lugs aluminium |
|
Holding Current |
270 A |
|
Local Signaling |
Trip indicator |
|
Mounting Mode |
Bolt-on |
|
Number of poles |
3 |
|
Number of spaces |
3 |
|
Number of spaces required |
3 |
|
Product destination |
NF panelboard |
|
Trip unit technology |
Thermal-magnetic |
|
Breaking capacity code |
J |
|
Tightening torque |
30.09 lbf.in (3.4 N.m) 0.00…0.02 in² (2.5…16 mm²) (AWG 14...AWG 6) |
|
Height |
5.66 in (143.76 mm) |
|
Width |
2.94 in (74.68 mm) |
|
Depth |
4.05 in (102.87 mm) |
|
Net Weight |
4 lb(US) (1.81 kg) |
Information About EJB34030
The EJB34030 is a Mini Circuit Breaker belonging to the E-Frame series, designed for use in lighting panelboard applications, specifically tailored for Square D NF Panelboards. Renowned for their effectiveness and reliability, E-Frame breakers offer a diverse range of robust features, primarily focused on delivering superior overload and short circuit protection.
All E-Frame breakers are equipped with a thermal-magnetic trip unit, along with a signal indicator that promptly notifies users in the event of a trip occurrence. This specific model holds HID (High Intensity Discharge) and HACR (Heating, Air Conditioning, and Refrigeration) ratings, ensuring its suitability for diverse applications.
With a current rating of 30A and featuring 3 poles, the EJB34030 operates at an operational voltage of 480Y/277 VAC. It boasts a remarkable maximum interrupt rating of 100 kA at 120 VAC, showcasing its capability to handle high levels of electrical fault currents.
Manufacturer information
Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.
Description
The EJB34030 Mini Circuit Breaker, part of the E-Frame series, is designed for use in Square D NF Panelboards, offering robust features tailored for lighting panelboard circuit protection. With a thermal-magnetic trip unit and a signal indicator for trip detection, it ensures effective overload and short circuit protection.
This specific breaker is HID rated and HACR rated, providing versatility for various applications. It features a 30A rating, 3 poles, and operates at 480Y/277 VAC voltage. It boasts a maximum interrupt rating of 100 kA at 120 VAC, ensuring reliable performance under high fault conditions.
Technical Specifications
|
Part # |
EJB34030 |
|
Category |
Circuit Breaker |
|
Subcategory |
Molded Case Circuit Breaker |
|
Range of Product |
125 A Frame EDB-EGB-EJB |
|
Product or Component Type |
Miniature circuit-breaker |
|
Device short name |
EJB |
|
Module type |
E-Frame |
|
Trip unit rating |
875 A |
|
Line Rated Current |
30 A |
|
Maximum Operating Voltage |
480Y/277 V AC |
|
Electrical connection |
Lugs aluminium |
|
Holding Current |
270 A |
|
Local Signaling |
Trip indicator |
|
Mounting Mode |
Bolt-on |
|
Number of poles |
3 |
|
Number of spaces |
3 |
|
Number of spaces required |
3 |
|
Product destination |
NF panelboard |
|
Trip unit technology |
Thermal-magnetic |
|
Breaking capacity code |
J |
|
Tightening torque |
30.09 lbf.in (3.4 N.m) 0.00…0.02 in² (2.5…16 mm²) (AWG 14...AWG 6) |
|
Height |
5.66 in (143.76 mm) |
|
Width |
2.94 in (74.68 mm) |
|
Depth |
4.05 in (102.87 mm) |
|
Net Weight |
4 lb(US) (1.81 kg) |
Information About EJB34030
The EJB34030 is a Mini Circuit Breaker belonging to the E-Frame series, designed for use in lighting panelboard applications, specifically tailored for Square D NF Panelboards. Renowned for their effectiveness and reliability, E-Frame breakers offer a diverse range of robust features, primarily focused on delivering superior overload and short circuit protection.
All E-Frame breakers are equipped with a thermal-magnetic trip unit, along with a signal indicator that promptly notifies users in the event of a trip occurrence. This specific model holds HID (High Intensity Discharge) and HACR (Heating, Air Conditioning, and Refrigeration) ratings, ensuring its suitability for diverse applications.
With a current rating of 30A and featuring 3 poles, the EJB34030 operates at an operational voltage of 480Y/277 VAC. It boasts a remarkable maximum interrupt rating of 100 kA at 120 VAC, showcasing its capability to handle high levels of electrical fault currents.
Manufacturer information
Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.
