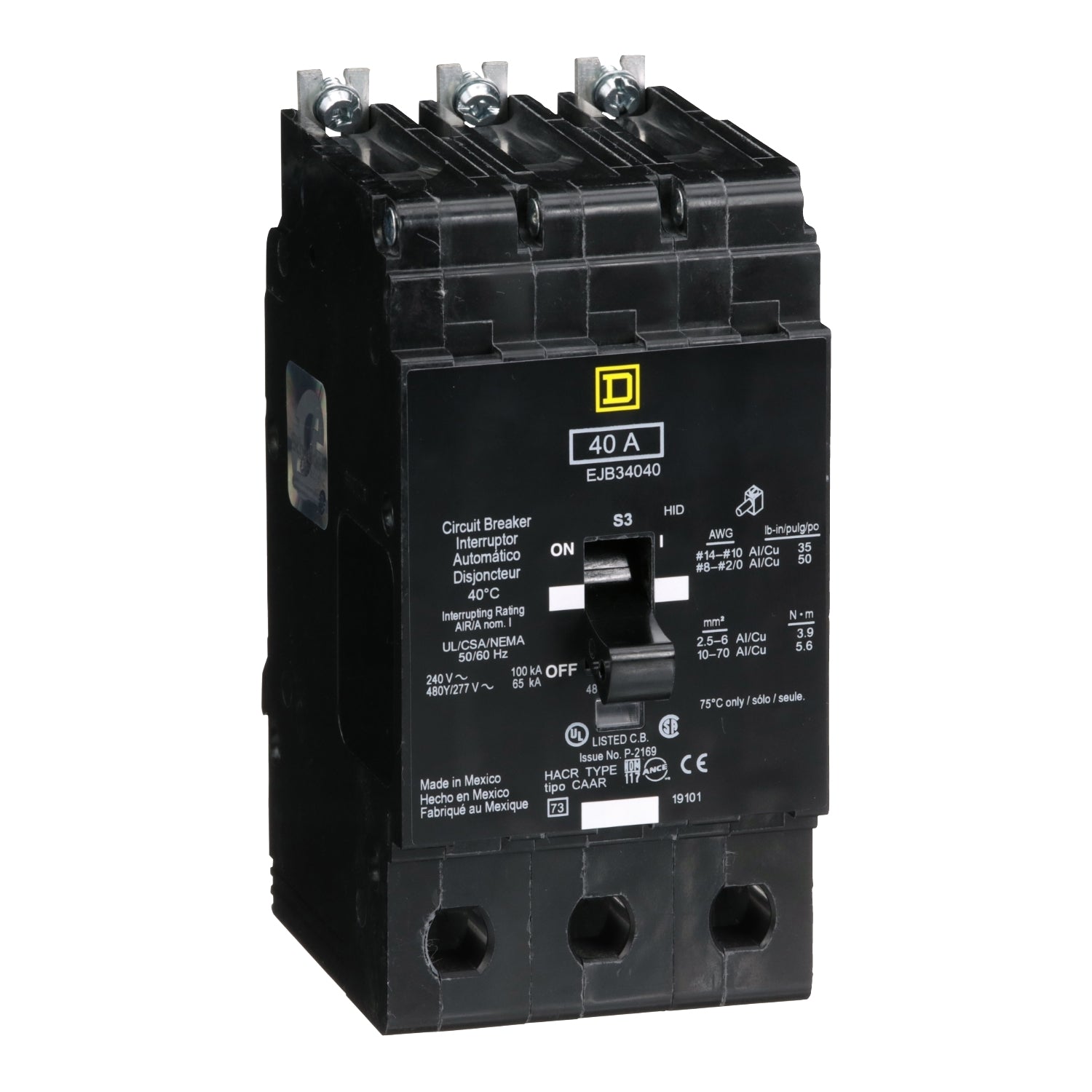

EJB34040 | Schneider Electric Mini Circuit Breaker
- Regular price
- $544.00
- Sale price
- $544.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: EJB34040
Description
Square D E-FRAME Miniature Circuit Breaker, Type EJB Molded Case, 277/480Y VAC, 40 A, 50/60 Hz Frequency, 65 kA Interrupt, E Frame, Thermal Magnetic Trip, 630 to 1800 A Trip, 3 Pole, 3 ph, Lug Connection, 14 to 2/0 AWG, 12 to 2/0 AWG Wire, Bolt-On Mounting, 40 deg C, 4.05 in L x 2.94 in W x 5.66 in H Dimensions, Thermoset Composite Resin.
Technical Specifications
| Brand | Schneider Electric |
| Part Number | EJB34040 |
| Category | Circuit Breaker |
| Subcategory | Molded Case Circuit Breaker |
| Amperage Rating | 40 A |
| Connection type | Lug |
| Dimensions | 4.05 in L x 2.94 in W x 5.66 in H |
| Frame | E |
| Frequency Rating | 50/60 Hz |
| Interrupt Rating | 65 kA |
| Material | Thermoset Composite Resin |
| Mounting type | Bolt-On |
| Number of Poles | 3 |
| Phase | 3 |
| Temperature Rating (Degrees F) | 40 deg C |
| Trip Range | 630 to 1800 A |
| Trip Type | Thermal Magnetic |
| Type | Type EJB, Type EJB Molded Case |
| Voltage Rating | 277/480Y VAC |
| Wire Size | 14 to 2/0 AWG, 12 to 2/0 AWG |
Information About EJB34040
The EJB34040 from Schneider Electric is a robust Mini Circuit Breaker designed for industrial applications requiring high-performance electrical protection. It features a sturdy thermoset composite resin construction, ensuring durability and reliability in harsh environments. With an amperage rating of 40 A and a voltage rating of 277/480Y VAC, this 3-pole, 3-phase breaker supports a wide range of electrical configurations.
The EJB34040 utilizes lug connections for secure and stable electrical connections, accommodating wire sizes from 14 to 2/0 AWG and 12 to 2/0 AWG. Its dimensions of 4.05 inches in length, 2.94 inches in width, and 5.66 inches in height, along with a bolt-on mounting type, facilitate straightforward installation in electrical panels or enclosures.
This breaker incorporates a thermal magnetic trip mechanism, with a trip range of 630 to 1800 A, providing effective protection against overloads and short circuits. It has an impressive interrupt rating of 65 kA, ensuring reliable performance in interrupting faults and maintaining electrical system safety.
Operating at a temperature rating of 40 degrees Celsius, the EJB34040 is designed to withstand typical industrial operating conditions. It conforms to Type EJB Molded Case standards, making it suitable for diverse industrial applications where robust circuit protection is essential.
Manufacturer information
Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.
