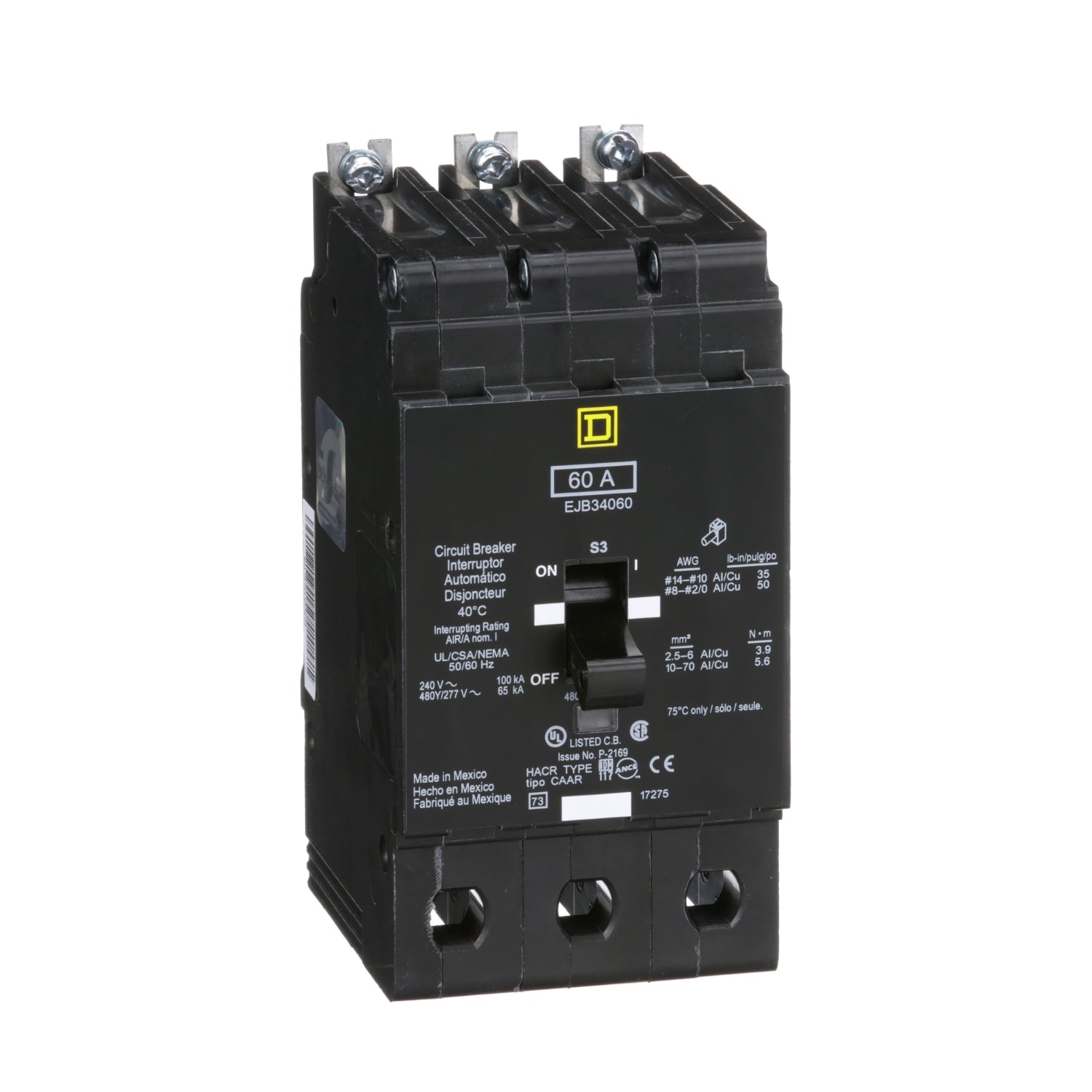

EJB34060 | Schneider Electric Mini Circuit Breaker
- Regular price
- $512.00
- Sale price
- $512.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: EJB34060
Description
The EJB34060 Mini Circuit Breaker belongs to the E-Frame series designed for Square D NF Panelboards, offering robust features for reliable overload and short circuit protection. It features a thermal-magnetic trip unit with a trip indicator for quick identification of tripped conditions. HACR rated, this breaker is configured as a 60A, 3-pole device operating at 480Y/277 VAC. It provides a maximum interrupt rating of 100 kA at 120 VAC, with a hold current of 630A and a trip current of 1800A. Calibrated for operation at 40 degrees C, the breaker supports various accessories for enhanced functionality.
Technical Specifications
|
Part Number |
EJB34060 |
|
Manufacturer |
Schneider Electric / Square D |
|
Family |
EJB Series |
|
Pole |
3 |
|
Amp |
60 |
|
Volt |
480 |
|
Phase |
3 |
|
Category |
Molded Case / 3-Pole |
|
Connection |
Bolt-On |
|
Type |
EJB |
|
Functions |
LI - Long-Time and Instantaneous |
|
Protection |
Thermal Magnetic |
|
AIC Ratings |
65kA@480V |
Information About EJB34060
The EJB34060 Mini Circuit Breaker, part of the E-Frame series from Schneider Electric / Square D, is specifically engineered for lighting panelboard applications within Square D NF Panelboards. Known for their reliability and effectiveness, E-Frame breakers offer robust features tailored for superior overload and short circuit protection.
Key features include a thermal-magnetic trip unit and a trip signal indicator that activates upon a trip event. This breaker is HACR (Heating, Air Conditioning, and Refrigeration) rated, ensuring compatibility with a wide range of applications in these sectors.
Rated at 60A and 3 poles, the EJB34060 operates at an operational voltage of 480Y/277 VAC. It boasts a maximum interrupt rating of 100 kA at 120 VAC, making it capable of handling significant electrical fault conditions. The breaker's hold current stands at 630A, ensuring reliable performance under load conditions, while the trip current is set at 1800A, guaranteeing trip operation when necessary.
Designed to operate in environments calibrated for up to 40 degrees Celsius, this breaker is equipped with bolt-on connections for secure installation. Its design allows for the incorporation of various accessories, enhancing its versatility and functionality within different electrical configurations.
Manufacturer information
Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.
