Part #: EK1100 Manufactured by: BECKHOFF
Regular price
$159.00
Sale price
$159.00
Regular price
6 in Stock
Condition: New-Surplus Original Box
Shipping calculated at checkout.
Product Overview
BECKHOFF EK1100 EtherCAT Coupler, E-BUS TERMINAL, RJ45 CONNECTION, 24 VDC, MAX 4.2 GB ADDRESSABLE I/O POINT, -25 TO +60 DE...  Read more
We accept:
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Meta Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa
warranty
IQElectro 2-Year Warranty
Warranty for Product #: EK1100
IQElectro offers a free 2-year warranty on all products. You can trust that every purchase is a reliable investment in the future of your company. Warranty Terms
2-3 Day Free Shipping
Packed Ready to Ship
24/7 Expert Support
Return within 30-Days
IQElectro LLC BBB Business Review
IQElectro is Not an authorized distributor for BECKHOFF
Original Manufacturer's Warranty Not Covered, This Product is SURPLUS.

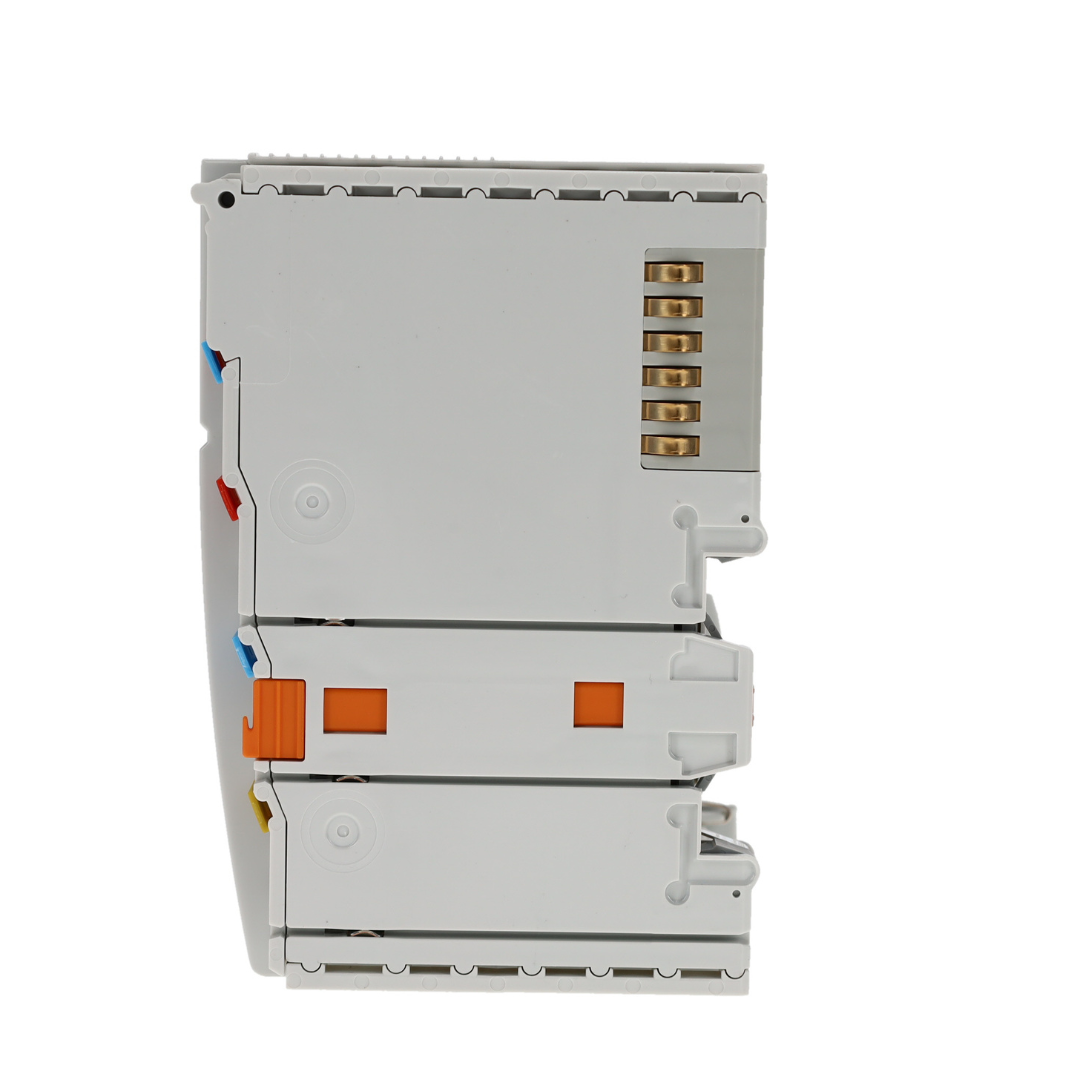

EK1100 | BECKHOFF EK 1100 Ether CAT-Couple

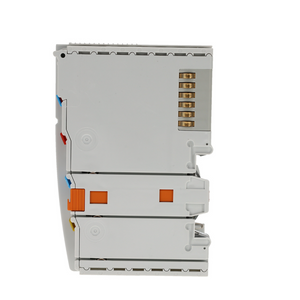

EK1100 | BECKHOFF EK 1100 Ether CAT-Couple

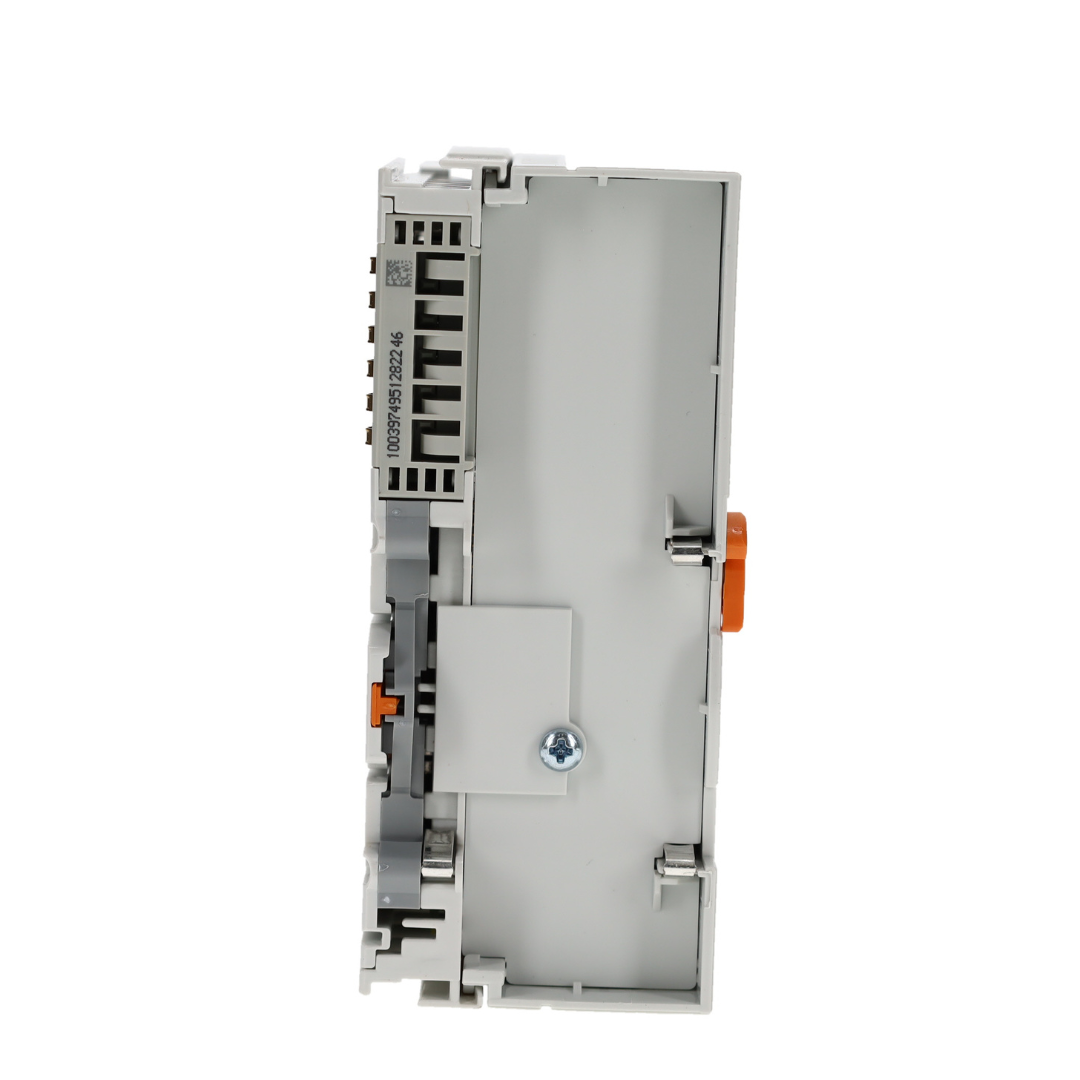

EK1100 | BECKHOFF EK 1100 Ether CAT-Couple
EK1100 | BECKHOFF EK 1100 Ether CAT-Couple
EK1100 | BECKHOFF EK 1100 Ether CAT-Couple
    EK1100 | BECKHOFF EK 1100 Ether CAT-Couple
    EK1100 | BECKHOFF EK 1100 Ether CAT-Couple
    EK1100 | BECKHOFF EK 1100 Ether CAT-Couple
    EK1100 | BECKHOFF EK 1100 Ether CAT-Couple
    EK1100 | BECKHOFF EK 1100 Ether CAT-Couple
EK1100 | BECKHOFF EK 1100 Ether CAT-Couple
EK1100 | BECKHOFF EK 1100 Ether CAT-Couple
EK1100 | BECKHOFF EK 1100 Ether CAT-Couple
EK1100 | BECKHOFF EK 1100 Ether CAT-Couple
EK1100 | BECKHOFF EK 1100 Ether CAT-Couple

Product Description P/N: EK1100

Description / Specifications

Description

The EK1100 coupler connects EtherCAT with the EtherCAT Terminals (ELxxxx). One station consists of an EK1100 coupler, any number of EtherCAT Terminals and a bus end terminal. The coupler converts the passing telegrams from Ethernet 100BASE-TX to E-bus signal representation.The coupler is connected to the network via the upper Ethernet interface. The lower RJ45 socket may be used to connect further EtherCAT devices in the same strand. In the EtherCAT network, the EK1100 coupler can be installed anywhere in the Ethernet signal transfer section (100BASE-TX) – except directly at the switch. The couplers EK9000 and EK1000 are suitable for installation at the switch.



Technical Specifications



Condition New / Never Used Surplus
Manufacturer BECKHOFF
Type EtherCAT Coupler
Model EK1100
Current Supply E-bus 24 V DC (-15%/20%)
Current Supply E-bus 2000 mA
Power Contacts 24 V DC
Current Power Contacts 10 A
Electrical Isolation 500 V
Distance Between Stations Max. 100 m (100BASE-TX)
Bus interface 2 x RJ45
Delay 1 µs
Transfer Rate 100 Mbit/s
Protection IP20
Operating Temp.  -25 … 60 °C





Information About EK1100

The EK1100 EtherCAT Coupler is the link between the EtherCAT protocol at fieldbus level and the EtherCAT Terminals. The coupler converts the passing telegrams from Ethernet 100BASE-TX to E-bus signal representation. A station consists of a coupler and any number of EtherCAT Terminals that are automatically detected and individually displayed in the process image.

Special features:

Connection technology: 2 x RJ45 socket

Connection lengths: up to 100 m

Number of EtherCAT Terminals in the overall system: up to 65,535

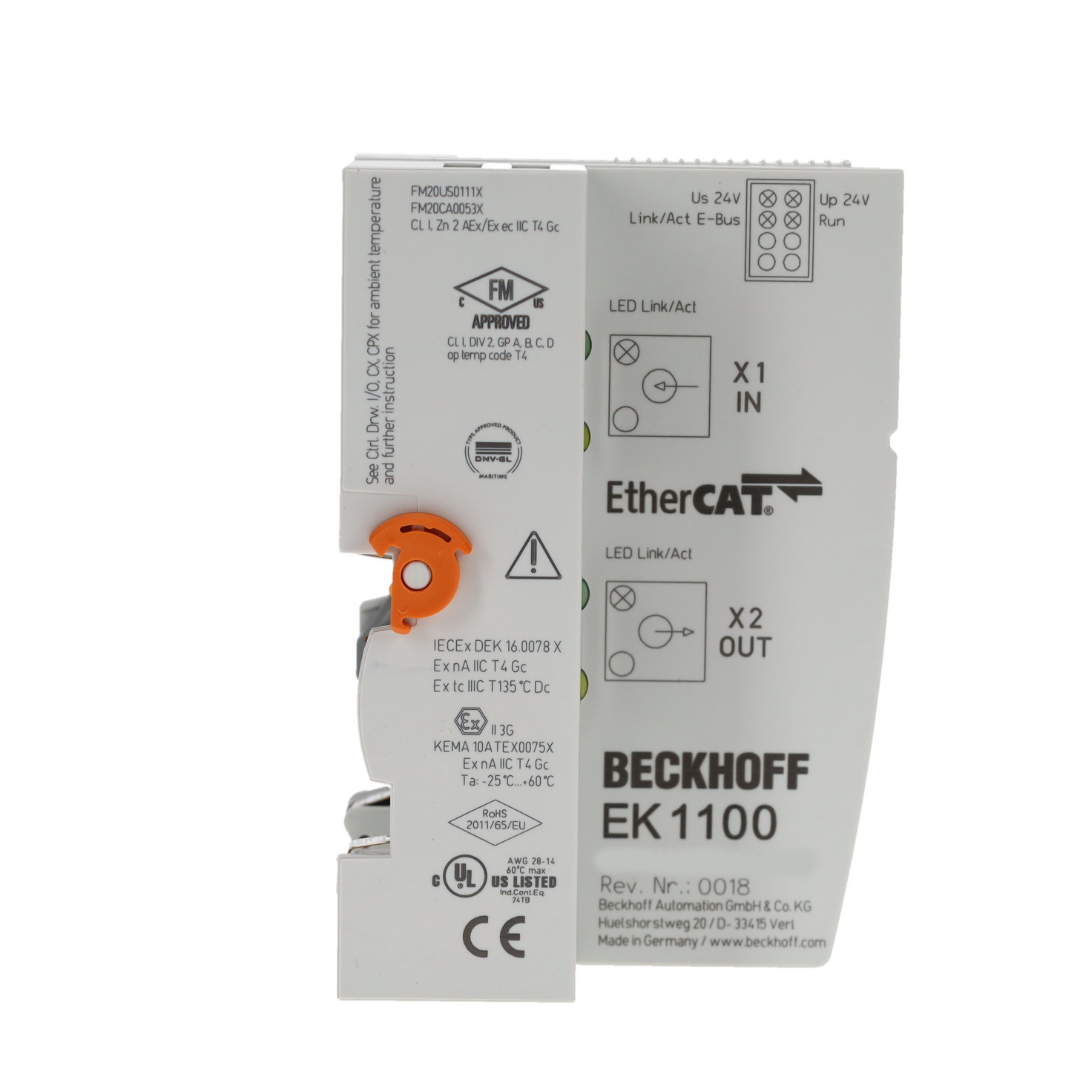

The EK1100 has two RJ45 sockets. The upper Ethernet interface is used to connect the coupler to the network; the lower socket serves for the optional connection of further EtherCAT devices in the same segment. In addition, an EtherCAT junction or an EtherCAT extension can be used for the extension or for setting up a line or star topology.

The system and field supply, each 24 V DC, is provided directly at the coupler. The attached EtherCAT Terminals are supplied with the current required for communication from the supplied system voltage. The coupler can supply a maximum of 5 V and 2 A. If higher current is required, power feed terminals such as the EL9410 have to be integrated. The field supply is forwarded to the individual I/O components via the power contacts with up to 10 A.

In the EtherCAT network, the EK1100 can be installed anywhere in the Ethernet signal transfer section (100BASE-TX) – except directly at the switch. The EK9000 and EK1000 couplers are suitable for use at the switch.


Manufacturer information

Beckhoff Automation is a German manufacturer of open automation systems, including industrial PCs, I/O and fieldbus components, drive technology, automation software, and hardware for machine vision. Beckhoff is known for its innovative and reliable automation technology, which is used in a wide range of industries. The company is committed to providing customers with the best possible automation solutions to help them succeed in their businesses.

IQElectro is not an authorized distributor.
QElectro LLC (IQElectro) is NOT an Authorized Distributor or in any way affiliated with Rockwell Automation, Siemens, or any other Manufacturers. IQElectro is NOT an Authorized Dealer of this product. The product may be of older version, date codes, or design than that available from authorized dealers. As IQElectro is not an authorized dealer of this product, the Original Manufacturer's Warranty and Support DO NOT apply. IQElectro sells SURPLUS only and DOES NOT SELL SOFTWARE or FIRMWARE licenses For more detailed information, please refer to the full version of our disclaimer policy Disclaimer Policy.
Description / Specifications

Description

The EK1100 coupler connects EtherCAT with the EtherCAT Terminals (ELxxxx). One station consists of an EK1100 coupler, any number of EtherCAT Terminals and a bus end terminal. The coupler converts the passing telegrams from Ethernet 100BASE-TX to E-bus signal representation.The coupler is connected to the network via the upper Ethernet interface. The lower RJ45 socket may be used to connect further EtherCAT devices in the same strand. In the EtherCAT network, the EK1100 coupler can be installed anywhere in the Ethernet signal transfer section (100BASE-TX) – except directly at the switch. The couplers EK9000 and EK1000 are suitable for installation at the switch.



Technical Specifications



Condition New / Never Used Surplus
Manufacturer BECKHOFF
Type EtherCAT Coupler
Model EK1100
Current Supply E-bus 24 V DC (-15%/20%)
Current Supply E-bus 2000 mA
Power Contacts 24 V DC
Current Power Contacts 10 A
Electrical Isolation 500 V
Distance Between Stations Max. 100 m (100BASE-TX)
Bus interface 2 x RJ45
Delay 1 µs
Transfer Rate 100 Mbit/s
Protection IP20
Operating Temp.  -25 … 60 °C





Information About EK1100

The EK1100 EtherCAT Coupler is the link between the EtherCAT protocol at fieldbus level and the EtherCAT Terminals. The coupler converts the passing telegrams from Ethernet 100BASE-TX to E-bus signal representation. A station consists of a coupler and any number of EtherCAT Terminals that are automatically detected and individually displayed in the process image.

Special features:

Connection technology: 2 x RJ45 socket

Connection lengths: up to 100 m

Number of EtherCAT Terminals in the overall system: up to 65,535

The EK1100 has two RJ45 sockets. The upper Ethernet interface is used to connect the coupler to the network; the lower socket serves for the optional connection of further EtherCAT devices in the same segment. In addition, an EtherCAT junction or an EtherCAT extension can be used for the extension or for setting up a line or star topology.

The system and field supply, each 24 V DC, is provided directly at the coupler. The attached EtherCAT Terminals are supplied with the current required for communication from the supplied system voltage. The coupler can supply a maximum of 5 V and 2 A. If higher current is required, power feed terminals such as the EL9410 have to be integrated. The field supply is forwarded to the individual I/O components via the power contacts with up to 10 A.

In the EtherCAT network, the EK1100 can be installed anywhere in the Ethernet signal transfer section (100BASE-TX) – except directly at the switch. The EK9000 and EK1000 couplers are suitable for use at the switch.


Manufacturer information

Beckhoff Automation is a German manufacturer of open automation systems, including industrial PCs, I/O and fieldbus components, drive technology, automation software, and hardware for machine vision. Beckhoff is known for its innovative and reliable automation technology, which is used in a wide range of industries. The company is committed to providing customers with the best possible automation solutions to help them succeed in their businesses.
