Part #: EK1101 Manufactured by: Beckhoff
Regular price
$327.00
Sale price
$327.00
Regular price
3 in Stock
Condition: New-Surplus Original Box
Shipping calculated at checkout.
Product Overview

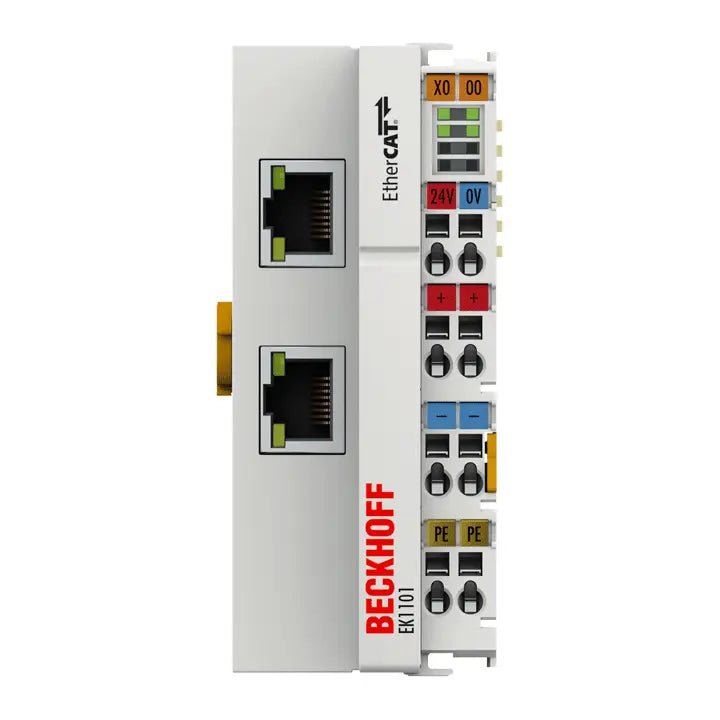

Beckhoff EK1101 EtherCAT Coupler EK1101, ID switch for E-bus terminals, cv 24VDC.
