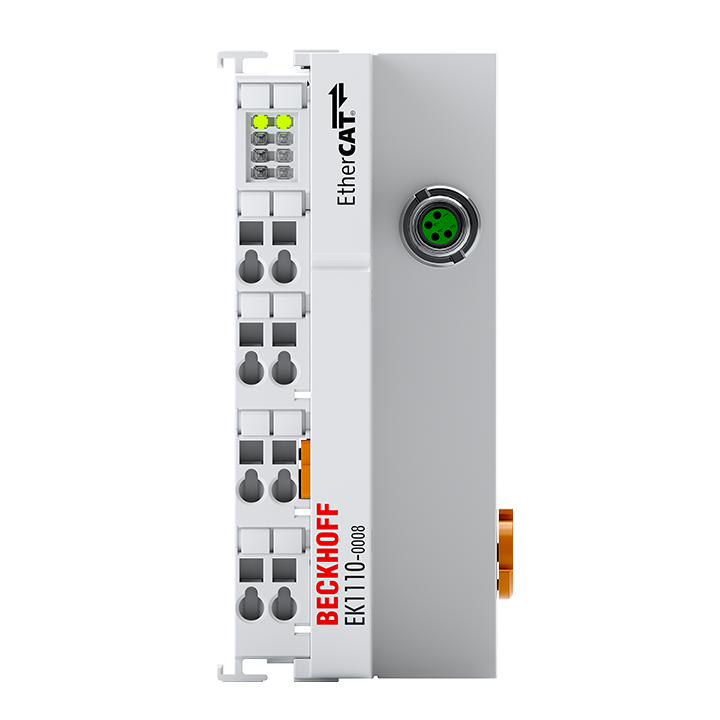

Product Description P/N: EK1110-0008
Description
The Beckhoff EK1110-0008 EtherCAT Extension is designed to extend EtherCAT networks in line topology configurations using an M8 connection interface. It converts E-bus signals into 100BASE-TX Ethernet signals, enabling connection of additional EtherCAT devices or segments up to 100 meters away without configuration.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Beckhoff |
| Category | Industrial Communication |
| Part Number | EK1110-0008 |
| Subcategory | EtherCAT Extensions |
| Function | Extension of EtherCAT network with M8 connection |
| Task Within System | Converts E-bus to 100BASE-TX Ethernet for network extension |
| Data Transfer Medium | Ethernet/EtherCAT cable (min. Cat.5), shielded |
| Protocol | EtherCAT (any protocol supported) |
| Data Transfer Rate | 100 Mbit/s |
| Bus Interface | 1 x M8 socket, shielded, screw type |
| Maximum Distance | 100 m (100BASE-TX) |
| Delay | Approx. 1 µs |
| Power Supply | From E-bus |
| Current Consumption (E-bus) | Typ. 130 mA |
| Electrical Isolation | 500 V (supply voltage/Ethernet) |
| Configuration | Not required |
| EMC Compliance | EN 61000-6-2 / EN 61000-6-4 |
| Operating Temperature | -25…+60°C |
| Storage Temperature | -40…+85°C |
| Relative Humidity | 95%, non-condensing |
| Enclosure Protection | IP20 |
| Mounting | DIN rail |
| Weight | 50 g (approx. 0.11 lbs) |
Information About EK1110-0008
The EK1110-0008 belongs to Beckhoff’s EtherCAT infrastructure series, enabling seamless expansion of EtherCAT segments through M8 connectivity. It connects directly to the end of an EtherCAT Terminal segment or Embedded PC (CX series), extending communication lines up to 100 meters using a standard Ethernet cable with an M8 connector. The device performs continuous conversion from E-bus signals to 100BASE-TX Ethernet format, maintaining signal integrity and synchronization across extended networks. With power supplied via the E-bus and no configuration required, the EK1110-0008 simplifies network design and supports consistent cabling for both IP20 and IP67 system environments.
Key Features:
- EtherCAT Line Extension: Allows easy expansion of EtherCAT networks using line topology, linking additional terminals or remote devices.
- M8 Socket Interface: Equipped with a shielded M8 connector for reliable Ethernet cabling in industrial environments.
- Signal Conversion: Continuously converts E-bus signals to 100BASE-TX Ethernet representation for smooth data transmission.
- Long-Distance Communication: Supports connection lengths up to 100 meters, maintaining high network integrity and low latency.
- Maintenance-Free Operation: Requires no configuration or parameterization, reducing setup time and simplifying commissioning.
- High-Speed Data Rate: Operates at 100 Mbit/s for fast, deterministic EtherCAT communication.
- Electrical Isolation: 500 V isolation between supply voltage and Ethernet ensures system protection and reliability.
- Robust and Compact Design: IP20-rated, lightweight housing suitable for DIN-rail installation in control cabinets.
The EK1110-0008 delivers the reliability and precision required for efficient EtherCAT network expansion and industrial communication continuity.
