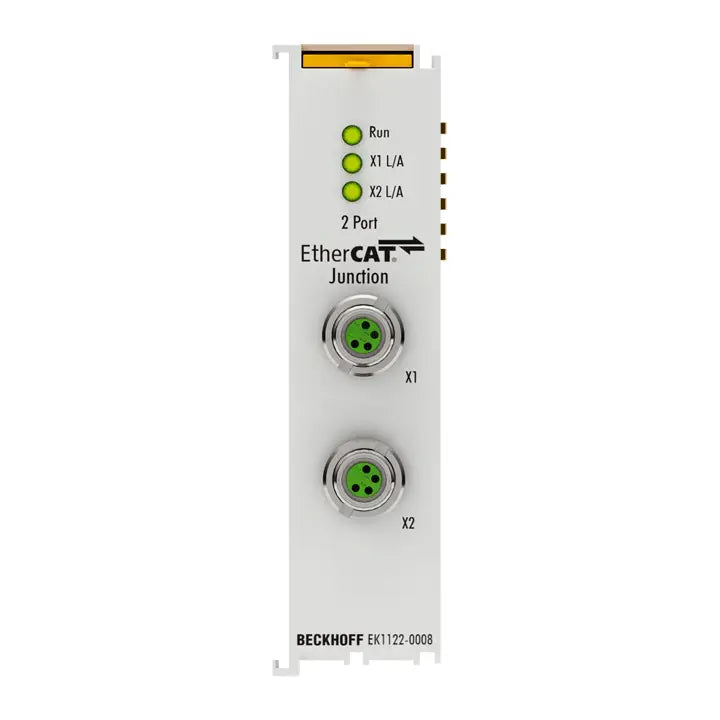

EK1122-0008 | Beckhoff 2-Port EtherCAT Junction with M8 Connection
- Regular price
- $169.00
- Sale price
- $169.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: EK1122-0008
Description
The Beckhoff EK1122-0008 is a compact 2-port EtherCAT junction that provides flexible branching within EtherCAT networks. Equipped with M8 shielded connections, it supports 100 Mbit/s data rates with minimal delay, ensuring reliable system performance.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Beckhoff |
| Category | Fieldbus & Communication Interfaces |
| Part Number | EK1122-0008 |
| Subcategory | EtherCAT Junctions |
| Protocol | EtherCAT |
| Task in EtherCAT System | Coupling of EtherCAT junctions |
| Data Transfer Medium | Ethernet/EtherCAT cable, shielded, Cat.5 or higher |
| Data Transfer Rate | 100 Mbit/s (100BASE-TX) |
| Station Distance | Up to 100 m |
| Delay | Approx. 1 µs |
| Configuration | Not required |
| Bus Interface | 2 × M8, shielded |
| Power Supply | From E-bus |
| Current Consumption | Typ. 220 mA |
| Protection Rating | IP20 |
| Operating Temperature | -25…+60 °C |
| Storage Temperature | -40…+85 °C |
| Relative Humidity | 95%, no condensation |
| EMC Compliance | EN 61000-6-2 / EN 61000-6-4 |
| Vibration/Shock Resistance | EN 60068-2-6 / EN 60068-2-27 |
| Dimensions (W × H × D) | 24 mm × 100 mm × 52 mm |
| Installation Position | Variable |
| Weight | Approx. 65 g |
Information About EK1122-0008
The EK1122-0008 is part of Beckhoff’s EtherCAT I/O system, serving as a 2-port junction for flexible network structuring. By allowing star, line, or tree topologies, it provides high adaptability in automation system design. The M8 shielded connections ensure robust and interference-free data transfer, while the module operates at a full 100 Mbit/s with only ~1 µs delay. Its IP20 housing, compact form factor, and passive configuration-free design make it a reliable solution for distributed EtherCAT architectures.
Key Features:
-
2-Port EtherCAT Junction: Provides branching within EtherCAT networks for star, line, or tree topologies.
-
High-Speed Communication: Operates at 100 Mbit/s with up to 100 m station distance for robust networking.
-
Low Latency Performance: Introduces only ~1 µs signal delay, ensuring high system responsiveness.
-
M8 Shielded Interfaces: Equipped with 2 × M8 connectors for durable and interference-free connections.
-
Power Supply from E-bus: Eliminates external wiring by drawing supply directly from the EtherCAT system.
-
Industrial-Grade Reliability: Built to meet EMC, vibration, and shock resistance standards for harsh environments.
-
Compact Construction: Slim 24 mm design saves space in control cabinets and distributed installations.
The EK1122-0008 delivers the reliability and precision required for flexible EtherCAT network expansion in industrial automation.
