Product Description P/N: EK9300
Description

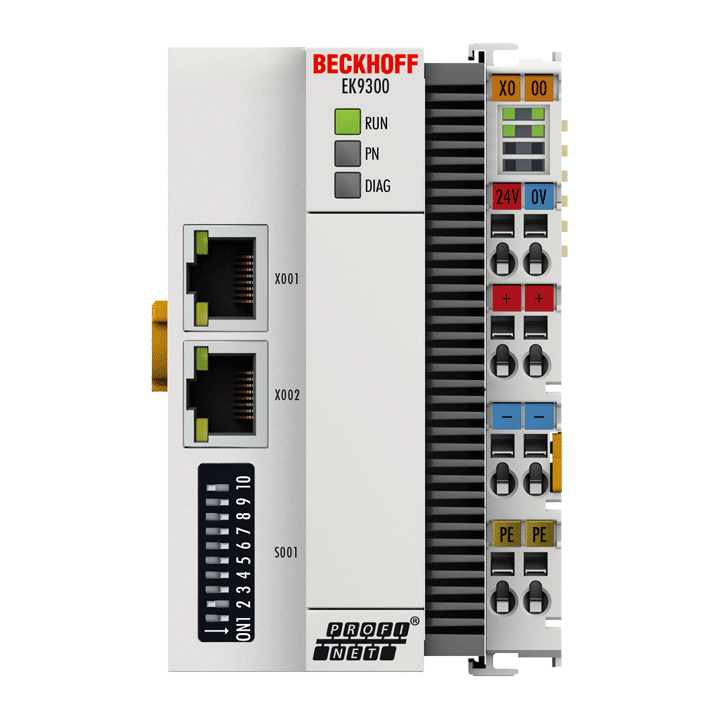

The Beckhoff EK9300 is a PROFINET RT bus coupler designed to connect PROFINET RT networks with EtherCAT Terminals (ELxxxx) and EtherCAT Box modules (EPxxxx). It enables efficient data exchange by converting PROFINET telegrams to EtherCAT E-bus signals for high-speed, deterministic communication in industrial automation.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Beckhoff |
| Category | Industrial Automation |
| Part Number | EK9300 |
| Subcategory | Bus Coupler |
| Protocol | PROFINET RT |
| Data Transfer Rate | 100 Mbit/s |
| Bus Interface | 2 × RJ45 (switched) |
| Power Supply | 24 V DC (-15% / +20%) |
| Input Current | Typ. 120 mA + (total E-bus current)/4 |
| Current Consumption (E-bus) | Up to 2 A |
| Power Contacts | Max. 24 V DC / 10 A |
| Electrical Isolation | 500 V (power contact/supply voltage/Ethernet) |
| Configuration | Not required (auto-recognition) |
| Number of EtherCAT Terminals | Dependent on process data size |
| Peripheral Signals | Dependent on process data size |
| EMC Compliance | EN 61000-6-2 / EN 61000-6-4 |
| Operating Temperature | -25°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 95%, non-condensing |
| Protection Class | IP20 |
| Dimensions (W × H × D) | 64 × 100 × 73 mm |
| Weight | 0.10 lbs |
Information About EK9300
The EK9300 is part of Beckhoff’s EtherCAT I/O system, providing a seamless interface between PROFINET RT networks and EtherCAT terminals or box modules. It serves as a conversion point, translating PROFINET RT telegrams into EtherCAT E-bus signals for deterministic, high-performance data transmission. This bus coupler eliminates the need for complex configuration by automatically recognizing connected modules and adapting to process data sizes. Its robust design supports both EtherCAT Terminals (ELxxxx) and EtherCAT Box modules (EPxxxx), enabling flexible I/O system expansion. With a 24 V DC power supply, dual RJ45 ports, and a 100 Mbit/s data rate, the EK9300 ensures reliable, high-speed communication under industrial conditions.
Key Features:
- PROFINET RT Integration: Allows EtherCAT Terminals and Box modules to connect directly to PROFINET RT networks for unified data communication.
- High-Speed Data Conversion: Translates PROFINET telegrams into EtherCAT E-bus signals at up to 100 Mbit/s for real-time operation.
- Flexible Expansion Capability: Supports any number of EtherCAT Terminals depending on process data size, offering scalable system design.
- Plug-and-Play Configuration: No manual setup required; automatically detects and configures connected EtherCAT modules.
- Dual RJ45 Ports: Enables simple network connection and daisy-chaining for efficient system topology.
- Robust Electrical Isolation: Provides 500 V isolation between power contacts, supply voltage, and Ethernet for enhanced protection.
- Industrial-Grade Reliability: Complies with EN 61000-6-2 and EN 61000-6-4 EMC standards for immunity and emission control.
- Wide Operating Range: Performs reliably in temperatures from -25°C to +60°C with 95% humidity tolerance.
The EK9300 delivers the reliability and precision required for integrating EtherCAT I/O systems into PROFINET RT industrial networks with seamless performance and minimal setup.
