EL1862 | Beckhoff EtherCAT Terminal, 16-Channel Digital Input, 24 V DC
- Regular price
- $560.00
- Sale price
- $560.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: EL1862
Description

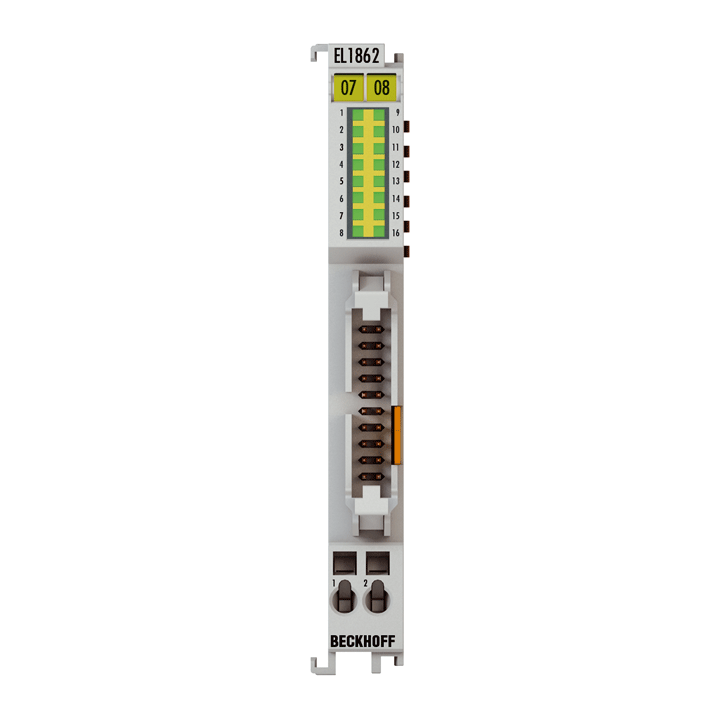

The Beckhoff EL1862 EtherCAT Terminal is a 16-channel digital input module designed for compact signal acquisition with 24 V DC logic levels. Featuring flat-ribbon cable connection and a 3 ms input filter, it ensures efficient wiring, reliable signal detection, and noise-free input switching for high-density automation systems.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Beckhoff |
| Category | Industrial I/O |
| Part Number | EL1862 |
| Subcategory | Digital Input Terminals |
| Bus System | EtherCAT |
| Number of Inputs | 16 |
| Nominal Voltage | 24 V DC (-15% / +20%) |
| Input Specification | EN 61131-2, type 1/3 |
| Input Current | Typ. 3 mA (EN 61131-2, type 3) |
| “0” Signal Voltage | -3…+5 V |
| “1” Signal Voltage | 11…30 V |
| Input Filter | Typ. 3.0 ms |
| Rated Current | Max. 1 A per connection pin |
| Connection Technology | Flat-ribbon cable, 20-pin contact strip |
| Distributed Clocks | Not supported |
| Electrical Isolation | 500 V (E-bus/field potential) |
| Current Consumption (E-bus) | Typ. 100 mA |
| Current Consumption (Power Contacts) | 4 mA from 24 V supply |
| Bit Width in Process Image | 16 inputs |
| Configuration | No address or configuration setting required |
| Special Features | Ground switching version available |
| Indication | LEDs for input signal status |
| Operating Temperature | -25…+55°C |
| Storage Temperature | -40…+85°C |
| Relative Humidity | 95%, non-condensing |
| Enclosure Protection | IP20 |
| Mounting | DIN rail |
| Weight | 60 g (approx. 0.13 lbs) |
Information About EL1862
The EL1862 is part of Beckhoff’s EtherCAT I/O system and is specifically designed to handle large numbers of digital inputs in a compact form factor. With 16 input channels, it enables efficient connection of sensors and switches via a 20-pin flat-ribbon cable interface. The terminal features a 3 ms input filter that prevents contact bounce and ensures reliable signal detection even with mechanical switches. Each channel’s status is indicated by LEDs, providing quick visual diagnostics. The EL1862 simplifies cabling and reduces installation time, making it particularly well-suited for control cabinets and applications with space or wiring constraints.
Key Features:
- High-Density Input Module: Provides 16 digital inputs in a single EtherCAT Terminal for compact signal collection.
- Flat-Ribbon Cable Connection: Utilizes a 20-pin contact strip for easy, reliable, and space-efficient wiring.
- Stable Signal Filtering: Built-in 3 ms input filter eliminates switch bounce and ensures accurate signal acquisition.
- Wide Voltage Compatibility: Operates with 24 V DC logic and accepts signals between 11 and 30 V for “1” states.
- Electrical Isolation: 500 V separation between field and E-bus levels enhances system safety and reliability.
- LED Status Indication: Each channel features LED indicators for fast diagnostics and operational monitoring.
- Plug-and-Play Configuration: Automatically recognized by the controller with no manual address setup required.
- Durable and Compact Design: IP20-rated construction suitable for DIN-rail mounting in industrial control cabinets.
The EL1862 delivers the reliability and precision required for compact signal acquisition and efficient wiring in distributed EtherCAT control systems.
