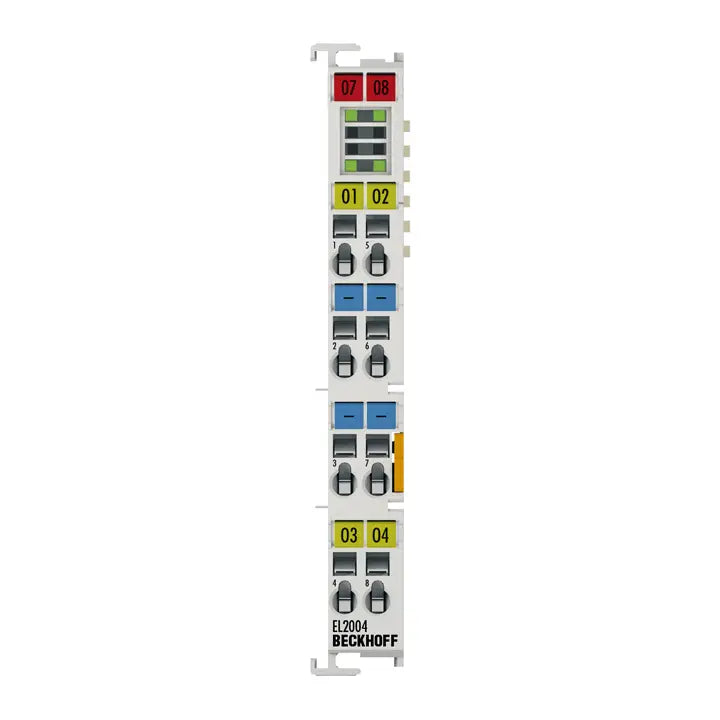

EL2004 | Beckhoff EtherCAT Terminal, 4-channel digital output, 24 V DC, 0.5 A
- Regular price
- $89.00
- Sale price
- $89.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: EL2004
Description
The Beckhoff EL2004 is a compact 4-channel digital output EtherCAT Terminal engineered for fast, reliable switching of 24 VDC loads. It supports ohmic, inductive, and lamp loads, delivering high performance with short-circuit protection and LED status indication for each channel.
Technical Specifications
| Condition | New / Never Used Surplus |
| Manufacturer | Beckhoff |
| Part Number | EL2004 |
| Number of Outputs | 4 |
| Nominal Voltage | 24 V DC (−15% / +20%) |
| Max. Output Current | 0.5 A per channel (short-circuit proof) |
| Load Types | Ohmic, inductive, lamp load |
| Short-Circuit Current | < 2 A typical |
| Breaking Energy | < 150 mJ/channel |
| Switching Times | TON: 60 µs, TOFF: 300 µs |
| Connection Technology | 2-wire |
| Isolation Voltage | 500 V (E-bus ↔ field) |
| E-bus Current | ~100 mA |
| Power Contact Current | 15 mA + load |
| Process Image | 4 outputs |
| Protection | Reverse polarity |
| Operating Temperature | −25°C to +60°C |
| Storage Temperature | −40°C to +85°C |
| Humidity | 95%, non-condensing |
| Protection Rating | IP20 |
| Dimensions (W × H × D) | 12 × 100 × 68 mm |
| Mounting | DIN rail |
| Weight | ~55 g |
Information About EL2004
The EL2004 is part of Beckhoff’s EtherCAT Terminal series and is designed to transfer 24 VDC binary control signals from a controller to field-level actuators. It integrates four independent digital output channels, each capable of switching up to 0.5 A with short-circuit protection and reverse polarity protection. The module provides electrical isolation between the E-bus and field potential, ensuring safe operation in industrial environments. It supports rapid switching times (60 µs ON / 300 µs OFF), making it suitable for high-speed automation tasks. With its compact 12 mm width and DIN-rail mounting design, the EL2004 enables high-density I/O configuration while maintaining excellent reliability and ease of integration into EtherCAT-based systems.
Key Features:
- Four 24 VDC digital output channels: Supports ohmic, inductive, and lamp loads for broad application compatibility.
- High-speed switching performance: Provides typical switching times of 60 µs (TON) and 300 µs (TOFF).
- Built-in protection: Includes short-circuit proof outputs, reverse polarity protection, and up to 150 mJ/channel breaking energy.
- EtherCAT integration: Interfaces directly with the EtherCAT system via the E-bus with 500 V electrical isolation.
- Compact and efficient design: Only 12 mm wide, enabling high-density I/O deployments.
- LED indication per channel: Provides real-time output status for easy diagnostics.
- Rugged environmental performance: Operates from −25°C to +60°C and handles 95% humidity without condensation.
- Zero configuration required: Automatically recognized by the EtherCAT master with no address setting needed.
The EL2004 delivers the reliability and fast response required for modern EtherCAT-based automation systems across industrial applications.
