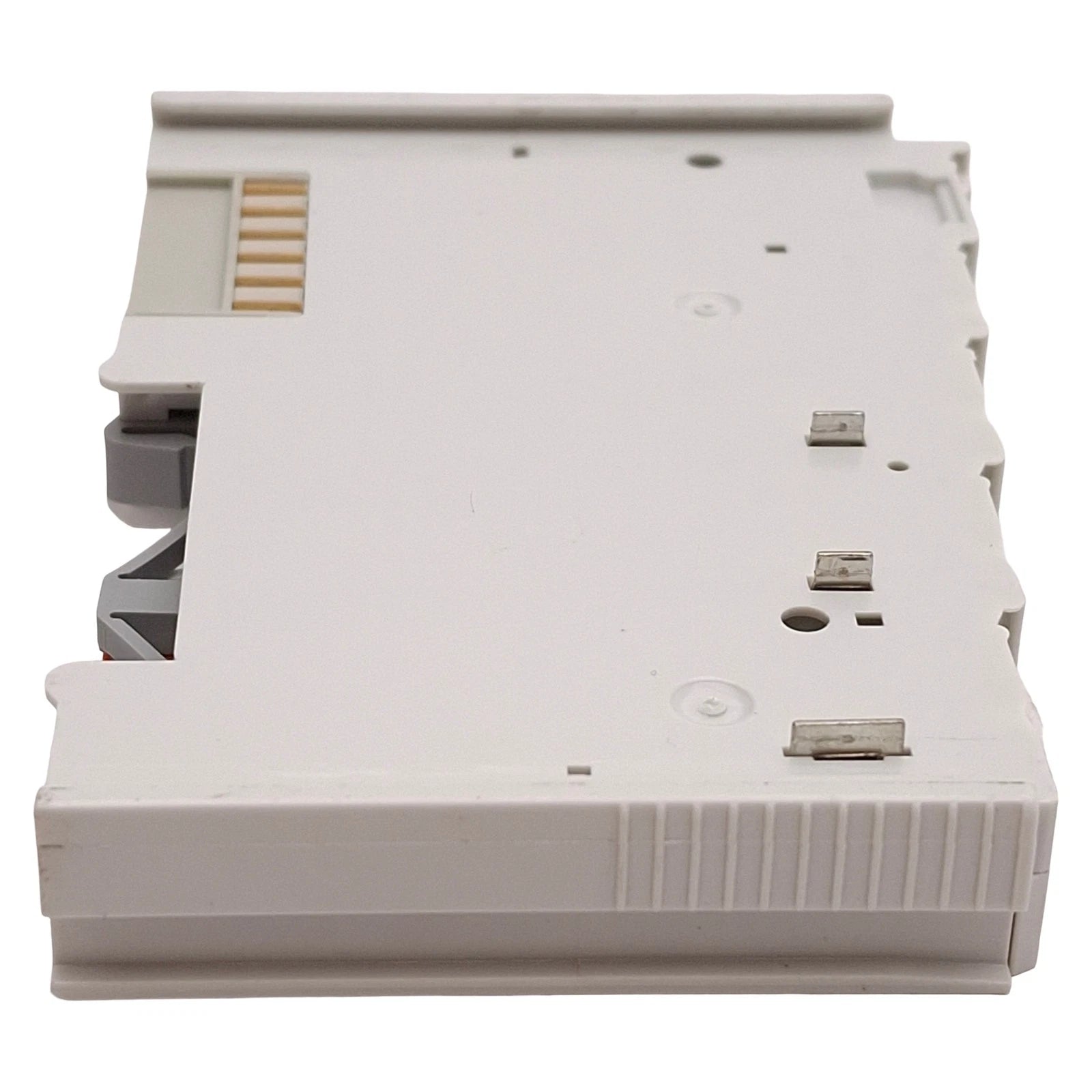

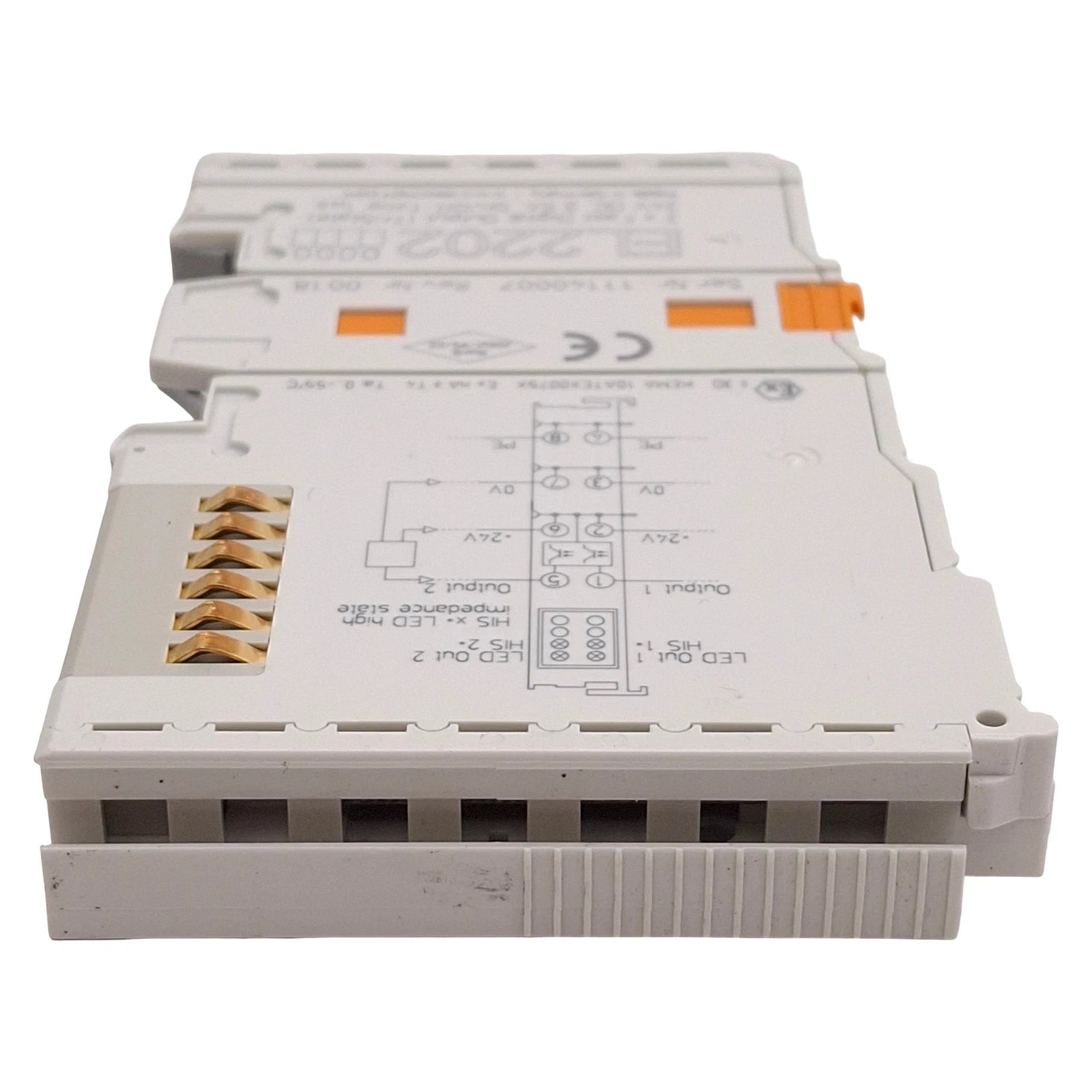

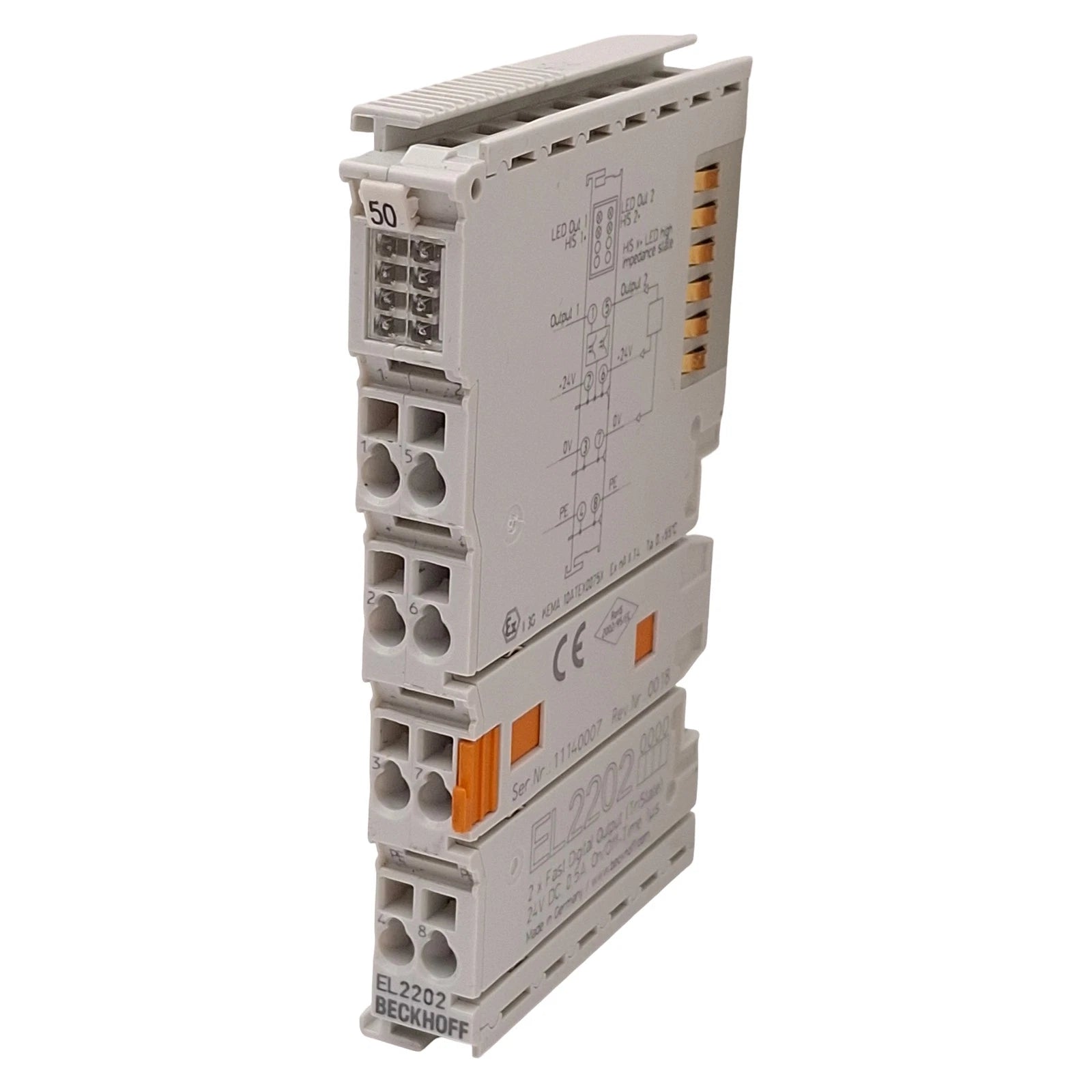

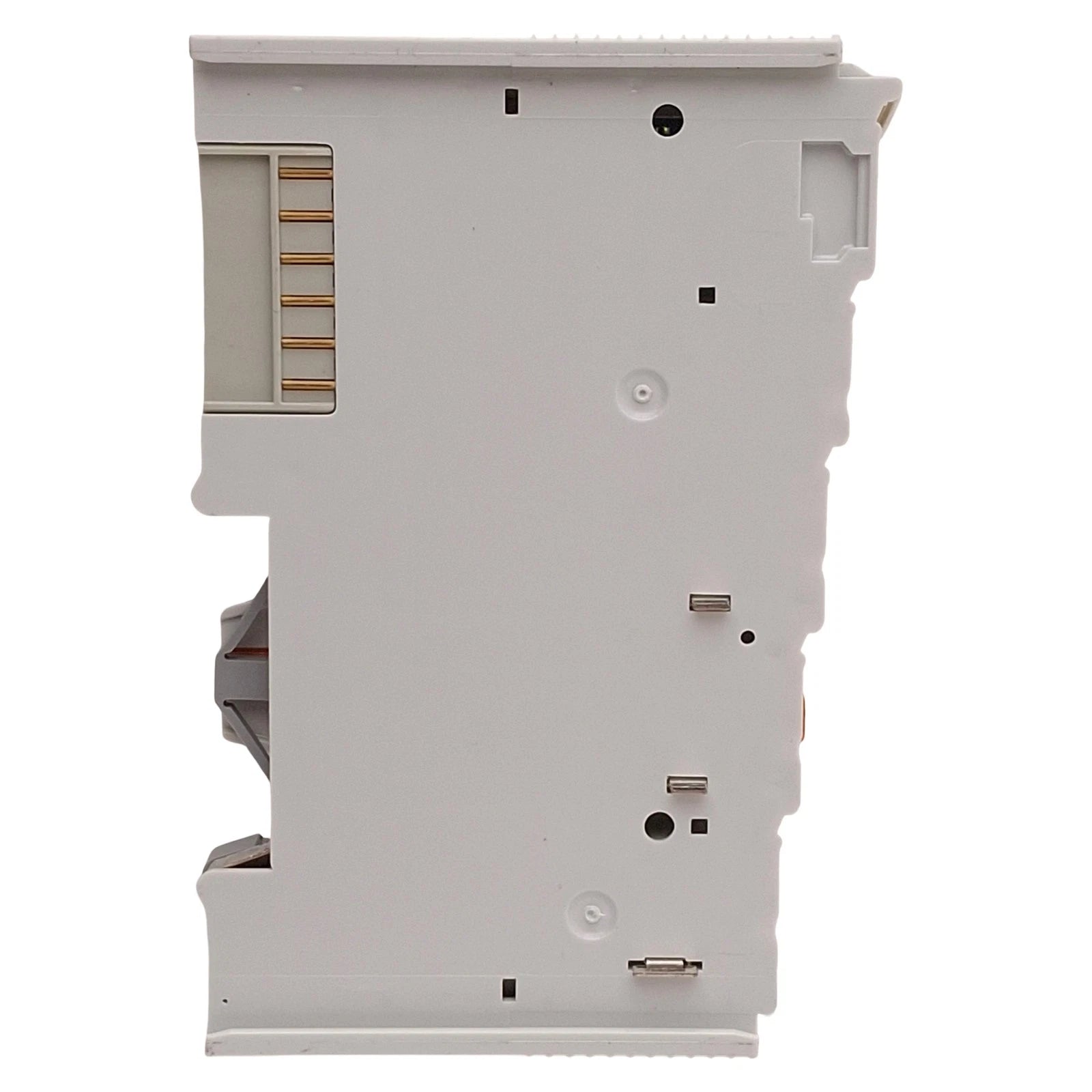

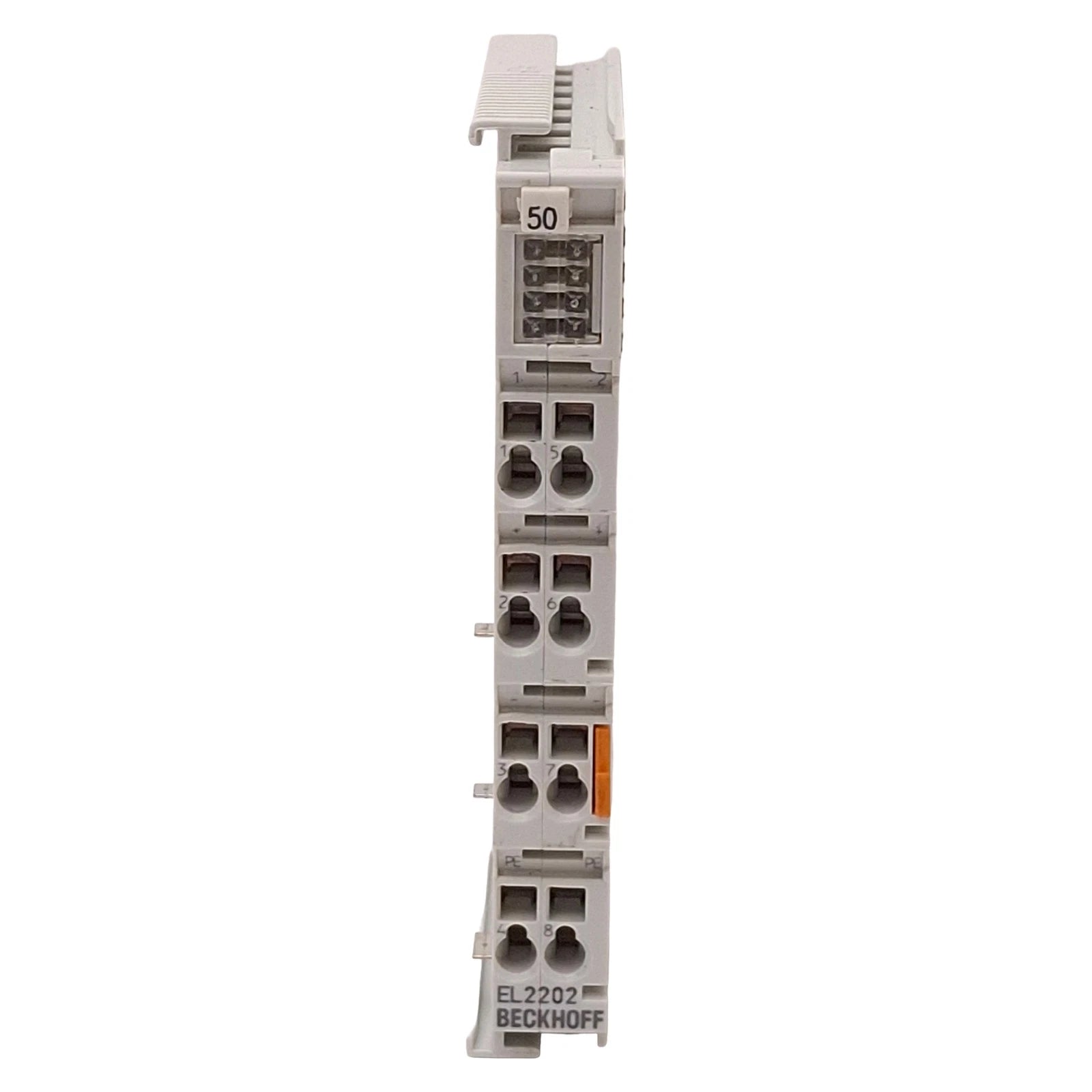

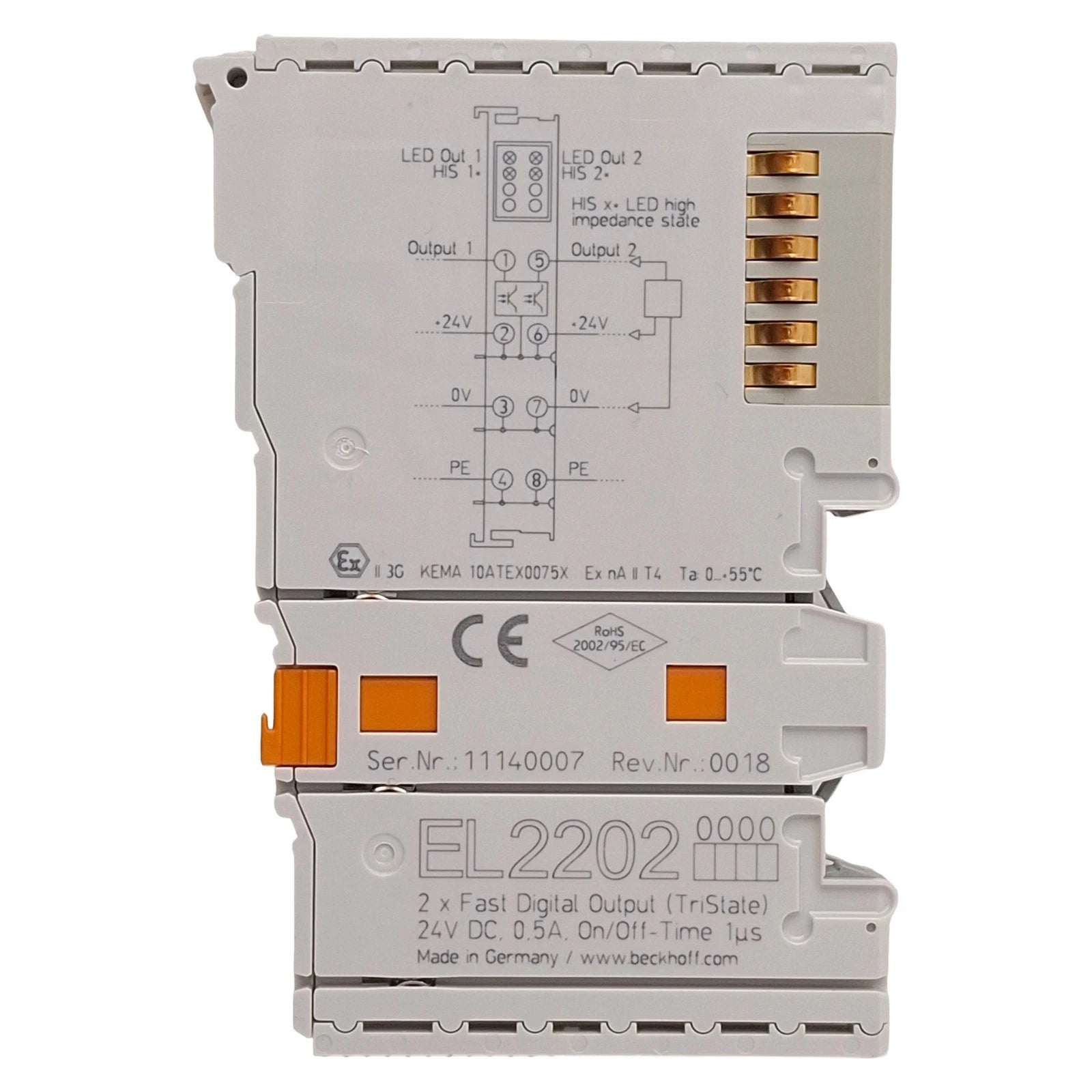

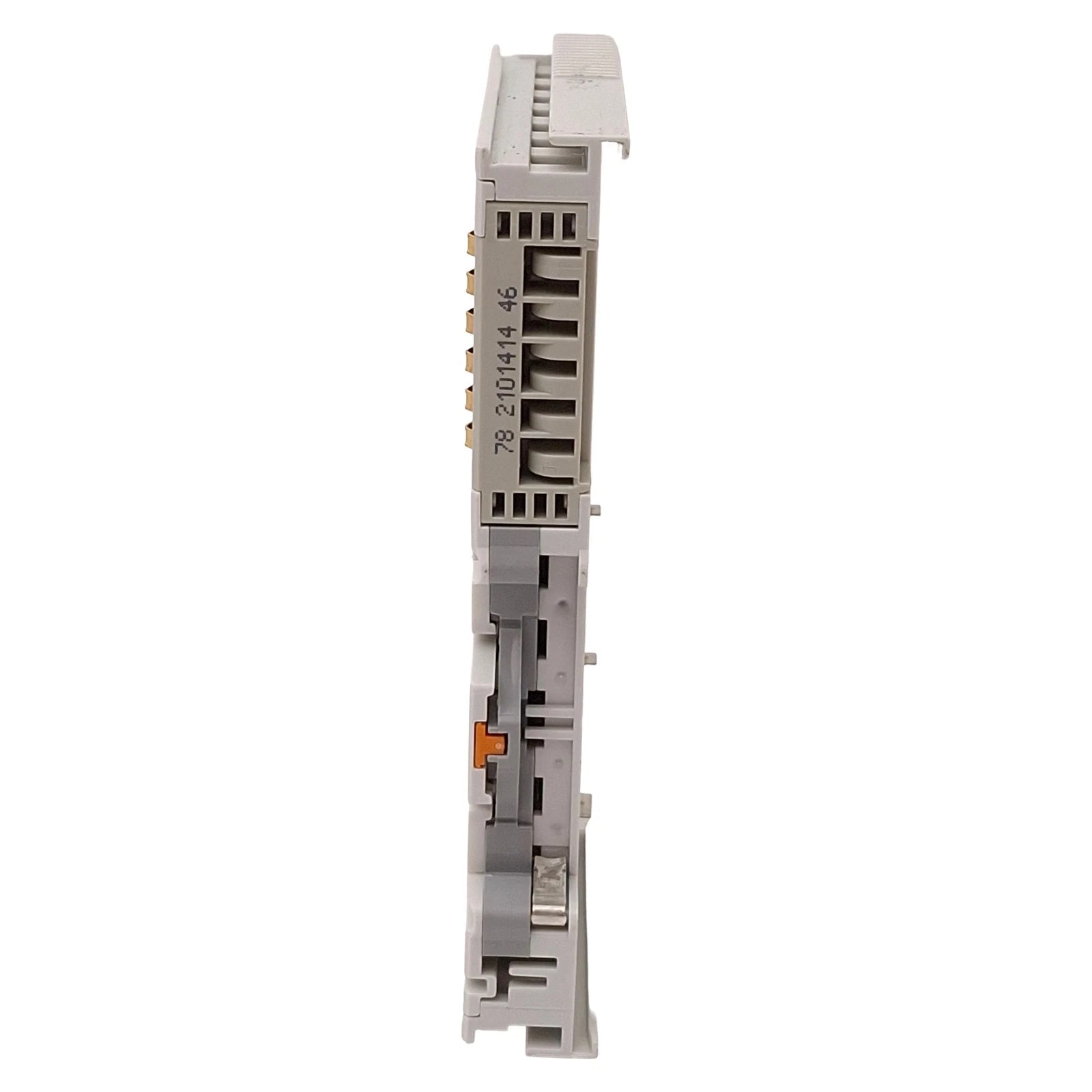

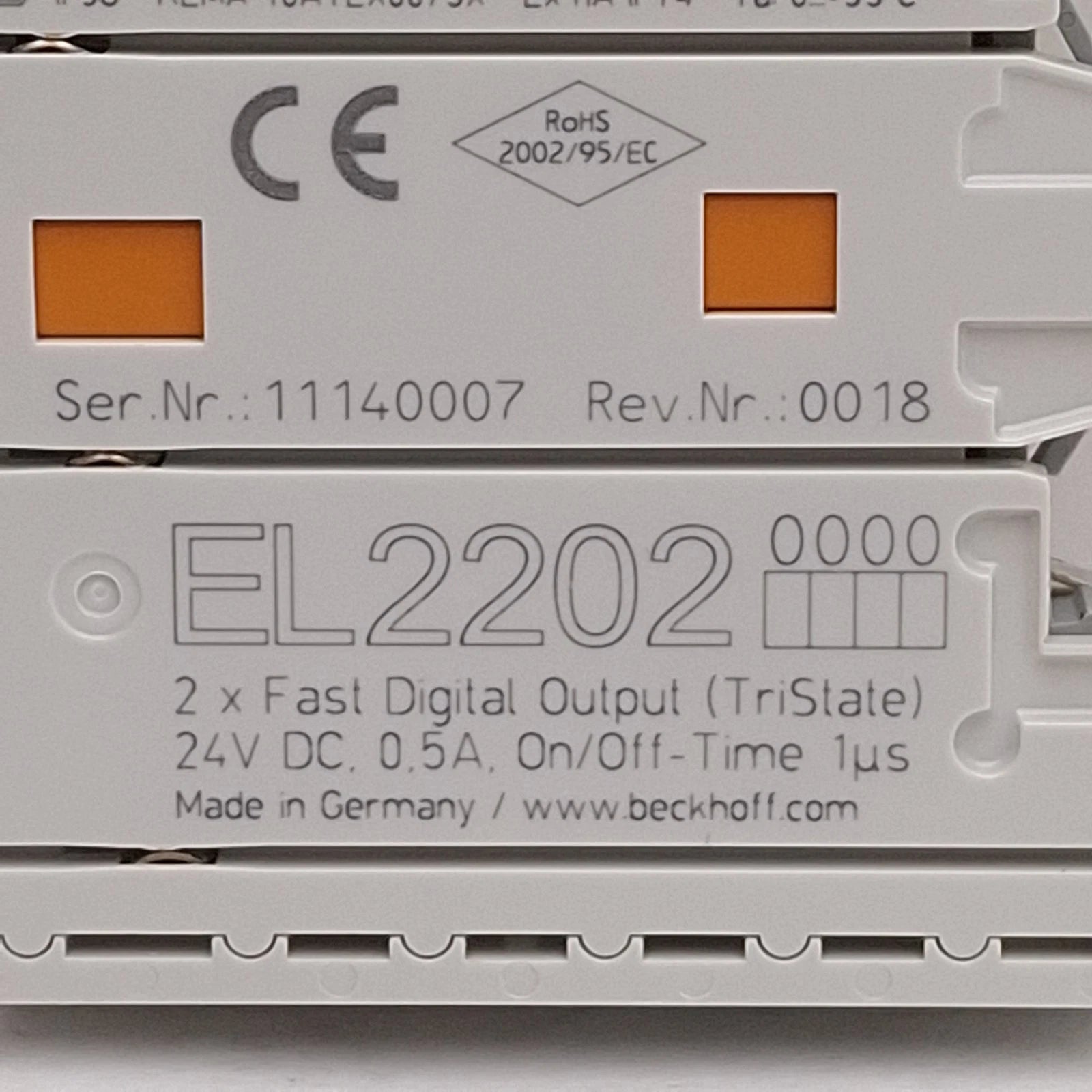

EL2202 | Beckhoff EtherCAT 2-Channel Digital Output Terminal 24 VDC
- Regular price
- $380.00
- Sale price
- $380.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: EL2202
Description
The Beckhoff EL2202 is a 2-channel EtherCAT digital output terminal designed for fast signal output and precise actuator control. Operating at 24 VDC and 0.5 A per channel, it features push-pull output stages with tristate capability and electrical isolation, ensuring high-speed and reliable performance in automation applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Beckhoff |
| Category | Industrial Automation |
| Part Number | EL2202 |
| Subcategory | EtherCAT Digital Output Terminal |
| Connection Technology | 4-wire |
| Number of Outputs | 2 |
| Nominal Voltage | 24 V DC (-15% / +20%) |
| Max. Output Current | 0.5 A per channel (short-circuit proof in push operation) |
| Load Type | Ohmic, inductive, or lamp load |
| Output Stage | Push-pull, high-ohmic (tristate mode supported) |
| Short-Circuit Current | Typ. 4 A / 150 µs |
| Switching Times | TON: < 1 µs, TOFF: < 1 µs |
| Breaking Energy | < 150 mJ per channel |
| Reverse Voltage Protection | Yes |
| Distributed Clocks | Optional (factory enabled on EL2202-0100 variant) |
| Bit Width in Process Image | 2 × 2-bit output |
| Configuration | No address or configuration setting required |
| Electrical Isolation | 500 V (E-bus/field potential) |
| Current Consumption (E-bus) | Typ. 130 mA |
| Current Consumption (Power Contacts) | Typ. 30 mA + load |
| Protection Rating | IP20 |
| Operating Temperature | -25°C to +55°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | Up to 95%, non-condensing |
| Dimensions (W × H × D) | 12 mm × 100 mm × 68 mm |
| Weight | 60 g (0.13 lbs) |
Information About EL2202
The EL2202 is part of Beckhoff’s EtherCAT I/O terminal series and is specifically developed for rapid digital signal output in automation control systems. Each of its two push-pull outputs can be independently switched to 24 V, 0 V, or high-impedance (tristate) mode, providing flexible control for various actuator types. Its very low switching delay—less than 1 microsecond—makes it suitable for applications requiring precise timing, such as high-speed machine control or motion synchronization. The module’s outputs are electrically isolated from the system bus for safety and signal integrity, while its diagnostic LEDs display the state of each output in real time. The EL2202 can also be converted to the distributed clock version (EL2202-0100) for enhanced synchronization accuracy.
Key Features:
- High-Speed Output Performance: Typical switching times under 1 µs ensure fast and accurate control of connected actuators.
- Dual Push-Pull Channels: Two independent outputs can switch between 24 V, 0 V, or high-impedance states for versatile applications.
- Tristate Functionality: Allows each output to be set to high resistance, providing safe control and signal flexibility.
- Robust Electrical Isolation: 500 V isolation between E-bus and field potential guarantees safe, interference-free operation.
- Integrated Protection Features: Includes short-circuit protection, reverse voltage protection, and limited energy dissipation per channel.
- Compact and Lightweight Design: Slim 12 mm width minimizes space requirements in control cabinets.
- Optional Distributed Clock Support: Can be upgraded to EL2202-0100 for precise EtherCAT synchronization with <1 µs DC accuracy.
- Diagnostic Indicators: Integrated LEDs show channel signal states for efficient system monitoring and troubleshooting.
The EL2202 delivers the reliability and precision required for fast, synchronized digital control, making it ideal for machine automation, process systems, and timing-critical applications.
