EL2258 | Beckhoff EtherCAT Terminal, 8-Channel Digital Output, 24 V DC, 0.5 A, Multi-Timestamp
- Regular price
- $560.00
- Sale price
- $560.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: EL2258
Description

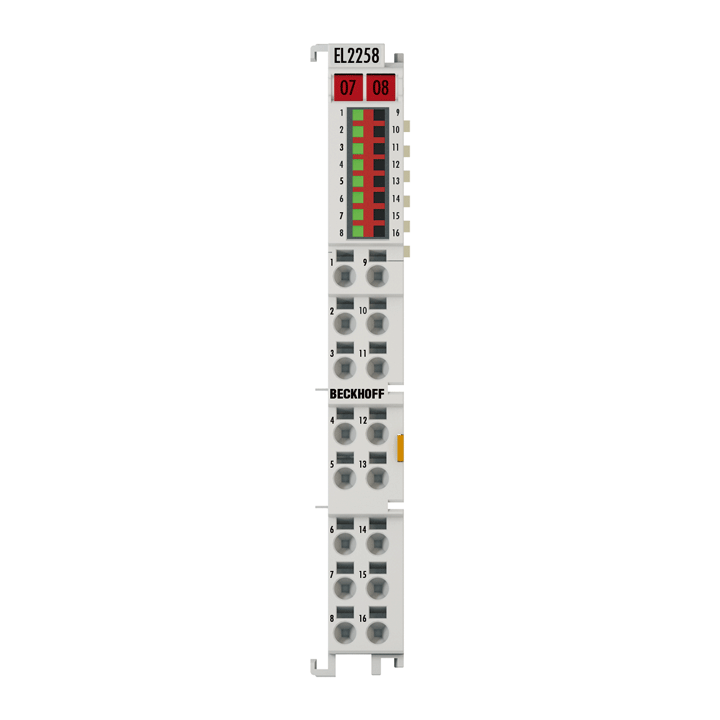

The Beckhoff EL2258 EtherCAT Terminal is an 8-channel digital output module designed for precise, time-controlled switching of output signals. It supports 24 V DC operation with 0.5 A per channel and integrates multi-timestamping technology for highly synchronized signal generation using distributed clocks.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Beckhoff |
| Category | Industrial I/O |
| Part Number | EL2258 |
| Subcategory | Digital Output Terminals |
| Bus System | EtherCAT |
| Number of Outputs | 8 |
| Signal Type | Digital output |
| Nominal Voltage | 24 V DC (-15% / +20%) |
| Max. Output Current | 0.5 A per channel (short-circuit proof) |
| Load Type | Ohmic, inductive, or lamp load |
| Connection Technology | 2-wire |
| Output Stage | Push-pull |
| Short-Circuit Current | Typ. < 1 A |
| Reverse Voltage Protection | Yes |
| Switching Times | TON: < 1 µs, TOFF: < 1 µs |
| Distributed Clocks | Supported |
| Distributed Clock Precision | << 1 µs |
| Multi-Timestamping Factor | Integer multiple of cycle time (1…10) |
| Internal Sampling Rate | 10–40 µs (corresponding to 25–100 kHz, depending on configuration) |
| Output Delay | Typ. < 1 µs |
| Breaking Energy | < 150 mJ per channel |
| Power Supply | Via E-bus and power contacts |
| Current Consumption (E-bus) | Typ. 130 mA |
| Current Consumption (Power Contacts) | Typ. 30 mA + load |
| Bit Width in Process Image | 8-bit output + 9-byte timestamp |
| Electrical Isolation | 500 V (E-bus/field potential) |
| Special Features | Multi-timestamping, auto-activation |
| Operating Temperature | -25…+55°C |
| Storage Temperature | -40…+85°C |
| Enclosure Protection | IP20 |
| Relative Humidity | 95%, non-condensing |
| Weight | 55 g (approx. 0.12 lbs) |
Information About EL2258
The EL2258 is part of Beckhoff’s EtherCAT I/O system, designed for high-speed digital output control with timestamp synchronization. It provides eight individually switchable outputs capable of handling various load types, including ohmic, inductive, and lamp loads. Using Beckhoff’s XFC (eXtreme Fast Control) technology, the EL2258 achieves precise timing with distributed clocks and multi-timestamping functionality. This allows multiple time-stamped events to be processed per EtherCAT cycle, ensuring deterministic signal switching. The module also supports automatic activation for repetitive switching tasks, making it ideal for advanced motion control, signal simulation, and precise process synchronization applications.
Key Features:
- Eight Digital Outputs: Offers 8 channels with 24 V DC, 0.5 A capability for versatile signal control in industrial automation.
- High-Speed Switching: Achieves typical TON and TOFF times under 1 µs for rapid signal response.
- Multi-Timestamp Functionality: Enables storage and execution of multiple time-stamped switching events per EtherCAT cycle.
- Distributed Clock Synchronization: Utilizes EtherCAT distributed clocks with precision better than 1 µs for synchronized operation.
- Auto-Activation Feature: Supports automated output control sequences for consecutive switching tasks in each bus cycle.
- Wide Load Compatibility: Suitable for ohmic, inductive, and lamp loads with built-in protection against short circuits and reverse voltage.
- Advanced Safety and Isolation: Provides 500 V electrical isolation between E-bus and field potential for secure system operation.
- Compact and Efficient Design: IP20-rated housing allows DIN-rail installation and efficient integration in distributed control systems.
The EL2258 delivers the reliability and precision required for motion synchronization, fast digital control, and time-critical automation processes.
