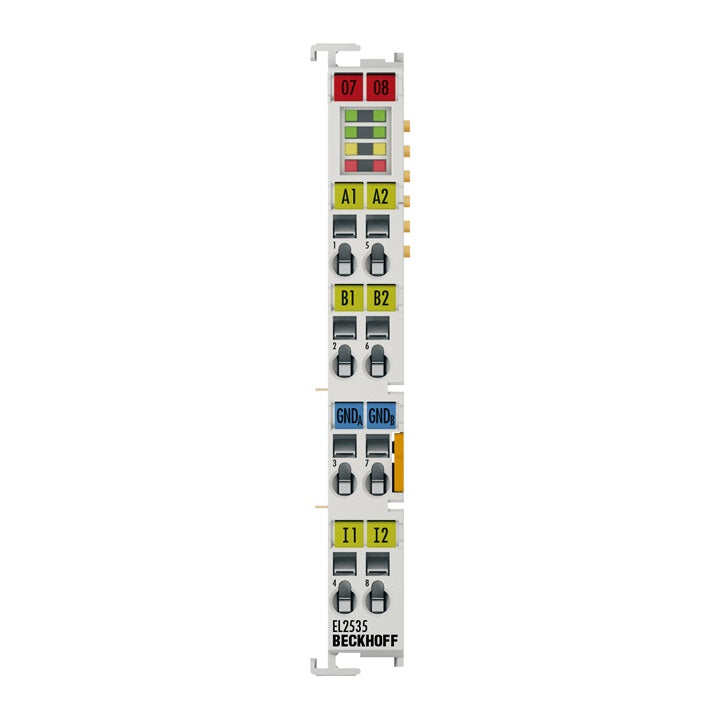

EL2535 | Beckhoff EtherCAT Terminal 2-Channel PWM Output 24–48 V DC 1 A Current-Controlled
- Regular price
- $427.00
- Sale price
- $427.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: EL2535
Description
The Beckhoff EL2535 is a 2-channel PWM EtherCAT Terminal that provides precise current-controlled outputs for driving inductive loads. Operating at 24–48 V DC with ±1 A per channel, it delivers high-speed pulse-width modulation up to 30 kHz for accurate control of valves, coils, and other actuators in automation systems.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Beckhoff |
| Category | Industrial Automation |
| Part Number | EL2535 |
| Subcategory | EtherCAT Terminal |
| Function | 2-channel PWM output terminal, current-controlled |
| Connection Technology | PWM output, push-pull outputs |
| Number of Outputs | 2 |
| Nominal Voltage | 24 V DC (-15%/+20%) |
| Operating Voltage Range | 24…48 V DC |
| Load Type | Inductive > 1 mH |
| Max. Output Current | ±1 A per channel |
| Short-Circuit Current | Typ. < 2 A |
| PWM Clock Frequency | 30 kHz |
| Duty Factor | 0–100% (current-controlled) |
| Resolution | 10 bit |
| Reverse Voltage Protection | Yes |
| Distributed Clocks | Not supported |
| Digital Inputs | 2 × 24 V integrated digital inputs |
| Electrical Isolation | 500 V (E-bus/field potential) |
| Current Consumption (E-bus) | Typ. 110 mA |
| Current Consumption (Power Contacts) | Typ. 30 mA + load |
| Bit Width in Process Image | 48 inputs/outputs: 2 × 16-bit data, 2 × 8-bit control/status |
| Operating Temperature | 0°C to +55°C |
| Storage Temperature | -25°C to +85°C |
| Relative Humidity | 95%, non-condensing |
| Protection Class | IP20 |
| Weight | Approx. 50 g |
Information About EL2535
The EL2535 EtherCAT Terminal is part of Beckhoff’s advanced I/O system, providing two current-controlled PWM output channels for precise actuator control in distributed automation environments. Designed to operate within the 24–48 V DC range, the EL2535 supports inductive loads such as valves, solenoids, and coils with high precision and reliability. Each channel delivers a ±1 A output, controlled by a 10-bit resolution PWM signal with a switching frequency of up to 30 kHz. The terminal’s push-pull output design supports bidirectional current flow and offers inherent protection features, including short-circuit and reverse polarity protection. Integrated digital inputs allow for direct feedback or control signals without requiring additional terminals. With electrical isolation between the field and EtherCAT levels and a compact IP20 housing, the EL2535 ensures safe, stable, and efficient operation in industrial control systems.
Key Features:
- Dual PWM Channels: Two independently controlled PWM outputs for current-driven applications such as solenoid and valve actuation.
- Current-Controlled Operation: Maintains precise current regulation (±1 A per channel) for consistent actuator performance.
- High-Speed Modulation: 30 kHz PWM clock frequency provides smooth and rapid signal control suitable for dynamic processes.
- Wide Voltage Range: Operates within 24–48 V DC, ensuring compatibility with diverse power supply configurations.
- Integrated Digital Inputs: Includes two 24 V inputs for additional control or monitoring functionality within the same module.
- High Resolution and Accuracy: 10-bit resolution guarantees fine-grained modulation for precise output control.
- Electrical Isolation: 500 V isolation between the E-bus and field potential enhances operational safety and signal integrity.
- Short-Circuit and Reverse Protection: Built-in circuitry safeguards the terminal and connected devices from electrical faults.
- Compact Modular Design: Space-saving EtherCAT form factor allows seamless integration with other Beckhoff I/O terminals.
- Stable Industrial Performance: Robust construction and reliable power handling ensure dependable operation across 0–55°C environments.
The EL2535 delivers the reliability and precision required for high-speed current-controlled PWM applications in modern EtherCAT-based automation systems.
