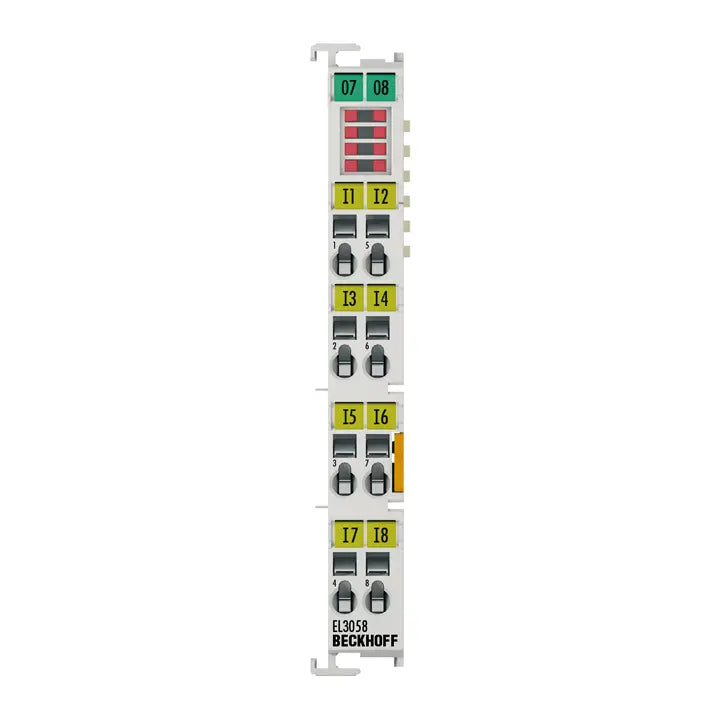

EL3058 | BECKHOFF EtherCAT Terminal, 8-channel analog input, current, 4…20 mA, 12 bit, single-ended
- Regular price
- $272.00
- Sale price
- $272.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: EL3058
Description
The EL3058 analog input terminal processes signals in the range between 4 and 20 mA. The current is digitized to a resolution of 12 bits and is transmitted (electrically isolated) to the higher-level automation device. The input electronics are independent of the supply voltage of the power contacts. The EL3058 EtherCAT Terminal combines eight channels in one housing. The power contacts are connected through. The 0 V power contact is used as reference ground connection for the inputs. The signal state of the EtherCAT Terminal is indicated by light emitting diodes. The error LEDs indicate an overload condition and a broken wire.
Technical Specifications
| Manufacturer | BECKHOFF |
| Category | PLCs/Machine Control |
| Subcategory | PLC Programming Terminal |
| Part Number | EL3058 |
| Product type | 8-channel Analog Input Terminal |
| Number of inputs | 8 |
| Signal current | 4 mA ... 20 mA |
| Internal resistance | typ. 85 O |
| Resolution | 12 bit (16 bit presentation) |
| Conversion time (default setting: 50 Hz filter) | typical 1.25 ms |
| Input filter limit frequency | 1 kHz |
| Current consumption via E-bus | typ. 130 mA |
| Electrical isolation | 500 V (E-bus/field voltage) |
| Dielectric strength | max. 30 V |
| Mounting | on 35 mm mounting rail conforms to EN 60715 |
| Permissible relative humidity | 95%, no condensation |
| EMC immunity/emission | conforms to EN 61000-6-2 / EN 61000-6-4 |
| Dimensions (HxWxD), approx | 10 cm X 1.5 cm X 7 cm |
Information About EL3058
The BECKHOFF EL3058 is an EtherCAT Terminal designed for precise analog input in industrial automation systems. This 8-channel Analog Input Terminal accommodates signals in the range of 4 mA to 20 mA, making it suitable for various current-based sensing applications.
Key features include a typical internal resistance of 85 ohms, ensuring accurate signal reception. With a high resolution of 12 bits (16-bit presentation), it provides detailed and precise analog-to-digital conversion. The conversion time, set at a default 50 Hz filter, is typically 1.25 ms, offering real-time responsiveness.
Equipped with a 1 kHz input filter limit frequency, the EL3058 enhances signal quality. The current consumption via E-bus is typically 130 mA, and it provides electrical isolation up to 500 V (E-bus/field voltage), ensuring safety in operation.
The EtherCAT Terminal is designed for easy mounting on a 35 mm rail conforming to EN 60715 standards. Operating under permissible relative humidity conditions of 95% with no condensation, the EL3058 adheres to EMC immunity/emission standards (EN 61000-6-2/EN 61000-6-4).
Compact in size with dimensions of approximately 10 cm x 1.5 cm x 7 cm (H x W x D), the EL3058 offers a reliable solution for analog input in EtherCAT-based industrial control systems.
