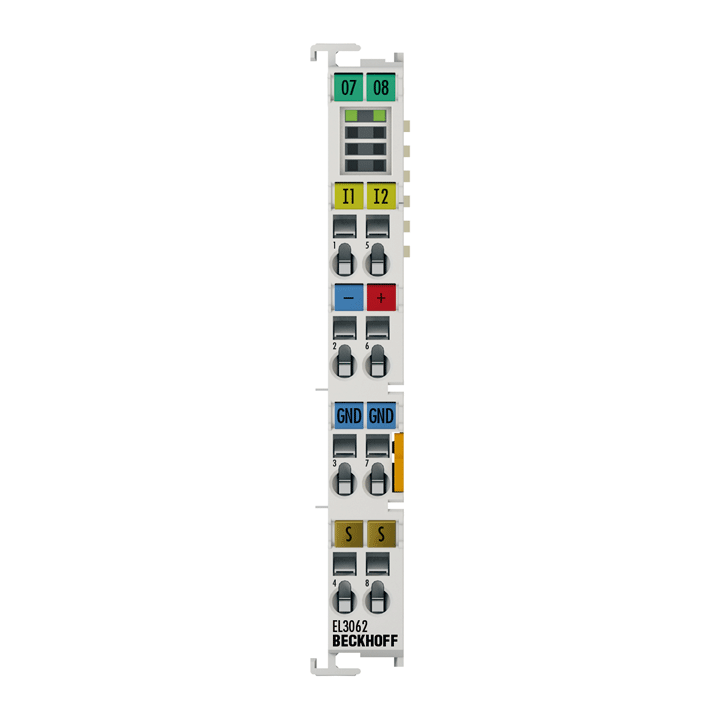

EL3062 | Beckhoff EtherCAT Terminal 2-Channel Analog Input 0–10 V 12-Bit Single-Ended
- Regular price
- $620.00
- Sale price
- $620.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: EL3062
Description
The Beckhoff EL3062 is a 2-channel analog input EtherCAT Terminal designed for voltage signal acquisition in the 0–10 V range. It digitizes input signals with 12-bit resolution and 500 V isolation, providing accurate, noise-free data transmission to higher-level automation systems.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Beckhoff |
| Category | Industrial Automation |
| Part Number | EL3062 |
| Subcategory | EtherCAT Terminal |
| Function | 2-channel analog voltage input |
| Number of Inputs | 2 (single-ended) |
| Signal Voltage | 0…10 V |
| Resolution | 12 bit (16 bit representation including sign) |
| Conversion Time | 0.625 ms (default, configurable, multiplex) |
| Internal Resistance | > 130 kΩ |
| Input Filter Limit Frequency | 1 kHz |
| Measurement Error | < ±0.3% (relative to full scale value) |
| Dielectric Strength | Max. 30 V |
| Electrical Isolation | 500 V (E-bus/signal voltage) |
| Distributed Clocks | Not supported |
| Power Supply | Via E-bus |
| Current Consumption (E-bus) | Typ. 130 mA |
| Bit Width in Process Image | 8 bytes (inputs) |
| Special Features | Activatable FIR/IIR filters, limit value monitoring |
| LED Indicators | Signal status per channel |
| Operating Temperature | -25°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 95%, non-condensing |
| Protection Class | IP20 |
| Weight | Approx. 60 g |
Information About EL3062
The EL3062 belongs to Beckhoff’s EL3xxx series of analog input EtherCAT Terminals and is built for reliable voltage signal acquisition in automation, process control, and monitoring systems. It measures voltage signals between 0 and 10 V with 12-bit accuracy and transmits digitized data directly to the control unit through EtherCAT communication. The module’s inputs share a common reference ground and include electrical isolation for safety and stability. Optional FIR/IIR filters enhance signal quality by reducing electrical noise, while configurable limit value monitoring provides built-in safety supervision. With a fast and flexible conversion time of just 0.625 ms, the EL3062 ensures efficient and precise analog data acquisition for a wide range of industrial applications.
Key Features:
- Dual High-Precision Inputs: Equipped with two single-ended analog input channels capable of measuring 0–10 V signals independently, allowing simultaneous monitoring of multiple voltage sources.
- 12-Bit Signal Resolution: Converts analog voltage signals into 12-bit digital values (16-bit representation) for fine-grained accuracy in process control and data acquisition.
- Configurable Conversion Performance: The conversion time is adjustable from 0.625 ms, enabling optimization for either fast sampling or high-accuracy filtering depending on the application.
- Advanced Filtering Options: Integrated FIR and IIR digital filters effectively reduce signal noise, improving stability and reliability in electrically noisy industrial environments.
- Limit Value Monitoring: Built-in software functions allow users to define maximum and minimum voltage thresholds for each channel, ensuring automatic monitoring of critical process limits.
- High Electrical Isolation: 500 V isolation between E-bus and field potential provides safe operation and prevents interference from external power sources.
- Status and Diagnostics LEDs: Each input channel includes LED indicators for real-time visualization of active signal states and quick fault detection during operation.
- Robust Industrial Design: Operates across a wide temperature range (-25°C to +60°C) and withstands up to 95% humidity, ensuring long-term reliability in harsh conditions.
The EL3062 delivers the reliability and precision required for process monitoring, analog sensor integration, and voltage measurement in EtherCAT-based automation systems.
