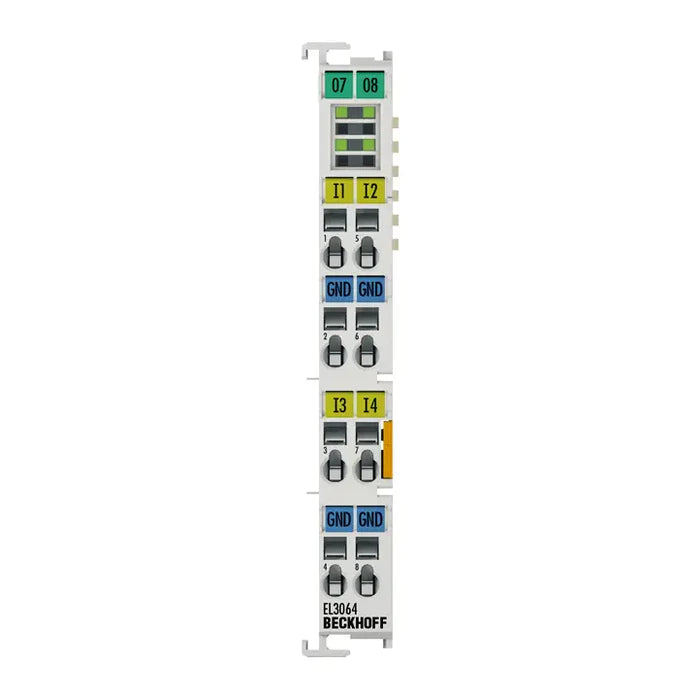

EL3064 | BECKHOFF EtherCAT Terminal, 4-channel analog input, voltage, 0…10 V, 12 bit, single-ended
- Regular price
- $299.00
- Sale price
- $299.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: EL3064
Description
The EL3064 analog input terminal processes signals in the range between 0 and 10 V. The voltage is digitised with a resolution of 12 bits and is transmitted (electrically isolated) to the higher-level automation device. The EL3064 EtherCAT Terminal features 2-wire conductors for the four single-ended inputs with a common internal ground potential. The power contacts are connected through. The signal state of the EtherCAT Terminal is indicated by light emitting diodes.
Technical Specifications
| Manufacturer | BECKHOFF |
| Part Number | EL3064 |
| Number of inputs | 4 (single-ended) |
| Signal voltage | 0…10 V |
| Internal resistance | > 130 kΩ |
| Input filter limit frequency | 1 kHz |
| Dielectric strength | max. 30 V |
| Resolution | 12 bit (16 bit presentation incl. sign) |
| Electrical isolation | 500 V (E-bus/signal voltage) |
| Current consumption E-bus | typ. 130 mA |
| Bit width in the process image inputs | 16 byte |
| Operating/storage temperature | -25…+60 °C/-40…+85 °C |
| Dimensions (W x H x D) | 12 mm x 100 mm x 68 mm |
Information About EL3064
The EL3064 by BECKHOFF is an advanced EtherCAT Terminal designed for precise analog input in industrial settings. This module features four channels dedicated to voltage measurement within the 0 to 10 V range. With a 12-bit resolution, it ensures exceptional accuracy in capturing and digitizing analog signals, providing fine-grained data for critical industrial processes.
The four-channel configuration enhances flexibility, allowing simultaneous monitoring of multiple voltage sources. This capability is particularly valuable in applications where diverse analog inputs must be monitored and controlled within a unified system.
Operating in a single-ended configuration, the EL3064 integrates seamlessly into EtherCAT networks, facilitating real-time communication and synchronization. Its compatibility with the EtherCAT protocol ensures efficient data exchange, minimizing latency and enhancing the overall responsiveness of the industrial automation system.
Installation and configuration are streamlined, thanks to BECKHOFF's user-friendly engineering tools. The EL3064 adheres to industry standards, ensuring interoperability and reliability in diverse automation ecosystems. Its robust design and efficient analog signal processing make it suitable for applications where precise voltage measurements are paramount, such as in manufacturing, process control, and laboratory environments.
Manufacturer information
Beckhoff Automation is a German manufacturer of open automation systems, including industrial PCs, I/O and fieldbus components, drive technology, automation software, and hardware for machine vision. Beckhoff is known for its innovative and reliable automation technology, which is used in a wide range of industries. The company is committed to providing customers with the best possible automation solutions to help them succeed in their businesses.
Description
The EL3064 analog input terminal processes signals in the range between 0 and 10 V. The voltage is digitised with a resolution of 12 bits and is transmitted (electrically isolated) to the higher-level automation device. The EL3064 EtherCAT Terminal features 2-wire conductors for the four single-ended inputs with a common internal ground potential. The power contacts are connected through. The signal state of the EtherCAT Terminal is indicated by light emitting diodes.
Technical Specifications
| Manufacturer | BECKHOFF |
| Part Number | EL3064 |
| Number of inputs | 4 (single-ended) |
| Signal voltage | 0…10 V |
| Internal resistance | > 130 kΩ |
| Input filter limit frequency | 1 kHz |
| Dielectric strength | max. 30 V |
| Resolution | 12 bit (16 bit presentation incl. sign) |
| Electrical isolation | 500 V (E-bus/signal voltage) |
| Current consumption E-bus | typ. 130 mA |
| Bit width in the process image inputs | 16 byte |
| Operating/storage temperature | -25…+60 °C/-40…+85 °C |
| Dimensions (W x H x D) | 12 mm x 100 mm x 68 mm |
Information About EL3064
The EL3064 by BECKHOFF is an advanced EtherCAT Terminal designed for precise analog input in industrial settings. This module features four channels dedicated to voltage measurement within the 0 to 10 V range. With a 12-bit resolution, it ensures exceptional accuracy in capturing and digitizing analog signals, providing fine-grained data for critical industrial processes.
The four-channel configuration enhances flexibility, allowing simultaneous monitoring of multiple voltage sources. This capability is particularly valuable in applications where diverse analog inputs must be monitored and controlled within a unified system.
Operating in a single-ended configuration, the EL3064 integrates seamlessly into EtherCAT networks, facilitating real-time communication and synchronization. Its compatibility with the EtherCAT protocol ensures efficient data exchange, minimizing latency and enhancing the overall responsiveness of the industrial automation system.
Installation and configuration are streamlined, thanks to BECKHOFF's user-friendly engineering tools. The EL3064 adheres to industry standards, ensuring interoperability and reliability in diverse automation ecosystems. Its robust design and efficient analog signal processing make it suitable for applications where precise voltage measurements are paramount, such as in manufacturing, process control, and laboratory environments.
Manufacturer information
Beckhoff Automation is a German manufacturer of open automation systems, including industrial PCs, I/O and fieldbus components, drive technology, automation software, and hardware for machine vision. Beckhoff is known for its innovative and reliable automation technology, which is used in a wide range of industries. The company is committed to providing customers with the best possible automation solutions to help them succeed in their businesses.
