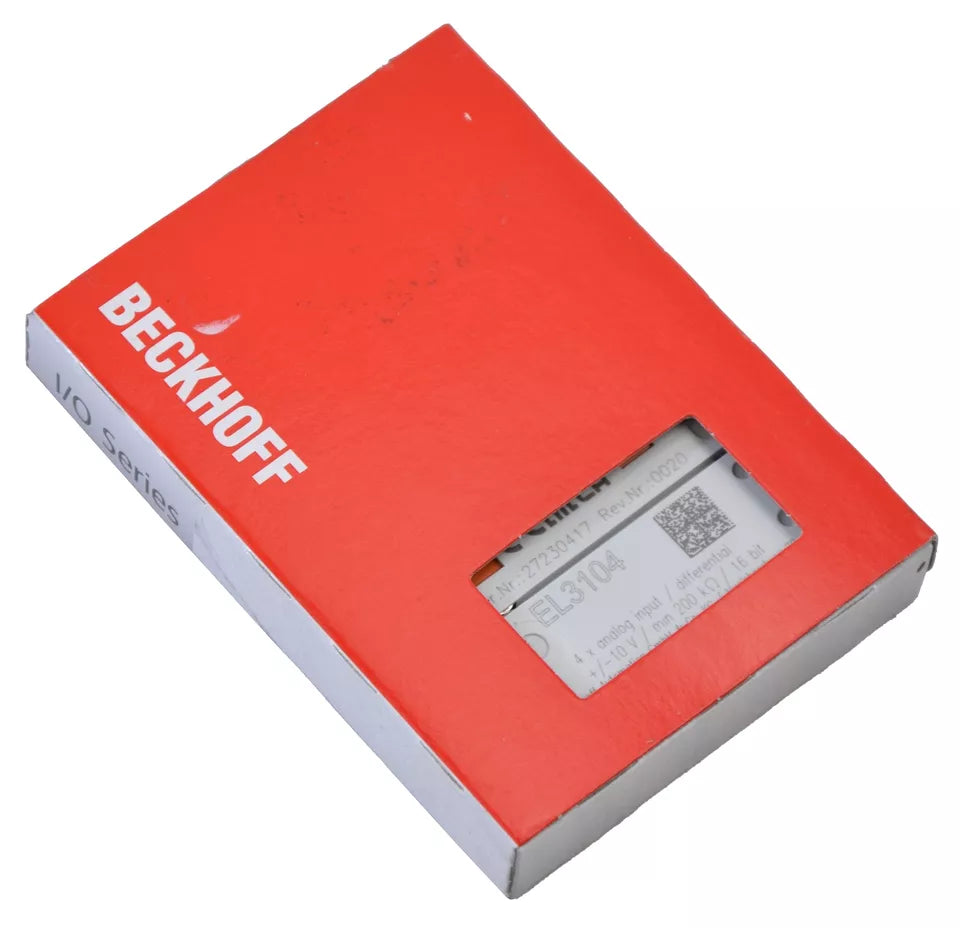

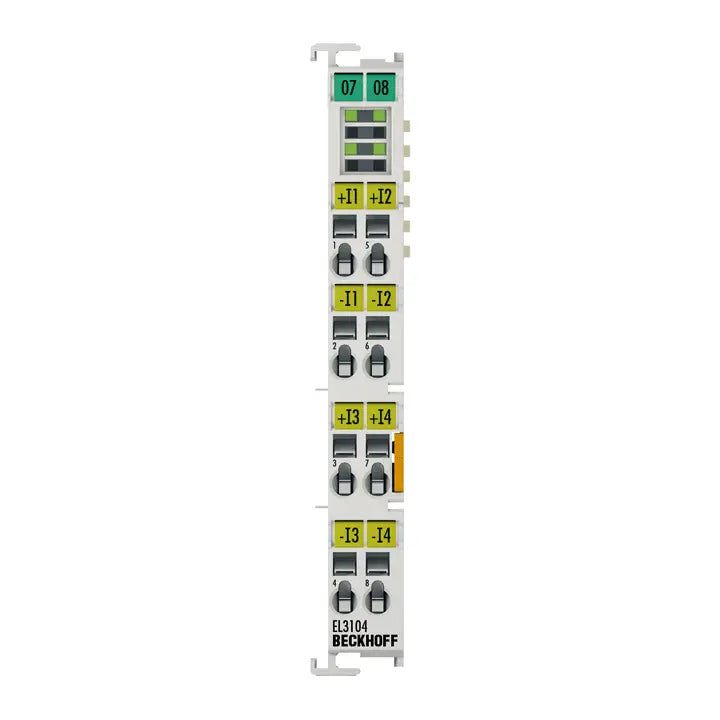

EL3104 | BECKHOFF EtherCAT Terminal, 4-channel analog input, voltage, ±10 V, 16 bit, differential
- Regular price
- $525.00
- Sale price
- $525.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: EL3104
Description
The EL3104 analog input terminal processes signals in the range between -10 and +10 V. The voltage is digitized to a resolution of 16 bits, and is transmitted, electrically isolated, to the higher-level automation device. The input channels of the EL3104 EtherCAT Terminal are differential inputs. The signal state of the EtherCAT Terminal is indicated by light emitting diodes.
Technical Specifications
| Condition | New / Never Used Surplus |
| Manufacturer | BECKHOFF |
| Category | PLCs/Machine Control |
| Subcategory | PLC Programming Terminal |
| Part Number | EL3104 |
| Number of inputs | 4 (differential) |
| Power supply | via the E-bus |
| Technology | differential input |
| Signal type | differential |
| Signal voltage | -10…+10 V |
| Distributed clocks | yes |
| Distributed clock precision | << 1 µs |
| Internal resistance | > 200 kΩ |
| Input filter limit frequency | 5 kHz |
| Common-mode voltage | UCM max. 35 V (relative to GND power contact) |
| Conversion time | ~ 100 µs |
| Resolution | 16 bit (incl. sign) |
| Measurement error/ uncertainty | < ±0.3 % (relative to full scale value) |
| Electrical isolation | 500 V (E-bus/signal voltage) |
| Current consumption E-bus | typ. 130 mA |
| Configuration | no address or configuration setting |
| Special features | standard and compact process image, switchable measuring data representation, activatable FIR/IIR filters, limit value monitoring |
| Operating/storage temperature | -25…+60 °C/-40…+85 °C |
| Relative humidity | 95 %, no condensation |
| Vibration/shock resistance | conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission | conforms to EN 61000-6-2/EN 61000-6-4 |
| Protect. rating/installation pos. | IP20/variable |
| Pluggable wiring | for all ESxxxx terminals |
| Approvals/markings | CE, UL, ATEX, IECEx, cFMus |
| Material | polycarbonate |
| Dimensions (W x H x D) | 12 mm x 100 mm x 68 mm |
| Installation | on 35 mm DIN rail, conforming to EN 60715 with lock |
| Side by side mounting by means of | double slot and key connection |
Information About EL3104
The BECKHOFF EL3104 is an advanced EtherCAT Terminal with four channels of differential analog input designed for voltage signals within a range of ±10 V. Operating with high precision at 16-bit resolution, it ensures accurate and reliable measurements for industrial automation.
Powered via the E-bus, this terminal utilizes differential input technology with a signal type of differential voltage, spanning -10 to +10 V. It supports distributed clocks with precision below 1 µs, providing synchronized data acquisition. The internal resistance is over 200 kΩ, and the input filter has a limit frequency of 5 kHz.
The EL3104 boasts a common-mode voltage of UCM max. 35 V relative to GND power contact, ensuring robust performance in various scenarios. With a quick conversion time of approximately 100 µs and a resolution of 16 bits (including sign), it delivers precise measurements.
Featuring electrical isolation up to 500 V between the E-bus and signal voltage, the terminal ensures safety. It has a typical E-bus current consumption of 130 mA and requires no address or configuration setting, streamlining integration.
Additional features include standard and compact process image support, switchable measuring data representation, activatable FIR/IIR filters, and limit value monitoring. Operating in a temperature range of -25 to +60 °C and providing robust EMC immunity and emission compliance, it is suitable for demanding industrial environments.
With approvals such as CE, UL, ATEX, IECEx, and cFMus, and constructed from polycarbonate, the EL3104 has dimensions of 12 mm x 100 mm x 68 mm. It can be installed on a 35 mm DIN rail according to EN 60715 with lock and supports side-by-side mounting through a double slot and key connection. The terminal ensures reliable and accurate analog input for a variety of industrial applications.
Manufacturer information
Beckhoff Automation is a German manufacturer of open automation systems, including industrial PCs, I/O and fieldbus components, drive technology, automation software, and hardware for machine vision. Beckhoff is known for its innovative and reliable automation technology, which is used in a wide range of industries. The company is committed to providing customers with the best possible automation solutions to help them succeed in their businesses.
