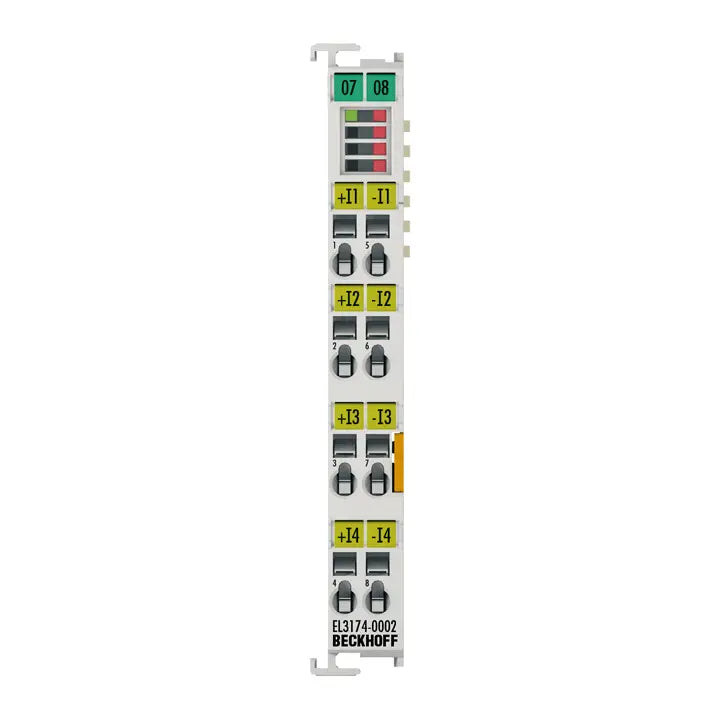

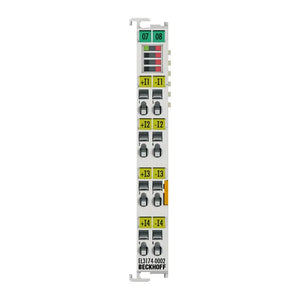

EL3174-0002 | Beckhoff EtherCAT 4-Channel Analog Input Terminal, ±10 V / ±20 mA
- Regular price
- $988.00
- Sale price
- $988.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: EL3174-0002
Description
The Beckhoff EL3174-0002 is a 4-channel multifunction analog input EtherCAT terminal designed for high-precision voltage and current measurement. Supporting ±10 V and ±20 mA input ranges at 16-bit resolution, it features differential inputs, electrical isolation, and distributed clock support for synchronized data acquisition.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Beckhoff |
| Category | Industrial Automation |
| Part Number | EL3174-0002 |
| Subcategory | EtherCAT Analog Input Terminal |
| Number of Inputs | 4 |
| Input Type | Differential analog input |
| Input Ranges (Nominal) | ±10 V, ±20 mA |
| Input Ranges (Technical) | -10.73…+10.73 V, -21.47…+21.47 mA |
| Power Supply | Via E-bus |
| Resolution | 16-bit (including sign) |
| Measurement Error / Uncertainty | < ±0.2% (at 25°C ±5°C); otherwise < ±0.3% FS |
| Electrical Isolation | 2500 V (channel/channel and channel/fieldbus) |
| Internal Resistance | > 200 kΩ (voltage) / typ. 85 Ω (current) |
| Input Filter Limit Frequency | 5 kHz |
| Conversion Time | Minimum 150 µs |
| Distributed Clocks | Supported |
| Distributed Clock Precision | << 1 µs |
| Special Features | U/I parameterizable, ExtendedRange, FIR/IIR filters, standard and compact process image |
| Bit Width in Process Image | 16 bytes (input) |
| Current Consumption (E-bus) | Typ. 150 mA |
| Protection Rating | IP20 |
| Operating Temperature | -25°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | Up to 95%, non-condensing |
| Dimensions (W × H × D) | 12 mm × 100 mm × 68 mm |
| Weight | 0.13 lbs (approx. 65 g) |
Information About EL3174-0002
The EL3174-0002 belongs to Beckhoff’s EtherCAT I/O terminal family and serves as a high-performance analog input module for precise measurement of voltage and current signals. It provides four differential input channels that can be individually parameterized for either voltage (±10 V) or current (±20 mA) signals. Featuring 16-bit resolution and distributed clock synchronization, it ensures accurate and time-aligned data acquisition across EtherCAT networks. The terminal includes electrical isolation up to 2500 V between channels and the fieldbus, enhancing system safety and signal integrity. Its ExtendedRange technology and integrated digital filters allow for flexible signal conditioning and noise suppression, making it suitable for dynamic process monitoring and high-accuracy control applications.
Key Features:
- Multifunctional Input Design: Each of the four channels can be individually configured for voltage or current measurement.
- High-Resolution Measurement: 16-bit conversion provides precise signal acquisition for analog process control.
- Electrical Isolation: 2500 V functional isolation between channels and bus ensures signal protection and system safety.
- Fast Conversion: Minimum conversion time of 150 µs for rapid data sampling and process responsiveness.
- Distributed Clock Support: Enables synchronized, system-wide sampling with microsecond-level accuracy.
- Programmable Filtering: Integrated FIR/IIR filters enhance measurement stability by reducing noise.
- Extended Operating Range: Supports voltages and currents beyond nominal values for versatile application use.
- Compact EtherCAT Integration: 12 mm width saves space while maintaining compatibility with Beckhoff I/O systems.
The EL3174-0002 delivers the reliability and precision required for industrial analog measurement, process monitoring, and high-speed automation control systems.
