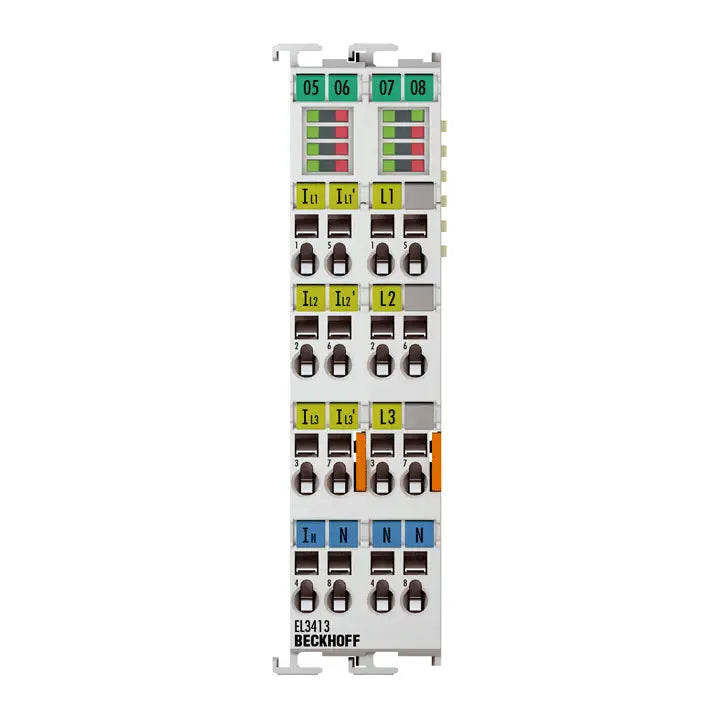

EL3413 | Beckhoff EtherCAT 3-Channel Power Measurement Terminal 690 V AC
- Regular price
- $335.00
- Sale price
- $335.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: EL3413
Description
The Beckhoff EL3413 is a 3-channel EtherCAT analog input terminal for power measurement applications supporting voltages up to 690 V AC and currents up to 5 A. It provides precise 16-bit resolution measurements for voltage, current, power, energy, and frequency, making it suitable for high-performance industrial and renewable energy monitoring.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Beckhoff |
| Category | Industrial Automation |
| Part Number | EL3413 |
| Subcategory | EtherCAT Power Measurement Terminal |
| Technology | 3-phase power measurement for alternating voltages |
| Number of Inputs | 4 × current, 3 × voltage |
| Signal Type | Single-ended |
| Measuring Voltage | Max. 690 V AC 3~ (ULX-N: max. 400 V AC) |
| Measuring Current | Adjustable: 100 mA AC, 1 A AC (default), 5 A AC; potential-free |
| Resolution | 16-bit (1 μA, 0.1 mV, 10 mW) |
| Measured Values | Current (I1, I2, I3, In), voltage, active/reactive/apparent power, energy, cos φ, frequency, harmonics |
| Measurement Error/Uncertainty | 0.5% (U/I full scale), 1% (calculated value) |
| Electrical Isolation | 4500 V |
| Conversion Time | Mains-synchronous |
| Special Features | Galvanically isolated current inputs, harmonic analysis, optional single-phase operation |
| Current Consumption (E-Bus) | Typ. 160 mA |
| Protection Rating | IP20 |
| Operating Temperature | -25°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 95%, non-condensing |
| Vibration/Shock Resistance | EN 60068-2-6 / EN 60068-2-27 compliant |
| EMC Compliance | EN 61000-6-2 / EN 61000-6-4 |
| Approvals | CE |
| Dimensions (W × H × D) | 24 mm × 100 mm × 68 mm |
| Weight | 0.20 lbs (approx. 100 g) |
Information About EL3413
The EL3413 is part of Beckhoff’s EtherCAT I/O series and serves as an advanced 3-phase power measurement terminal designed for direct connection to high-performance generators and electrical systems. Supporting up to 690 V AC, it eliminates the need for upstream voltage transformers, simplifying system integration in power distribution and renewable energy applications. Its galvanically isolated current inputs allow safe and flexible use with 2- or 3-transformer configurations, including star and delta systems. The terminal provides detailed power analysis, including active, reactive, and apparent power, energy values, and harmonic analysis up to the 21st harmonic, all available through process data.
Key Features:
- High-Voltage Capability: Measures voltages up to 690 V AC directly, removing the need for external voltage transformers.
- Flexible Current Range: Adjustable current inputs (100 mA to 5 A) with galvanic isolation for versatile system configurations.
- Comprehensive Power Analysis: Delivers accurate measurement of voltage, current, power, energy, and frequency values in real time.
- Harmonic Analysis: Supports harmonic content analysis up to the 21st order for network quality assessment.
- Precision and Stability: Provides 16-bit measurement resolution with only 0.5% error relative to full-scale readings.
- Safe and Reliable Design: Features 4500 V isolation and CE certification for safe use in industrial and energy environments.
- Direct Generator Monitoring: Optimized for high-performance generator applications such as those in the wind energy sector.
- Compact and Durable Form Factor: Built to withstand harsh environmental conditions with IP20 protection and -25°C to +60°C operating range.
The EL3413 delivers the reliability and precision required for industrial power monitoring, energy management, and harmonic analysis in advanced automation systems.
