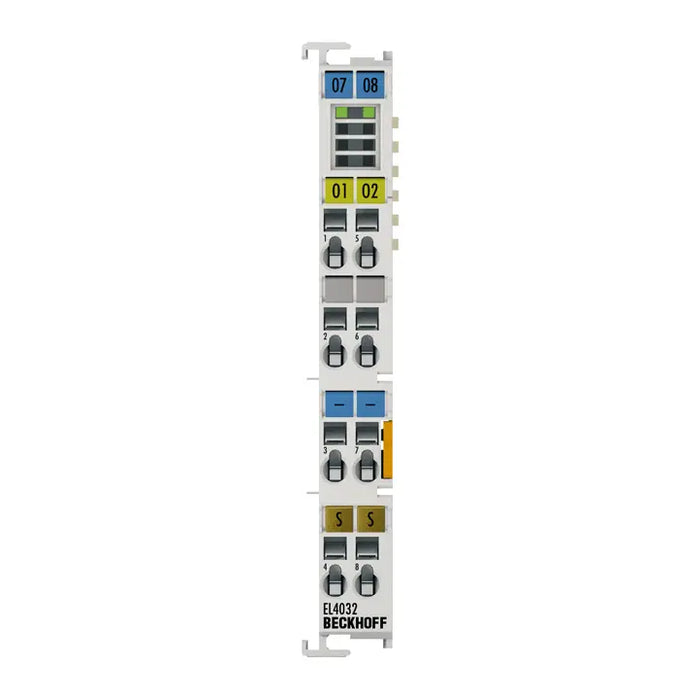

EL4032 | Beckhoff EtherCAT Terminal, 2-Channel Analog Output, ±10 V, 12 Bit
- Regular price
- $410.00
- Sale price
- $410.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: EL4032
Description
The Beckhoff EL4032 is a 2-channel EtherCAT Terminal designed for precise analog voltage output applications. With a resolution of 12 bits and a voltage range of ±10 V, it delivers reliable signal generation for control and automation systems.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Beckhoff |
| Category | EtherCAT Terminals |
| Part Number | EL4032 |
| Subcategory | Analog Output Terminals |
| Number of Outputs | 2 |
| Signal Voltage | -10…+10 V |
| Resolution | 12 bit |
| Output Error | < 0.1% (relative to end value) |
| Conversion Time | ~150 µs |
| Distributed Clocks | Yes |
| Clock Precision | << 1 µs |
| Load | > 5 kΩ (short-circuit proof) |
| Electrical Isolation | 500 V (E-bus/signal voltage) |
| Current Consumption (Contacts) | typ. 40 mA |
| Current Consumption (E-bus) | typ. 140 mA |
| Process Image Width | 2 × 16 bit AO output |
| Special Features | Watchdog with ramp function, user synchronization |
| Power Supply | 24 V DC via power contacts |
| Protection Rating | IP20 |
| Operating Temperature | -25…+60°C |
| Storage Temperature | -40…+85°C |
| Relative Humidity | 95%, no condensation |
| Standards Compliance | EN 61000-6-2, EN 61000-6-4, EN 60068-2-6, EN 60068-2-27 |
| Weight | 55 g (approx. 0.12 lbs) |
Information About EL4032
The EL4032 is part of Beckhoff’s EtherCAT I/O system, enabling flexible and distributed automation solutions with high precision. Operating with distributed clock synchronization of less than 1 µs, the terminal ensures accurate signal timing for demanding real-time control tasks. It features short-circuit proof outputs, electrical isolation of 500 V, and user-friendly watchdog functions with customizable ramp outputs for added safety and reliability. Its compact IP20-rated design allows for easy installation in standard control cabinets while supporting a wide operating temperature range of -25…+60°C.
Key Features:
-
Dual Output Channels: Provides 2 analog outputs for voltage signals in the ±10 V range, supporting flexible automation tasks.
-
High Accuracy: Offers 12-bit resolution with an output error of less than 0.1%, ensuring reliable and precise analog signal generation.
-
Distributed Clock Support: Enables synchronization with << 1 µs precision, critical for time-sensitive industrial control processes.
-
Robust Electrical Isolation: 500 V isolation between E-bus and signal voltage enhances safety and reduces interference.
-
Fast Conversion Time: Approximately 150 µs conversion speed supports dynamic applications requiring rapid updates.
-
Flexible Load Handling: Designed for loads greater than 5 kΩ with short-circuit protection for long-term reliability.
-
User-Friendly Safety Features: Integrated watchdog allows user-specific output values with ramp functions and optional synchronization.
-
Compact and Lightweight Design: At just 55 g, it is space-efficient and suitable for dense I/O configurations.
-
Environmental Durability: Operates in -25…+60°C, withstands vibration and shock per EN standards, and complies with EMC immunity/emission requirements.
-
Seamless Integration: Easily integrates into Beckhoff’s modular EtherCAT environment with 2 × 16-bit process image mapping.
The EL4032 delivers the reliability and precision required for analog signal control in advanced automation environments.
Description
The Beckhoff EL4032 is a 2-channel EtherCAT Terminal designed for precise analog voltage output applications. With a resolution of 12 bits and a voltage range of ±10 V, it delivers reliable signal generation for control and automation systems.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Beckhoff |
| Category | EtherCAT Terminals |
| Part Number | EL4032 |
| Subcategory | Analog Output Terminals |
| Number of Outputs | 2 |
| Signal Voltage | -10…+10 V |
| Resolution | 12 bit |
| Output Error | < 0.1% (relative to end value) |
| Conversion Time | ~150 µs |
| Distributed Clocks | Yes |
| Clock Precision | << 1 µs |
| Load | > 5 kΩ (short-circuit proof) |
| Electrical Isolation | 500 V (E-bus/signal voltage) |
| Current Consumption (Contacts) | typ. 40 mA |
| Current Consumption (E-bus) | typ. 140 mA |
| Process Image Width | 2 × 16 bit AO output |
| Special Features | Watchdog with ramp function, user synchronization |
| Power Supply | 24 V DC via power contacts |
| Protection Rating | IP20 |
| Operating Temperature | -25…+60°C |
| Storage Temperature | -40…+85°C |
| Relative Humidity | 95%, no condensation |
| Standards Compliance | EN 61000-6-2, EN 61000-6-4, EN 60068-2-6, EN 60068-2-27 |
| Weight | 55 g (approx. 0.12 lbs) |
Information About EL4032
The EL4032 is part of Beckhoff’s EtherCAT I/O system, enabling flexible and distributed automation solutions with high precision. Operating with distributed clock synchronization of less than 1 µs, the terminal ensures accurate signal timing for demanding real-time control tasks. It features short-circuit proof outputs, electrical isolation of 500 V, and user-friendly watchdog functions with customizable ramp outputs for added safety and reliability. Its compact IP20-rated design allows for easy installation in standard control cabinets while supporting a wide operating temperature range of -25…+60°C.
Key Features:
-
Dual Output Channels: Provides 2 analog outputs for voltage signals in the ±10 V range, supporting flexible automation tasks.
-
High Accuracy: Offers 12-bit resolution with an output error of less than 0.1%, ensuring reliable and precise analog signal generation.
-
Distributed Clock Support: Enables synchronization with << 1 µs precision, critical for time-sensitive industrial control processes.
-
Robust Electrical Isolation: 500 V isolation between E-bus and signal voltage enhances safety and reduces interference.
-
Fast Conversion Time: Approximately 150 µs conversion speed supports dynamic applications requiring rapid updates.
-
Flexible Load Handling: Designed for loads greater than 5 kΩ with short-circuit protection for long-term reliability.
-
User-Friendly Safety Features: Integrated watchdog allows user-specific output values with ramp functions and optional synchronization.
-
Compact and Lightweight Design: At just 55 g, it is space-efficient and suitable for dense I/O configurations.
-
Environmental Durability: Operates in -25…+60°C, withstands vibration and shock per EN standards, and complies with EMC immunity/emission requirements.
-
Seamless Integration: Easily integrates into Beckhoff’s modular EtherCAT environment with 2 × 16-bit process image mapping.
The EL4032 delivers the reliability and precision required for analog signal control in advanced automation environments.
