EL6652 | Beckhoff EtherCAT Terminal, 2-Port EtherNet/IP Scanner Interface
- Regular price
- $622.00
- Sale price
- $622.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: EL6652
Description

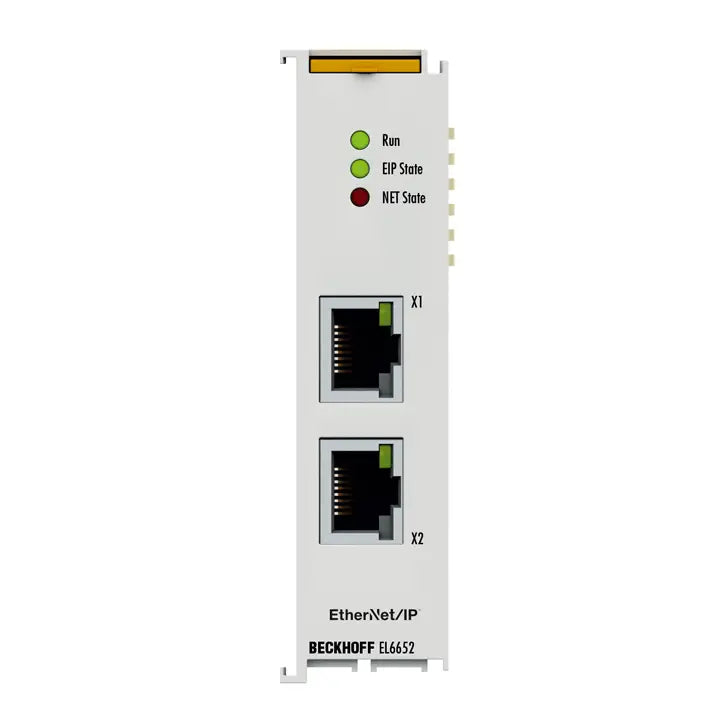

The Beckhoff EL6652 is a 2-port EtherNet/IP scanner terminal designed for integrating EtherNet/IP devices into EtherCAT systems. It enables an EtherCAT master to configure and exchange process data with connected EtherNet/IP nodes using unicast or multicast communication. With support for up to 16 slave devices and flexible data mapping, the EL6652 provides efficient and scalable industrial networking.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Beckhoff |
| Category | PLCs/Machine Control |
| Part Number | EL6652 |
| Subcategory | PLC Programming Terminal |
| Current Consumption (E-bus) | typ. 400 mA |
| Number of Ports | 2 × RJ45 |
| Communication Protocol | EtherNet/IP (Scanner/Master) |
| Max. Slave Nodes | 16 |
| Data Width | Up to 1 kB input + 1 kB output |
| Transmission Mode | Unicast and Multicast |
| Power Supply | Via E-bus |
| Housing Width | 24 mm |
| Operating Temperature | 0…55°C |
| Relative Humidity | Up to 95% (non-condensing) |
| Diagnostics | Status LEDs |
| Ethernet Type | 100BASE-TX |
| Mounting | DIN rail (EtherCAT terminal system) |
| Approvals | CE, UL |
Information About EL6652
The EL6652 is an EtherNet/IP master terminal within the Beckhoff EtherCAT I/O series, used to bridge EtherCAT networks with EtherNet/IP field devices. Built in a 24 mm housing, it incorporates a switched 2-port Ethernet interface to allow linear topologies and simplified wiring. It integrates seamlessly with EtherCAT masters, which define the process data structure and size based on application needs. Suitable for real-time industrial communication, the EL6652 is typically deployed in systems requiring interoperability between EtherCAT controllers and EtherNet/IP components such as drives, sensors, and distributed I/O.
Key Features:
- EtherNet/IP scanner functionality: Supports master-mode communication with up to 16 slave devices.
- Dual RJ45 switched ports: Enables line topology and simplified daisy-chain network wiring.
- Flexible process data mapping: Supports up to 1 kB of input and 1 kB of output data.
- Unicast and multicast support: Allows efficient data distribution across the network.
- E-bus powered operation: Eliminates external power wiring for installation convenience.
- Built-in status LEDs: Provides hardware diagnostics for network and module status.
- Compact 24 mm housing: Saves panel space in distributed control architectures.
- Wide environmental tolerance: Operates from 0°C to 55°C with up to 95% relative humidity.
The EL6652 delivers the reliability and precision required for robust EtherCAT-to-EtherNet/IP communication in modern automation systems.
