Product Description P/N: EL6695

Description / Specifications

Description

EL6695 is an EL6xxx series terminal manufactured by Beckhoff. This terminal weighs approx. 75 g, operates at a temperature range of 0 to 55 degrees Celsius, and its current consumption (from the E-bus) is 400 mA.



Technical Specifications



Manufacturer BECKHOFF
Category PLCs/Machine Control
Subcategory PLC Programming Terminal
Part Number EL6695
Connector RJ45
Voltage 100 to 240VAC
Data Rate 10/100Base T
Operating voltage range 85 to 264VAC
Power holding time 2 ms min.
Baud Rate 125K bps
Output Type FET
Length <500 meters
Operating Frequency 100 Hz
Protocols Custom protocol
On-state Current, Max 200mA
Resolution 16-bit
Voltage Range 12V-24V DC
Input Range 4~20mA
Off-state Voltage 8V DC
Input Type Single ended
Typical Input Current 5mA 10VDC
Input Impedance 170Ω
Input Frequency 10KHz with filters off





Information About EL6695

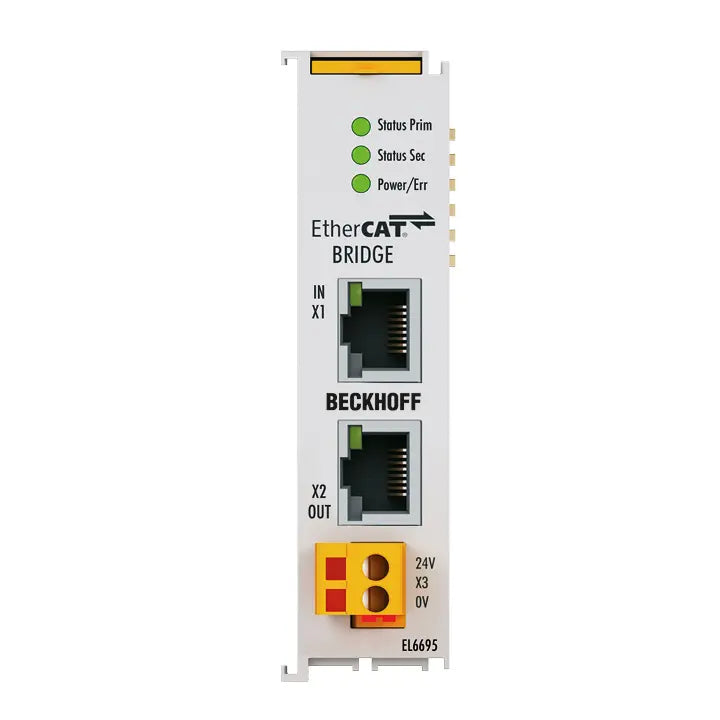

The EL6695 EtherCAT bridge terminal enables real-time data exchange between EtherCAT Terminal strands with different masters. Asynchronous communication via AoE, FoE, EoE, NPI, etc. is also supported. Synchronization of distributed clocks is possible in both directions. The EL6695 differs from the EL6692 (which will continue to be available) in terms of a flexible CoE configuration, a device emulation option and a significant increase in data throughput. A convenient configuration interface is available in the TwinCAT System Manager, as with the EL6692. The power supply for the secondary side (RJ45) is via an external connection, the primary side is supplied via the E-bus. The bridge terminal can also be used for integrating a subordinate PC system as an EtherCAT slave.

The EL6695 is one of the several EtherCAT bridge terminals from Beckhoff Automation. This bridge terminal supports real-time data exchange between several EtherCAT terminal strands using different masters. The accessory features a flexible CoE configuration. It encompasses a reasonably high data throughput and a device emulation option. The unit can be diagnosed with the help of status LEDs. The terminal has a compact polycarbonate housing with a signal LED. The terminal can be mounted on a 35mm C-rail which is in accordance with EN 60175 specifications, with lock. It has a minimum EtherCAT cycle time of 50µs.

The bridge terminal supports a Cage Clamp wiring mechanism with a spring-loaded technique. The accessory has a stripping length ranging between 8mm and 9mm. The power supply for the primary side is received through an E-bus and an external connection for the secondary RJ 45 side. The unit offers assistance for asynchronous communication through AoE, NPI, EoE and FoE among other protocols. The accessory must be stored at temperatures between -25°C and +85°C and operated at temperatures between 0°C and 55°C. Relative humidity should be 95% without condensation. It can be used as an external reference clock in TwinCAT, has flexible PDO mapping and features synchronous data exchange.

Many bridge terminals can be connected side by side using a double slot and key connection. The EMC immunity/emission of this device conforms to EN 61000-6-2 or EN 61000-6-4 specifications. The accessory is equipped with three spring power contacts. It has a maximum current load of 10A and a nominal voltage rating of 24V DC. The unit features standard terminal block marking and distributed clocks. The EtherCAT terminal measures 24mm x 100mm x 52mm (W x H x D) and weighs nearly 75g.
