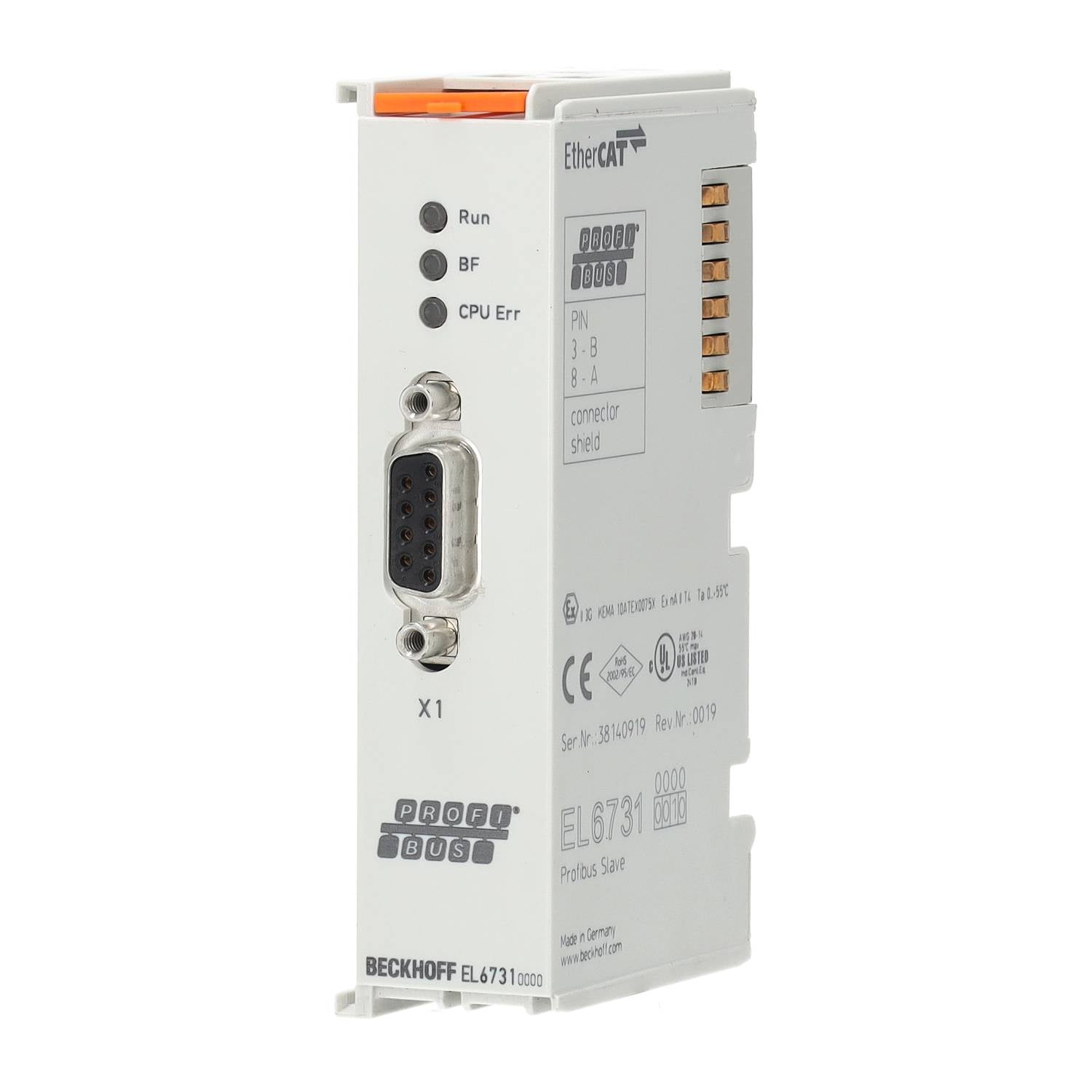

EL6731-0000 | Beckhoff EtherCAT Terminal PROFIBUS Master/Slave Interface 1-Channel
EL6731-0000 | Beckhoff EtherCAT Terminal PROFIBUS Master/Slave Interface 1-Channel
EL6731-0000 | Beckhoff EtherCAT Terminal PROFIBUS Master/Slave Interface 1-Channel
    EL6731-0000 | Beckhoff EtherCAT Terminal PROFIBUS Master/Slave Interface 1-Channel
EL6731-0000 | Beckhoff EtherCAT Terminal PROFIBUS Master/Slave Interface 1-Channel

EL6731-0000 | Beckhoff EtherCAT Terminal PROFIBUS Master/Slave Interface 1-Channel

Part #: EL6731-0000 Manufactured by: Beckhoff
Regular price
$485.00
Sale price
$485.00
Regular price
1 in Stock
Condition: New-Surplus Original Box
Shipping calculated at checkout.
Product Overview
The EL6731-0000 is a Beckhoff EtherCAT terminal that provides a high-performance PROFIBUS master/slave interface. With fle...  Read more
We accept:
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa
warranty
IQElectro 2-Year Warranty
Warranty for Product #: EL6731-0000
IQElectro offers a free 2-year warranty on all products. You can trust that every purchase is a reliable investment in the future of your company. Warranty Terms
2-3 Day Free Shipping
Packed Ready to Ship
24/7 Expert Support
Return within 30-Days
IQElectro LLC BBB Business Review
IQElectro is Not an authorized distributor for Beckhoff
Original Manufacturer's Warranty Not Covered, This Product is SURPLUS.

Product Description P/N: EL6731-0000

Description / Specifications

Description

The Beckhoff EL6731-0000 is a 1-channel EtherCAT communication terminal for PROFIBUS networks, supporting both master and slave modes. With data rates up to 12 Mbaud and cycle times from 200 µs, it enables fast and reliable integration of PROFIBUS devices into EtherCAT systems.





Technical Specifications

Condition New/Never Used Surplus
Brand Beckhoff
Category I/O Terminals
Part Number EL6731-0000
Subcategory Communication Terminals
Protocols Supported PROFIBUS DP, DP-V1 (Class 1+2), DP-V2, PROFIBUS MC
Module Type 1-channel communication interface
Data Transfer Rate 9.6 kbaud to 12 Mbaud
Operating Mode PROFIBUS master or slave
Max Slaves Supported 125
Max Data per Slave 244 bytes (I/O/param/config/diag)
Process Image Bit Width Input: 1.4 kB, Output: 1.4 kB
Cycle Times From 200 µs
Interface 1 × 9-pin D-sub, galvanically isolated
Current Consumption (E-bus) typ. 200 mA
Distributed Clocks Yes
Hardware Diagnostics Status LEDs
Error Management Freely configurable per bus user
Configuration Features Automatic bus configuration, GSD file assignment
Operating Temperature -25…+60 °C
Storage Temperature -40…+85 °C




Information About EL6731-0000

The EL6731-0000 is part of Beckhoff’s EtherCAT communication terminal family, designed to connect PROFIBUS devices directly into EtherCAT networks. It supports PROFIBUS DP, DP-V1, and DP-V2 standards, making it compatible with a wide range of automation devices. The terminal can operate as either a PROFIBUS master or slave, offering flexibility in network design and expansion. With fast cycle times from 200 µs, distributed clock support, and powerful diagnostics, the EL6731-0000 ensures precise communication and reliable synchronization across automation systems.

Key Features:

  • 1-Channel PROFIBUS Interface: Provides one channel for PROFIBUS communication with master or slave configuration.

  • Flexible Protocol Support: Compatible with PROFIBUS DP, DP-V1 (Class 1+2), DP-V2, and PROFIBUS MC for wide application coverage.

  • High-Speed Communication: Supports baud rates from 9.6 kbaud up to 12 Mbaud for demanding industrial environments.

  • Large Device Capacity: Connects up to 125 slaves, with up to 244 bytes of data per slave for process, parameter, configuration, and diagnostics.

  • Fast Cycle Times: Offers cycle times from 200 µs, enabling real-time communication in automation systems.

  • Advanced Synchronization: Distributed clock capability ensures precise timing between PROFIBUS and EtherCAT networks.

  • Robust Diagnostics: Hardware status LEDs and software tools provide detailed monitoring and troubleshooting.

  • Configurable Error Management: Allows per-device error handling strategies to improve system reliability.

  • Automatic Bus Configuration: Supports reading of bus topology and automatic assignment of GSD files to simplify setup.

  • Industrial Reliability: Operates reliably in harsh environments with temperatures from -25 °C to +60 °C.

The EL6731-0000 delivers the reliability and precision required for seamless PROFIBUS integration into EtherCAT-based industrial automation systems.

IQElectro is not an authorized distributor.
IQElectro LLC (IQElectro) is NOT an Authorized Distributor or in any way affiliated with Rockwell Automation, Siemens, or any other Manufacturers. IQElectro is NOT an Authorized Dealer of this product. The product may be of older version, date codes, or design than that available from authorized dealers. As IQElectro is not an authorized dealer of this product, the Original Manufacturer's Warranty and Support DO NOT apply. IQElectro sells SURPLUS only and DOES NOT SELL SOFTWARE or FIRMWARE licenses For more detailed information, please refer to the full version of our disclaimer policy Disclaimer Policy.
Description / Specifications

Description

The Beckhoff EL6731-0000 is a 1-channel EtherCAT communication terminal for PROFIBUS networks, supporting both master and slave modes. With data rates up to 12 Mbaud and cycle times from 200 µs, it enables fast and reliable integration of PROFIBUS devices into EtherCAT systems.





Technical Specifications

Condition New/Never Used Surplus
Brand Beckhoff
Category I/O Terminals
Part Number EL6731-0000
Subcategory Communication Terminals
Protocols Supported PROFIBUS DP, DP-V1 (Class 1+2), DP-V2, PROFIBUS MC
Module Type 1-channel communication interface
Data Transfer Rate 9.6 kbaud to 12 Mbaud
Operating Mode PROFIBUS master or slave
Max Slaves Supported 125
Max Data per Slave 244 bytes (I/O/param/config/diag)
Process Image Bit Width Input: 1.4 kB, Output: 1.4 kB
Cycle Times From 200 µs
Interface 1 × 9-pin D-sub, galvanically isolated
Current Consumption (E-bus) typ. 200 mA
Distributed Clocks Yes
Hardware Diagnostics Status LEDs
Error Management Freely configurable per bus user
Configuration Features Automatic bus configuration, GSD file assignment
Operating Temperature -25…+60 °C
Storage Temperature -40…+85 °C




Information About EL6731-0000

The EL6731-0000 is part of Beckhoff’s EtherCAT communication terminal family, designed to connect PROFIBUS devices directly into EtherCAT networks. It supports PROFIBUS DP, DP-V1, and DP-V2 standards, making it compatible with a wide range of automation devices. The terminal can operate as either a PROFIBUS master or slave, offering flexibility in network design and expansion. With fast cycle times from 200 µs, distributed clock support, and powerful diagnostics, the EL6731-0000 ensures precise communication and reliable synchronization across automation systems.

Key Features:

  • 1-Channel PROFIBUS Interface: Provides one channel for PROFIBUS communication with master or slave configuration.

  • Flexible Protocol Support: Compatible with PROFIBUS DP, DP-V1 (Class 1+2), DP-V2, and PROFIBUS MC for wide application coverage.

  • High-Speed Communication: Supports baud rates from 9.6 kbaud up to 12 Mbaud for demanding industrial environments.

  • Large Device Capacity: Connects up to 125 slaves, with up to 244 bytes of data per slave for process, parameter, configuration, and diagnostics.

  • Fast Cycle Times: Offers cycle times from 200 µs, enabling real-time communication in automation systems.

  • Advanced Synchronization: Distributed clock capability ensures precise timing between PROFIBUS and EtherCAT networks.

  • Robust Diagnostics: Hardware status LEDs and software tools provide detailed monitoring and troubleshooting.

  • Configurable Error Management: Allows per-device error handling strategies to improve system reliability.

  • Automatic Bus Configuration: Supports reading of bus topology and automatic assignment of GSD files to simplify setup.

  • Industrial Reliability: Operates reliably in harsh environments with temperatures from -25 °C to +60 °C.

The EL6731-0000 delivers the reliability and precision required for seamless PROFIBUS integration into EtherCAT-based industrial automation systems.
