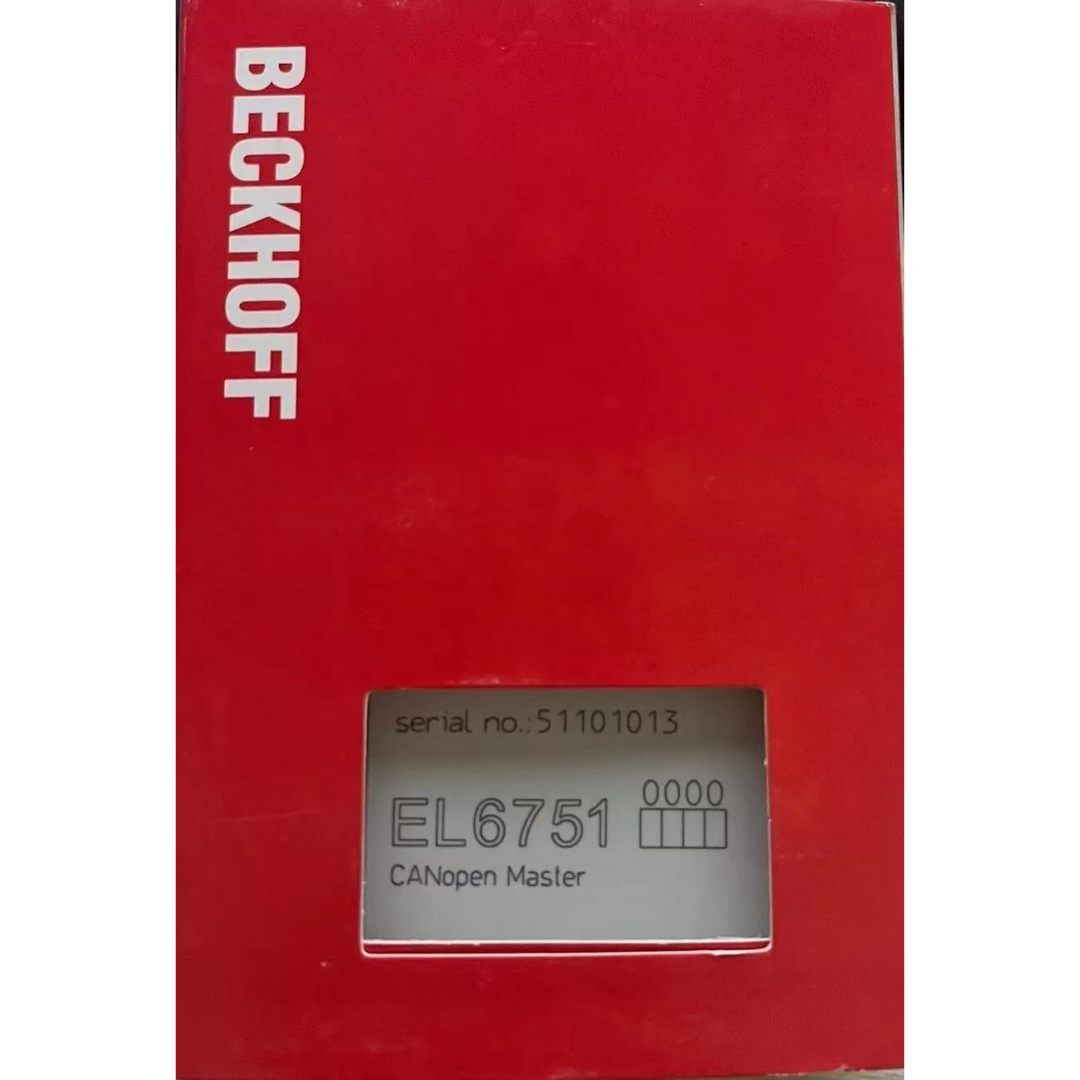

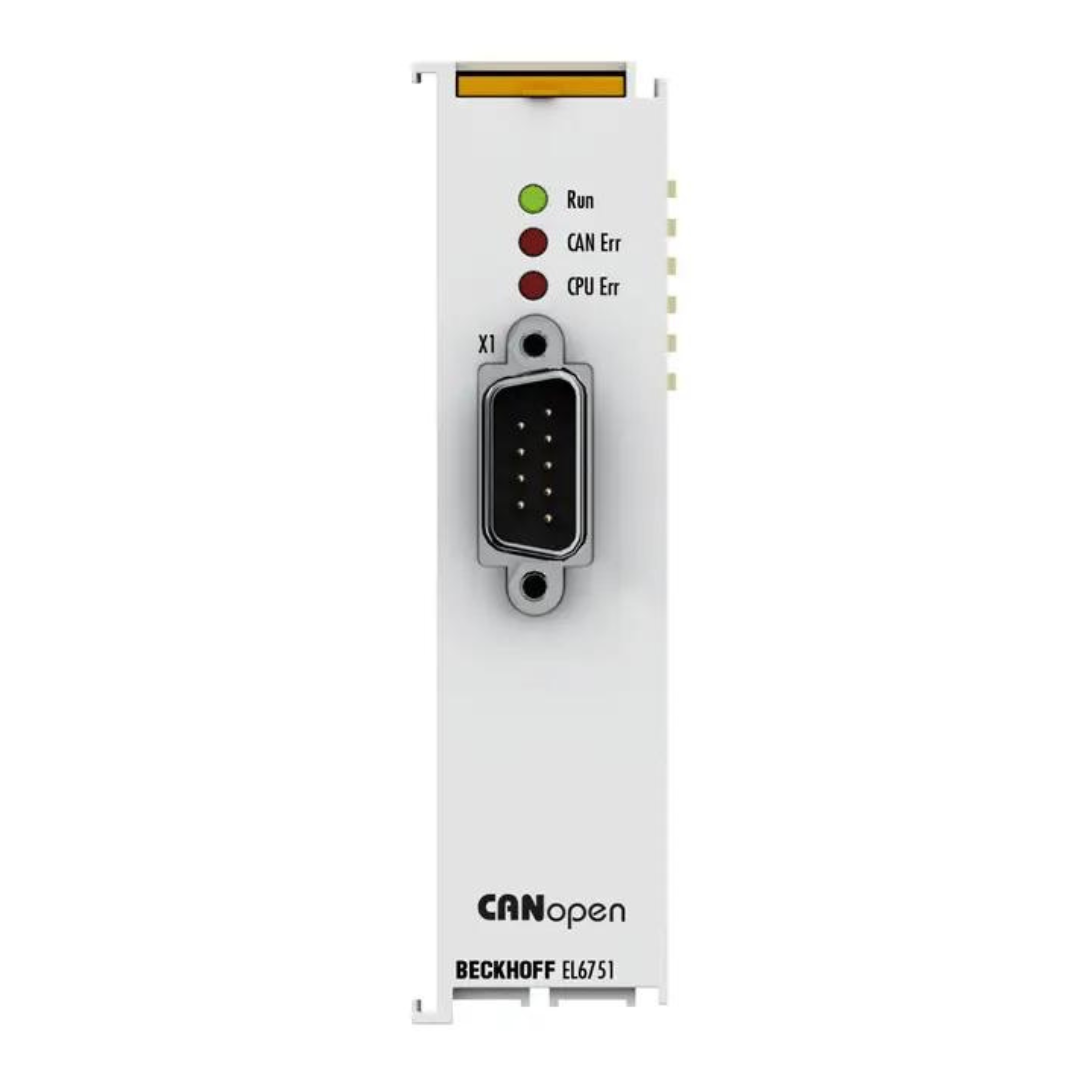

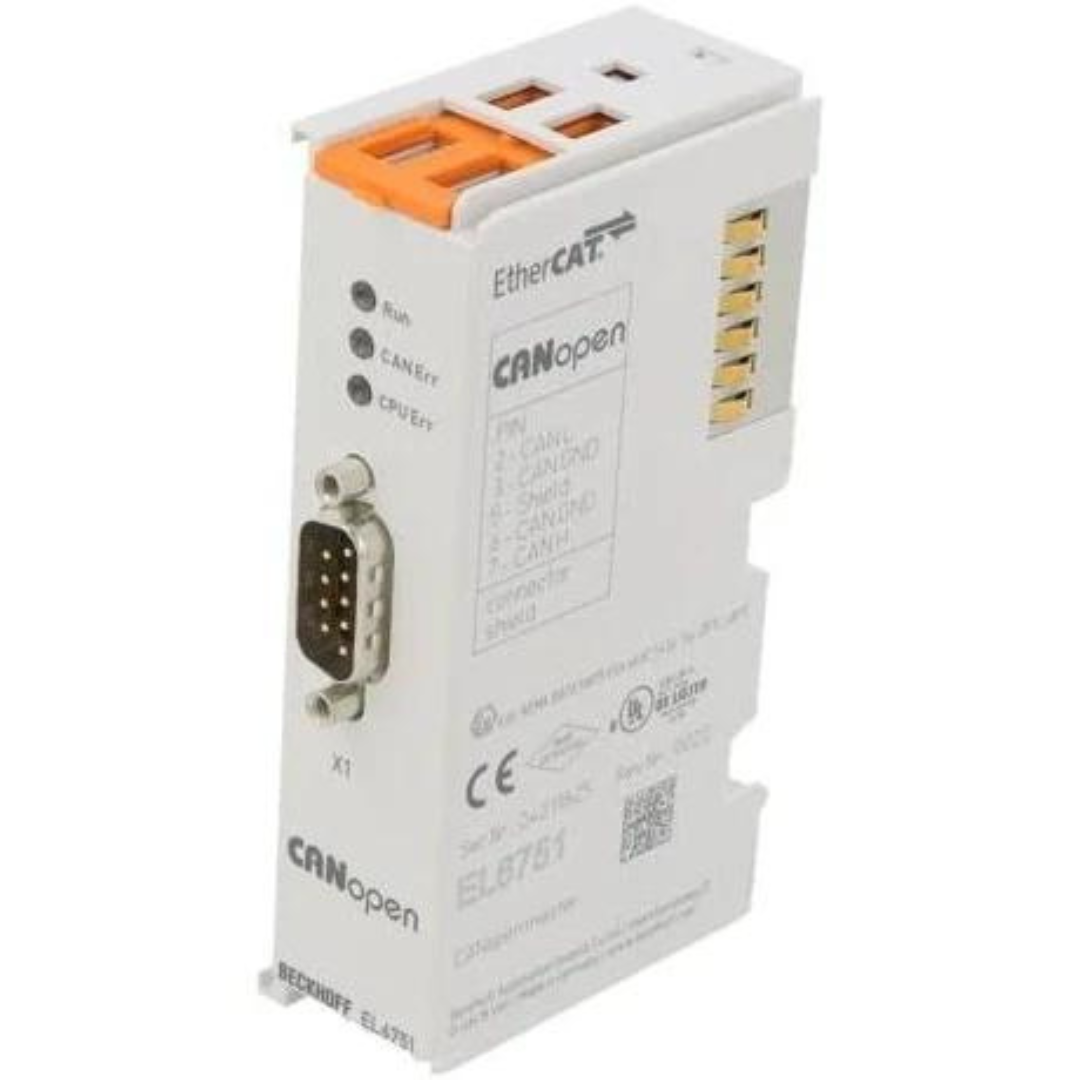

EL6751 | BECKHOFF EtherCAT Terminal, 1-channel communication interface, CANopen, master/slave
- Regular price
- $399.00
- Sale price
- $399.00
- Regular price
-
Couldn't load pickup availability
Do you need more quantity?
Product Description P/N: EL6751
Description
EL6751 is an EL6xxx series master terminal manufactured by Beckhoff. This terminal weighs approx. 70 g, operates at a temperature range of -25 to +60 degrees Celsius, and its current consumption (from the E-bus) is typ. 230 mA.
Technical Specifications
| Manufacturer | BECKHOFF |
| Category | PLCs/Machine Control |
| Subcategory | PLC Module/Rack |
| Part Number | EL6751 |
| Technology | CANopen master terminal |
| Fieldbus | CANopen |
| Number of fieldbus channels | 1 |
| Data transfer rates | 10, 20, 50, 100, 125, 250, 500, 800, 1000 kbaud |
| Communication | CANopen network master and CANopen manager, optionally CANopen slave |
| Interfaces | D-sub connector, 9-pin according to CANopen specification, galvanically decoupled |
| Hardware diagnostics | status LEDs |
| Current consumption E-bus | typ. 230 mA |
| Special features | status LEDs, CANopen network master, CANopen Manager, supports RAW-CAN |
| Operating/storage temperature | -25…+60 °C/-40…+85 °C |
| Relative humidity | 95 %, no condensation |
| Vibration/shock resistance | conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission | conforms to EN 61000-6-2/EN 61000-6-4 |
| Protect. rating/installation pos. | IP20/variable |
| Approvals/markings | CE, UL, ATEX |
| Design form | compact terminal housing with signal LEDs |
| Material | polycarbonate |
| Dimensions (W x H x D) | 24 mm x 100 mm x 52 mm |
| Installation | on 35 mm DIN rail, conforming to EN 60715 with lock |
| Side by side mounting by means of | double slot and key connection |
| Wiring | specific push-in connection |
Information About EL6751
The Terminal enables within an EtherCAT Terminal network the integration of any CANopen devices and can either be master (EL6751) or slave (EL6751-0010). In addition, general CAN messages can be sent or received – without having to bother with CAN frames in the applications program. The terminal has a powerful protocol implementation with many features:
All CANopen PDO communication types are supported: event driven, time driven (using an event timer), synchronous, polling.
synchronization with the PC controller’s task cycle
SYNC cycle with quartz precision for drive synchronization, zero cumulative jitter
parameter communication (SDO) at start-up and when running
emergency message handling, guarding and heartbeat
powerful parameter and diagnostics interfaces
online bus load display
Manufacturer information
Beckhoff Automation is a German manufacturer of open automation systems, including industrial PCs, I/O and fieldbus components, drive technology, automation software, and hardware for machine vision. Beckhoff is known for its innovative and reliable automation technology, which is used in a wide range of industries. The company is committed to providing customers with the best possible automation solutions to help them succeed in their businesses.
IQElectro 2 Year Warranty
IQElectro offers a 2-Year Warranty on all our products. This complimentary two-year warranty ensures that every purchase from IQElectro is a secure investment in the future of your company.Warranty Terms and Conditions
IQElectro is not an authorized distributor.
