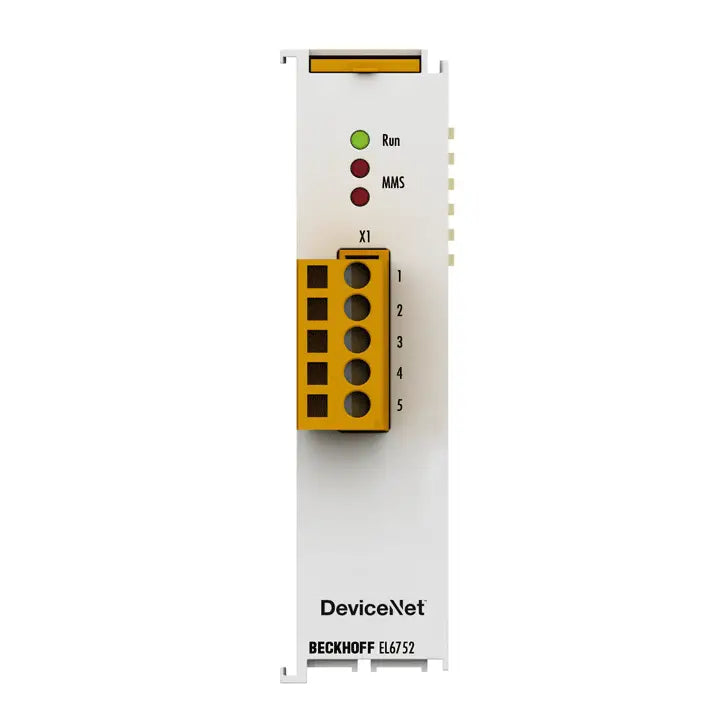

EL6752 | Beckhoff EtherCAT DeviceNet Master Terminal 1-Channel Communication Interface
- Regular price
- $474.00
- Sale price
- $474.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: EL6752
Description
The Beckhoff EL6752 is a 1-channel EtherCAT communication terminal that functions as a DeviceNet® master for integrating DeviceNet® devices into EtherCAT networks. It supports all DeviceNet® I/O modes, including polling, cyclic, and change-of-state, offering powerful diagnostics and flexible configuration for industrial communication systems.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Beckhoff |
| Category | Industrial Automation |
| Part Number | EL6752 |
| Subcategory | EtherCAT Communication Terminal |
| Technology | DeviceNet® master terminal |
| Number of Channels | 1 |
| Fieldbus Type | DeviceNet® |
| Communication Role | Network master (scanner) |
| Data Transfer Rates | 125, 250, 500 kbaud |
| Interface Type | 5-pin open style connector, galvanically isolated (supplied) |
| Bus Devices Supported | Up to 63 slaves |
| Supported I/O Modes | Polling, change-of-state, cyclic, strobed |
| Special Features | UCMM, Heartbeat & Shutdown Messages, Auto Device Replacement (ADR) |
| Error Management | Freely configurable per bus user |
| Hardware Diagnostics | Status LEDs |
| Current Consumption (E-bus) | Typ. 260 mA |
| Distributed Clocks | No |
| Protection Rating | IP20 |
| Operating Temperature | -25°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | Up to 95%, non-condensing |
| Vibration/Shock Resistance | EN 60068-2-6 / EN 60068-2-27 compliant |
| EMC Compliance | EN 61000-6-2 / EN 61000-6-4 |
| Approvals | CE, UL, CCC, ATEX, IECEx |
| Dimensions (W × H × D) | 24 mm × 100 mm × 52 mm |
| Weight | 0.15 lbs (approx. 70 g) |
Information About EL6752
The EL6752 belongs to Beckhoff’s EtherCAT I/O system and is specifically developed to act as a DeviceNet® master terminal, replacing traditional PCI-based interface cards with a compact and modular solution. It allows seamless integration of DeviceNet® field devices within EtherCAT networks, enabling communication with up to 63 slave devices. The EL6752 supports advanced DeviceNet® features such as Unconnected Message Manager (UCMM), Auto Device Replacement (ADR), heartbeat messages, and cyclic or change-of-state communication. With galvanically isolated connections and configurable error management, the module ensures reliable data transfer, network stability, and simplified commissioning in distributed automation environments.
Key Features:
- DeviceNet® Master Functionality: Operates as a master terminal, allowing integration of DeviceNet® networks within EtherCAT architectures.
- Full I/O Mode Support: Supports polling, cyclic, change-of-state, and strobed modes for versatile communication setups.
- Auto Device Replacement (ADR): Simplifies maintenance by automatically restoring configuration to replaced devices.
- Advanced Protocol Features: Includes UCMM, heartbeat, and shutdown message support for enhanced control and monitoring.
- High Connectivity Capacity: Supports up to 63 slave devices at baud rates of 125, 250, or 500 kbaud.
- Robust Error Management: Freely configurable diagnostics per bus user for flexible and reliable operation.
- Compact, Modular Design: Saves space by eliminating the need for PCI-based cards and integrates directly into EtherCAT systems.
- Industrial Reliability: CE, UL, ATEX, and IECEx certified, ensuring safe operation in industrial and hazardous environments.
The EL6752 delivers the reliability and precision required for DeviceNet® network integration, industrial communication, and distributed control in EtherCAT-based automation systems.
