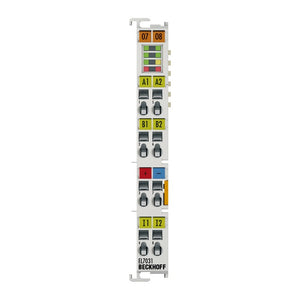

Part #: EL7031 Manufactured by: BECKHOFF
Regular price
$397.00
Sale price
$397.00
Regular price
4 in Stock
Condition: New-Surplus Original Box
Shipping calculated at checkout.
Product Overview
EL7031 is an EL7xxx series Stepper Motor Terminal manufactured by Beckhoff. This terminal weighs approx. 50 g, and feature...  Read more
