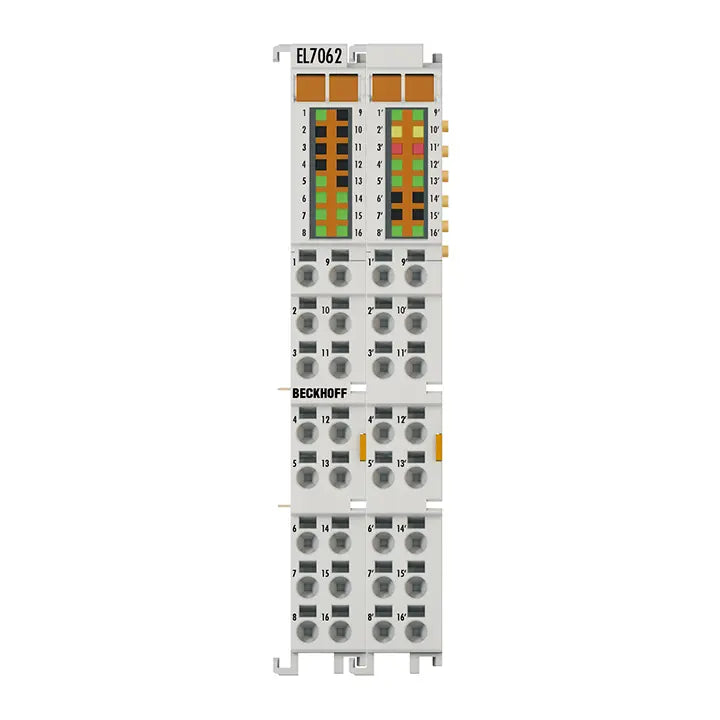

Product Description P/N: EL7062
Description
The Beckhoff EL7062 is a dual-channel EtherCAT Terminal designed for the direct connection of two stepper motors in the medium power range. It supports up to 3 A per motor and operates within an 8…48 V DC voltage range, integrating encoder feedback and limit switch inputs. With high-resolution microstepping, it ensures smooth and precise motor performance in compact automation applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Beckhoff |
| Category | PLCs/Machine Control |
| Part Number | EL7062 |
| Subcategory | PLC Module/Rack |
| Technology | Compact drive technology, EtherCAT Terminal |
| Channels | 2 (dual-channel stepper motor interface) |
| Motor Type | 2-phase stepper motors (unipolar/bipolar) |
| Output Current | Max. 6 A total, 3 A per channel (5 A per channel with ZB8610) |
| Supply Voltage (Power) | 8…48 V DC |
| Supply Voltage (Electronics) | 24 V DC via power contacts |
| Encoder Connection | 5 V TTL (differential, single-ended, open collector), A, B, latch |
| Max. Encoder Frequency | 400 kHz (with 4-fold evaluation) |
| Step Frequency | Up to 16,000 full steps/s |
| Current Controller Frequency | 32 kHz |
| Inputs | 2 latch inputs (limit switches) |
| Bus Interface | EtherCAT, E-bus |
| Electrical Isolation | 500 V (E-bus/field potential) |
| Cooling | Passive (fan option for extended current) |
| Diagnostics LEDs | Power, TC status, Flash, Bus status |
| Protection Rating | IP20 |
| Installation | DIN rail (EN 60715) |
| Wiring | Spring-loaded terminals; AWG 28–16 |
| Operating Temperature | 0…55 °C |
| Storage Temperature | -25…+85 °C |
| Humidity | 95%, no condensation |
| EMC Standards | EN 61000-6-2 / EN 61000-6-4 |
| Vibration/Shock Resistance | EN 60068-2-6 / EN 60068-2-27 |
| Approvals/Markings | CE, UL |
| Dimensions (W x H x D) | 24 x 100 x 68 mm |
| Weight | Approx. 100 g |
Information About CX5130-0135
The EL7062 is part of Beckhoff’s EtherCAT Terminal series, featuring compact drive technology in a high-density housing only 24 mm wide. It provides two channels for stepper motor control, each with its own encoder interface and digital inputs for limit switches. Designed for modular DIN rail installation, the EL7062 connects directly to E-bus systems, offering easy integration into automation environments. Its flexible parameterization enables adaptation to different motor requirements, while an optional ZB8610 fan module increases output current capacity up to 5 A per channel for higher performance.
Key Features:
- Dual-channel motor control: Direct connection for two stepper motors up to 3 A each.
- Wide voltage range: Operates from 8…48 V DC for mid-power drive applications.
- Encoder support: Accepts TTL encoders (5 V differential, single-ended, open collector).
- Microstepping precision: High-resolution microstepping ensures quiet, accurate operation.
- Integrated inputs: Two digital latch inputs per channel for limit switches.
- Performance boost option: ZB8610 fan cartridge increases current handling up to 5 A/channel.
- Compact housing: Only 24 mm wide with DIN rail mounting for space-saving installations.
- Industrial compliance: Certified for EMC, shock, vibration, and IP20-rated protection.
The EL7062 delivers the reliability and precision required for cost-efficient, multi-axis stepper motor control in industrial automation.
