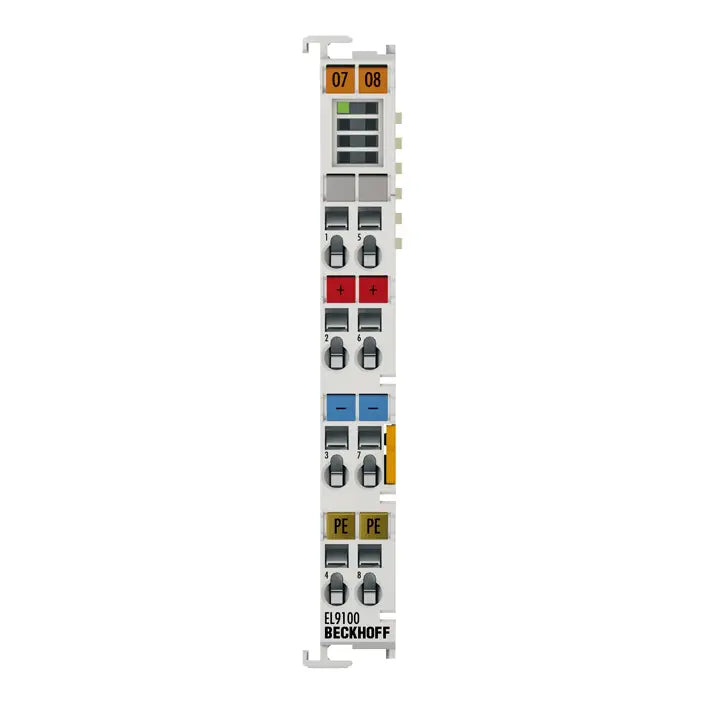

EL9100 | Beckhoff Potential Supply Terminal 24 V DC
- Regular price
- $119.00
- Sale price
- $119.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: EL9100
Description
The Beckhoff EL9100 is an EtherCAT terminal designed as a power feed terminal for the internal electronics of an EtherCAT Terminal block. It supplies 24V DC power to the internal bus circuits of connected terminals.
Technical Specifications
| Manufacturer | Beckhoff |
| Part Number | EL9100 |
| Technology | potential supply terminal |
| Current load | ≤ 10 A |
| Power LED | green |
| Renewed infeed | yes |
| Nominal voltage | 24 V DC |
| Electrical isolation | 500 V (E-bus/field potential) |
| PE contact | yes |
| Connection facility to additional power contact | 1 |
| Housing width | 12 mm |
| Side by side mounting on EtherCAT Terminals with power contact | yes |
| Operating/storage temperature | -25…+60 °C/-40…+85 °C |
| Pluggable wiring | for all ESxxxx terminals |
| Approvals/markings | CE, UL, ATEX, IECEx |
Information About EL9100
The EL9100 is part of the Beckhoff EtherCAT Terminal system, developed to offer modular and scalable distributed I/O solutions. It serves as a power supply terminal for the E-bus, providing 24V DC to the internal electronics of downstream EtherCAT terminals while electrically isolating them from upstream power segments. The terminal does not process signals itself but ensures reliable power distribution to maintain stable operation of the EtherCAT network. Compact and DIN rail–mounted, it integrates seamlessly into EtherCAT terminal stations, allowing flexible power segmenting to optimize load distribution and fault isolation. Diagnostic LEDs indicate power status, simplifying installation and maintenance.
Key Features:
- Design: EtherCAT power feed terminal for the E-bus.
- Function: Supplies 24V DC to internal electronics of EtherCAT terminals.
- Isolation: Electrically isolates power segments within terminal stations.
- Diagnostics: LED indicator shows power supply status.
- Integration: Seamlessly fits into Beckhoff EtherCAT terminal systems.
- Installation: Compact DIN rail–mounted terminal with plug-in wiring.
- Reliability: Ensures stable and continuous operation of distributed I/O.
- Application Range: Suitable for machine automation, robotics, and process control.
The EL9100 delivers the stable power distribution and isolation required for reliable operation of modular EtherCAT-based automation systems.
Manufacturer information
Beckhoff Automation is a German manufacturer of open automation systems, including industrial PCs, I/O and fieldbus components, drive technology, automation software, and hardware for machine vision. Beckhoff is known for its innovative and reliable automation technology, which is used in a wide range of industries. The company is committed to providing customers with the best possible automation solutions to help them succeed in their businesses.
Description
The Beckhoff EL9100 is an EtherCAT terminal designed as a power feed terminal for the internal electronics of an EtherCAT Terminal block. It supplies 24V DC power to the internal bus circuits of connected terminals.
Technical Specifications
| Manufacturer | Beckhoff |
| Part Number | EL9100 |
| Technology | potential supply terminal |
| Current load | ≤ 10 A |
| Power LED | green |
| Renewed infeed | yes |
| Nominal voltage | 24 V DC |
| Electrical isolation | 500 V (E-bus/field potential) |
| PE contact | yes |
| Connection facility to additional power contact | 1 |
| Housing width | 12 mm |
| Side by side mounting on EtherCAT Terminals with power contact | yes |
| Operating/storage temperature | -25…+60 °C/-40…+85 °C |
| Pluggable wiring | for all ESxxxx terminals |
| Approvals/markings | CE, UL, ATEX, IECEx |
Information About EL9100
The EL9100 is part of the Beckhoff EtherCAT Terminal system, developed to offer modular and scalable distributed I/O solutions. It serves as a power supply terminal for the E-bus, providing 24V DC to the internal electronics of downstream EtherCAT terminals while electrically isolating them from upstream power segments. The terminal does not process signals itself but ensures reliable power distribution to maintain stable operation of the EtherCAT network. Compact and DIN rail–mounted, it integrates seamlessly into EtherCAT terminal stations, allowing flexible power segmenting to optimize load distribution and fault isolation. Diagnostic LEDs indicate power status, simplifying installation and maintenance.
Key Features:
- Design: EtherCAT power feed terminal for the E-bus.
- Function: Supplies 24V DC to internal electronics of EtherCAT terminals.
- Isolation: Electrically isolates power segments within terminal stations.
- Diagnostics: LED indicator shows power supply status.
- Integration: Seamlessly fits into Beckhoff EtherCAT terminal systems.
- Installation: Compact DIN rail–mounted terminal with plug-in wiring.
- Reliability: Ensures stable and continuous operation of distributed I/O.
- Application Range: Suitable for machine automation, robotics, and process control.
The EL9100 delivers the stable power distribution and isolation required for reliable operation of modular EtherCAT-based automation systems.
Manufacturer information
Beckhoff Automation is a German manufacturer of open automation systems, including industrial PCs, I/O and fieldbus components, drive technology, automation software, and hardware for machine vision. Beckhoff is known for its innovative and reliable automation technology, which is used in a wide range of industries. The company is committed to providing customers with the best possible automation solutions to help them succeed in their businesses.
