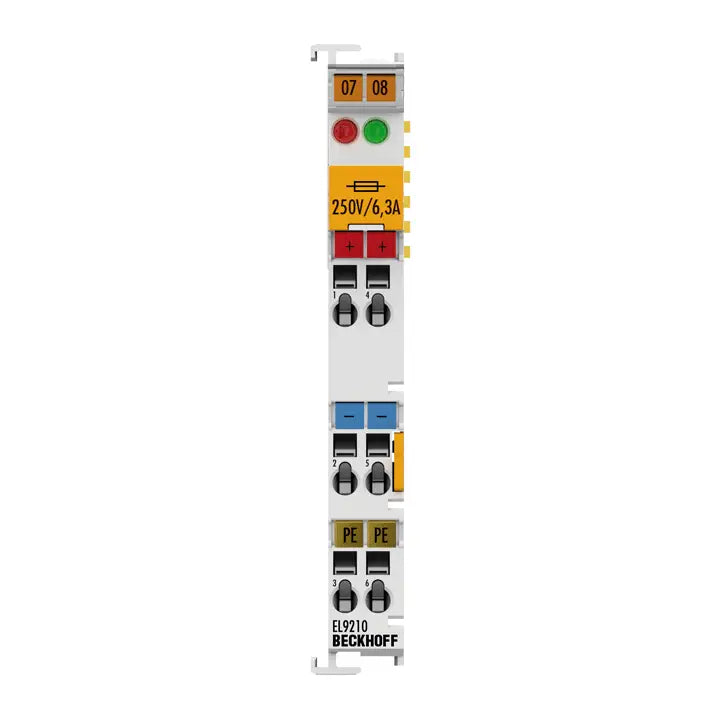

EL9210 | Beckhoff Potential Supply Terminal 24 V DC
- Regular price
- $399.00
- Sale price
- $399.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: EL9210
Description
The EL9210 is a compact potential supply terminal designed for use within EtherCAT systems. It features integrated diagnostics and a front-replaceable 6.3 A fuse to ensure secure power distribution across different potential groups.
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| Brand | Beckhoff |
| Category |
Power Distribution Terminals
|
| Part Number | EL9210 |
| Subcategory | Fused Potential Supply Terminals |
| Nominal Voltage | 24 V DC |
| Current Load | ≤ 10 A |
| Integrated Fine-Wire Fuse | 6.3 A (replaceable) |
| Current Consumption (E-bus) | typ. 90 mA |
| Electrical Isolation | 500 V (E-bus/field potential) |
| Power LED | Green |
| Defect LED | Red |
| Bit Width in Process Image | 2 |
| Diagnostics in Process Image | Yes |
| Reported to E-bus | Yes |
| Housing Width | 12 mm |
| Operating Temperature | -25…+55°C |
| Approvals/Markings | CE, CCC, UL, ATEX, IECEx, DNV GL |
| Dimensions (W x H x D) | 12 mm x 100 mm x 70 mm |
| Weight | approx. 55 g |
Information About EL9210
The EL9210 is a 24 V DC potential feed terminal that enables the formation of independent power groups in EtherCAT networks. It uses front terminal contacts to receive supply voltage, which is then protected by a 6.3 A fine-wire fuse and distributed via internal power contacts. Status signals are transmitted to the controller using two input bits, allowing for seamless voltage supervision. Integrated green and red LEDs provide immediate feedback on power and fault conditions. Its slim 12 mm housing and versatile mounting options make it suitable for densely packed I/O configurations.
Key Features:
- Replaceable 6.3 A Fuse: The terminal includes a front-accessible fine-wire fuse rated at 6.3 A, offering reliable protection for connected loads and allowing quick maintenance without disconnecting the terminal.
- Voltage and Fault Diagnostics: Status of the terminal is continuously reported to the EtherCAT system using two input bits, allowing real-time monitoring and quick identification of faults.
- Visual State Indicators: Integrated LEDs display the operational state of the terminal, with a green Power LED confirming proper supply and a red Defect LED alerting to issues.
- Low E-bus Current Consumption: The terminal’s typical 90 mA consumption on the E-bus ensures efficient energy use while maintaining active communication and diagnostics.
- High Electrical Isolation: Provides 500 V isolation between the E-bus and field potential to ensure safety and signal integrity in electrically noisy environments.
The EL9210 offers a dependable solution for controlled 24 V power distribution with built-in safety and diagnostics. The terminal’s integration capabilities simplify system design while enhancing power monitoring.
