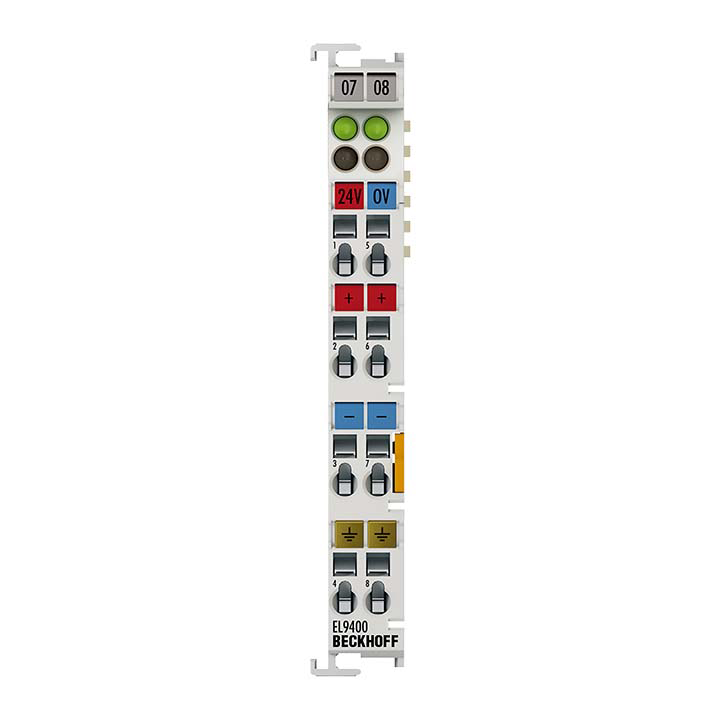

EL9400 | Beckhoff EtherCAT Power Supply Terminal for E-bus 24 V DC 2 A
- Regular price
- $234.00
- Sale price
- $234.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: EL9400
Description
The Beckhoff EL9400 is an EtherCAT power supply terminal that provides 5 V DC, 2 A power to refresh the E-bus within EtherCAT systems. It ensures stable data exchange between EtherCAT couplers and terminals, making it ideal for configurations with large numbers of modules requiring additional E-bus current.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Beckhoff |
| Category | Industrial Automation |
| Part Number | EL9400 |
| Subcategory | Power Supply Terminal |
| Technology | Power supply terminal for E-bus |
| Input Voltage | 24 V DC (-15% / +20%) |
| Input Current | Typ. 70 mA + (E-bus current/4) |
| Output Voltage | 5 V DC for E-bus |
| Output Current | 2 A |
| Electrical Isolation | 500 V (E-bus/field potential) |
| Power Contacts | Max. 24 V DC / 10 A |
| E-bus Function | Supplies and refreshes E-bus power for data communication |
| Configuration | Not required |
| Mounting Type | DIN-rail via EtherCAT Terminal system |
| Protection Class | IP20 |
| Operating Temperature | 0°C to +55°C |
| Storage Temperature | -25°C to +85°C |
| Relative Humidity | 95%, non-condensing |
| Weight | Approx. 65 g |
Information About EL9400
The EL9400 is part of Beckhoff’s EtherCAT Terminal system and serves as a dedicated power supply terminal for maintaining reliable E-bus operation. In EtherCAT installations, each terminal draws a certain amount of current from the E-bus. For larger configurations or systems with high power demands, the EL9400 adds an additional 2 A of E-bus power to ensure consistent communication and stability across all connected modules. This terminal also allows up to 10 A at 24 V DC for the power contacts, extending flexibility for peripheral devices. Its 500 V isolation between the E-bus and field potential enhances operational safety, while the compact form factor simplifies integration into existing EtherCAT systems.
Key Features:
- E-bus Power Refresh: Supplies an additional 2 A at 5 V DC to maintain consistent E-bus voltage and communication reliability.
- Supports Large Configurations: Ideal for EtherCAT systems with many terminals requiring higher E-bus current capacity.
- Stable Power Distribution: Ensures uninterrupted data exchange between EtherCAT couplers and terminals.
- High Electrical Isolation: Provides 500 V isolation between E-bus and field potential for secure operation.
- Auxiliary Power Contacts: Offers 24 V DC power distribution up to 10 A for connected components.
- Plug-and-Play Integration: Automatically recognized within EtherCAT networks, requiring no configuration.
- Compact Design: EtherCAT Terminal housing allows quick DIN-rail mounting alongside standard modules.
- Industrial-Grade Reliability: Operates within 0°C to +55°C and up to 95% humidity for robust field performance.
The EL9400 delivers the reliability and precision required to maintain stable E-bus power and communication integrity in complex EtherCAT automation systems.
