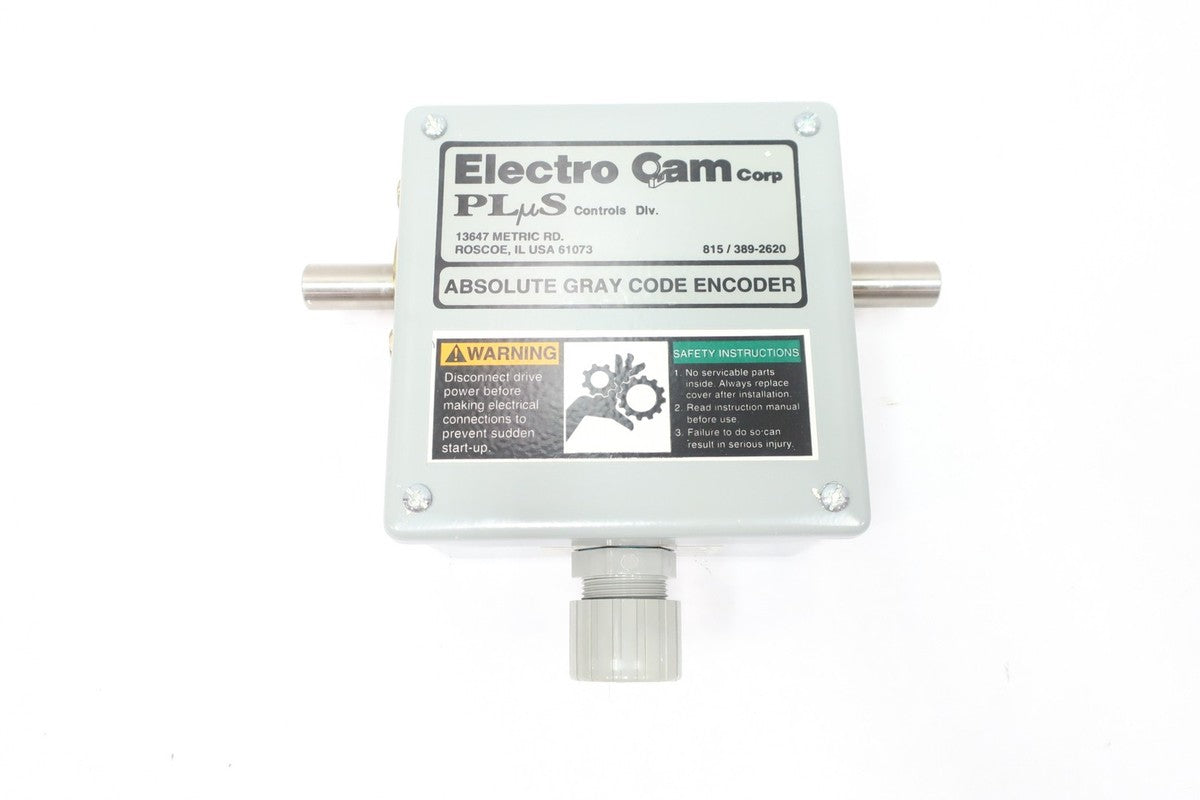

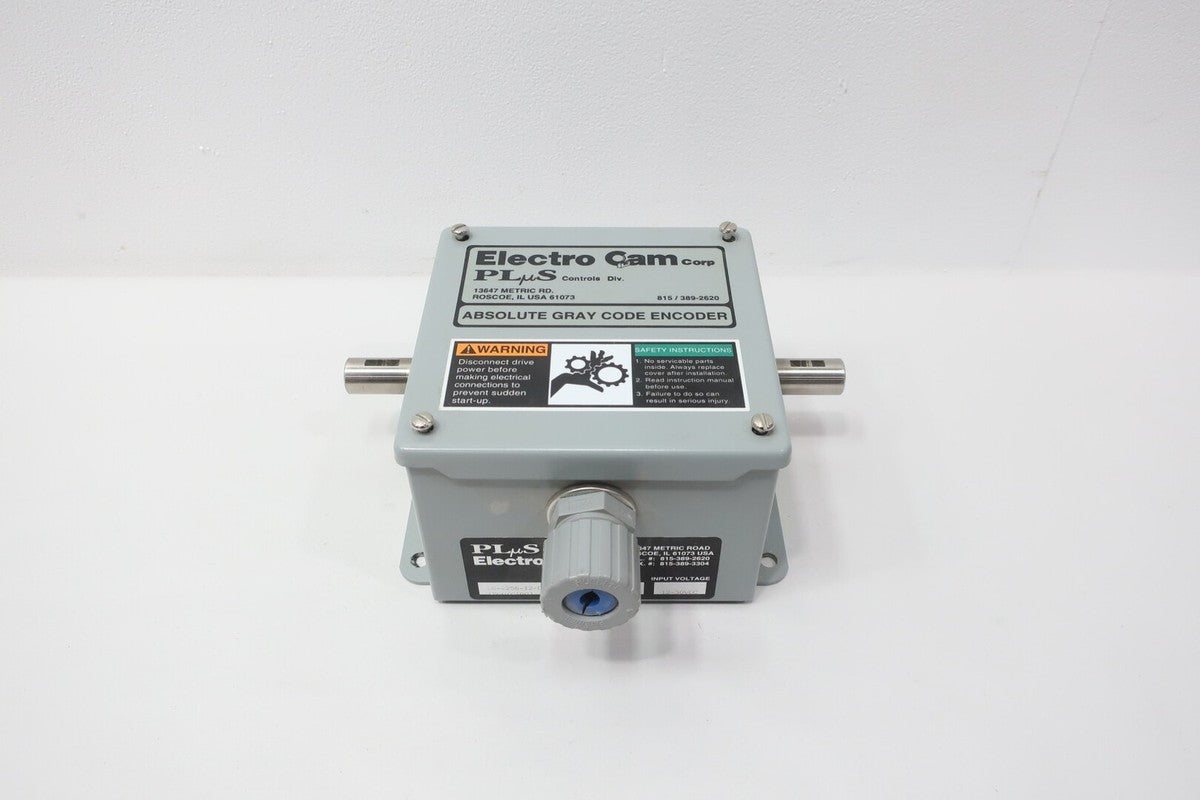

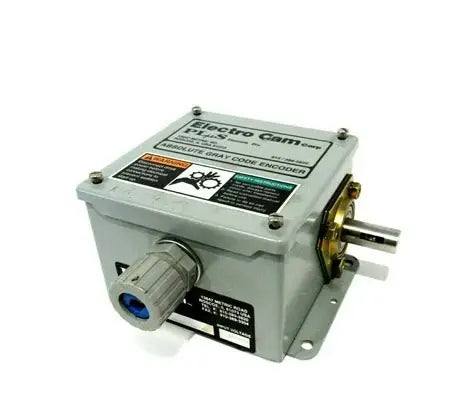

Electro Cam PS-4256-12-DDP 8-Bit Absolute Gray Code Encoder
- Regular price
- $1,199.00
- Sale price
- $1,199.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: PS-4256-12-DDP
Description
The Electro Cam PS-4256-12-DDP is an absolute 8-bit Gray code encoder designed for rotary position feedback in industrial automation and machine-control applications. It provides sourcing DC outputs, operates from 12–30 VDC, supports speeds up to 1,000 RPM, and uses a rugged NEMA 12 steel enclosure with a double-ended shaft.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Electro Cam |
| Category | Industrial Automation |
| Part Number | PS-4256-12-DDP |
| Subcategory | Absolute Encoders |
| Product Type | Absolute Gray Code Encoder |
| Resolution | 8-bit |
| Output Type | Sourcing DC Outputs |
| Input Voltage | 12–30 VDC |
| Maximum Speed | 0–1000 RPM |
| Enclosure | NEMA 12 Steel |
| Shaft Configuration | 3/4-inch Double-Ended Shaft |
| Bearings | Heavy-Duty Steel Ball Bearings |
| Application | Industrial Machine Control and Rotary Position Feedback |
| Weight | 4.17 kg |
Information About PS-4256-12-DDP
The PS-4256-12-DDP is part of the Electro Cam PS-4000 series of absolute Gray code encoders. Its 8-bit absolute output retains the encoder position when power is removed, making it suitable for machine sequencing and rotary position monitoring. The DDP configuration provides sourcing DC outputs, while the 3/4-inch double-ended shaft with ball bearings supports mechanical coupling to industrial equipment. The NEMA 12 steel enclosure and heavy-duty bearing construction are intended for rugged industrial environments.
Key Features:
- Absolute Gray Code: Provides 8-bit absolute rotary position information.
- Sourcing DC Outputs: Supplies sourcing-type digital outputs for control systems.
- 12–30 VDC Input: Designed for standard industrial DC power supplies.
- 0–1000 RPM: Supports rotary speeds up to 1,000 RPM.
- Position Retention: Absolute output retains position information when power is removed.
- NEMA 12 Enclosure: Steel enclosure provides protection for industrial installations.
- Double-Ended Shaft: 3/4-inch shaft allows flexible mechanical coupling.
- Ball Bearings: Heavy-duty bearings support reliable operation in demanding applications.
The PS-4256-12-DDP delivers absolute rotary position feedback for industrial machinery, sequencing, and automation systems.
