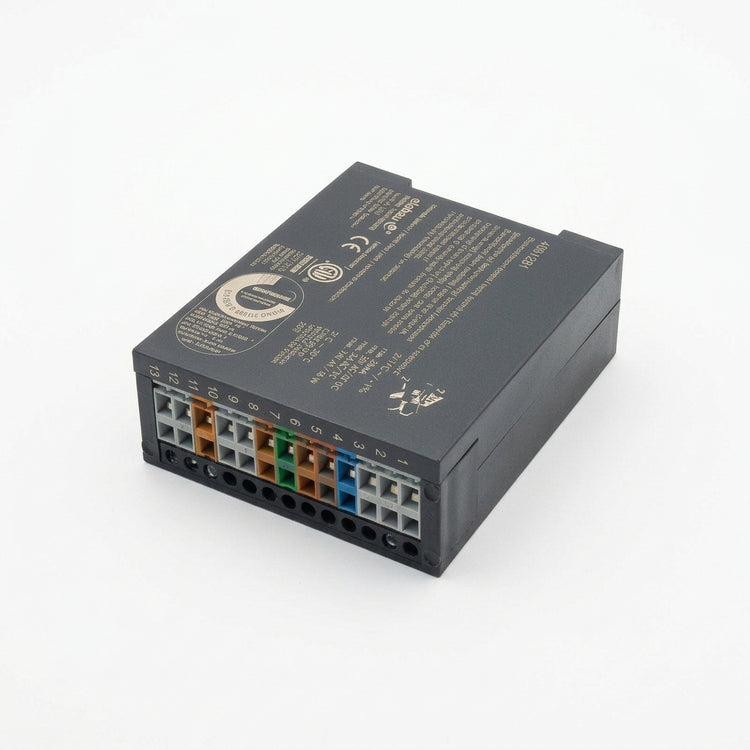

Elobau 463121B1 Central Control Safety Module
- Regular price
- $882.00
- Sale price
- $882.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 463121B1
Description
The Elobau 463121B1 is a central safety control module that evaluates safety-sensor signals in machinery. It operates on 24 V DC with a maximum current consumption of 90 mA and switches its safety outputs according to sensor and external contactor conditions.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Elobau |
| Category | Machine Safety |
| Part Number | 463121B1 |
| Subcategory | Safety Evaluation Modules |
| Supply Voltage | 24 V DC ±10% |
| Maximum Current Consumption | 90 mA |
| Sensor Contact Configuration | Normally open / normally closed |
| Maximum Safety Output Switching Voltage | 250 V AC / 30 V DC |
| Maximum Safety Output Switching Current | 3 A |
| Maximum Safety Output Switching Capacity | 750 VA / 90 W |
| Status Indicators | 3 LEDs |
| Mounting | TH35 DIN rail |
| Housing Dimensions | 75 × 94 × 25 mm |
| Housing Material | PA / PC |
| Housing Protection | IP40 |
| Terminal Protection | IP20 |
| Operating Temperature | 0 to +55°C |
| Weight | 0.44 lb (0.20 kg) |
Information About 463121B1
The 463121B1 is part of Elobau’s 46312.B1 safety evaluation unit family. Its housing mounts on a TH35 DIN rail inside a control cabinet. The unit monitors a connected sensor incorporating normally open and normally closed contacts. Three LEDs indicate supply, sensor, and external contactor feedback status.
Key Features:
- Safety Sensor Evaluation: Monitors signals from a compatible safety sensor.
- Supply Compatibility: Operates on 24 V DC with a ±10% voltage tolerance.
- Current Consumption: Draws a maximum supply current of 90 mA.
- Sensor Contact Monitoring: Evaluates normally open and normally closed sensor contacts.
- Contactor Feedback: Checks external contactor feedback as part of the switching sequence.
- Status Indicators: Uses three LEDs to indicate operating conditions.
- DIN Rail Mounting: Attaches to a TH35 rail inside a control cabinet.
- Fault Response: Opens the safety outputs when a monitored fault occurs.
The 463121B1 delivers the reliability and precision required for safety-sensor evaluation in compatible machinery control systems.
