EMA107-10 | Eaton Rack-Mountable Power Distribution Unit
- Regular price
- $1,474.00
- Sale price
- $1,474.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: EMA107-10
Description

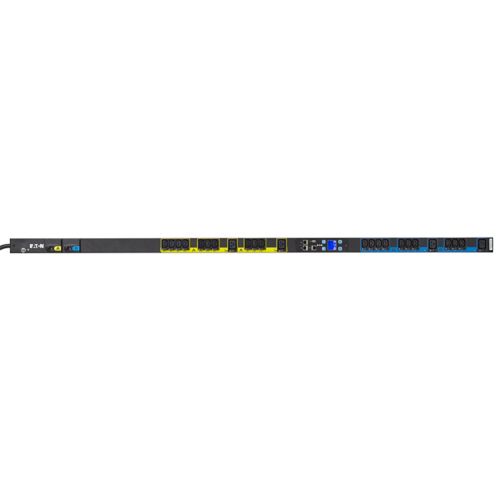

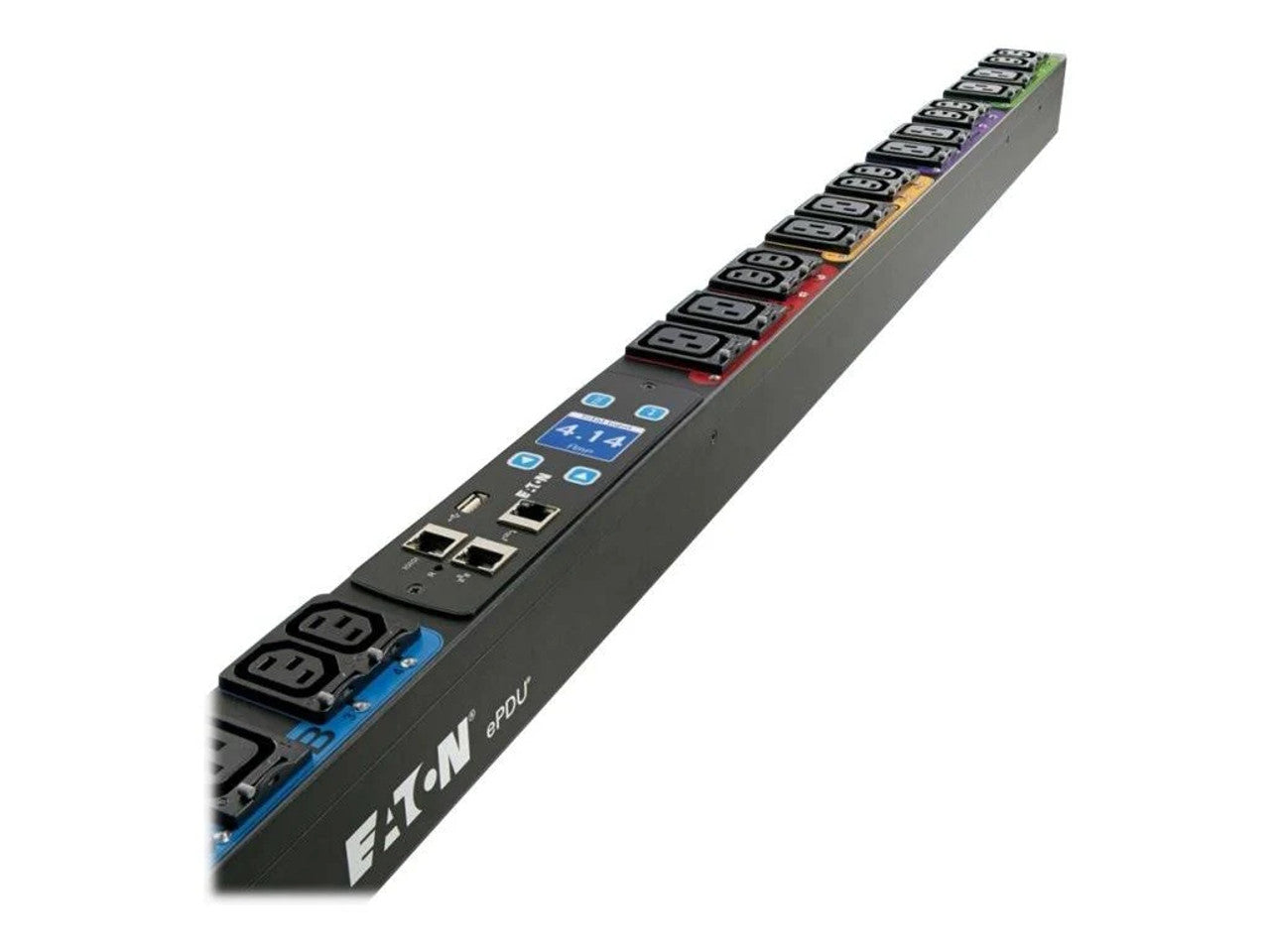

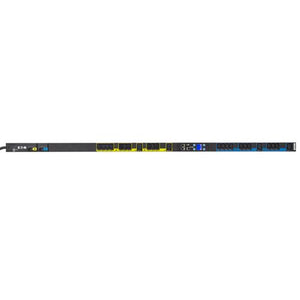

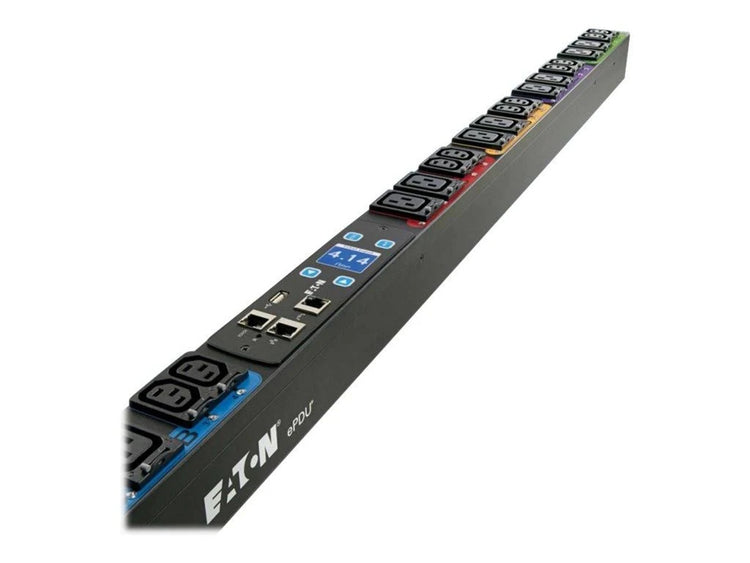

The Eaton EMA107-10 is a 0U vertical rack-mountable managed power distribution unit (PDU) designed for enterprise IT and data center environments requiring precise power control and monitoring.
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| Brand | Eaton |
| Category |
Electrical Products
|
| Part Number | EMA107-10 |
| Subcategory | Power Distribution |
| Compliances | TAA Compliant |
| Certifications | UL Listed |
| Form Factor | 0U (Vertical) |
| Outlet Control | Yes |
| Phase | Single-phase |
| Wattage | 5.76 kW max |
| Amperage Rating | 24A |
| Input Voltage | 200-240V |
| Input Connection | L6-30P |
| Outlets | (20) C13 Outlet grip, (4) C19 Outlet grip |
| Cord Length |
10 ft
|
| Frequency Rating |
50-60 Hz
|
| Serial Interface |
RS-232
|
| Operating Temperature |
0° to 60°C (32° to 140°F)
|
| Weight |
10.00 lbs
|
Information About EMA107-10
The Eaton EMA107-10 is a vertical 0U managed rack-mountable power distribution unit (PDU) engineered for data centers and enterprise IT environments that demand advanced power control and energy monitoring. Operating at 200–240V single-phase with a 24A input capacity, it delivers up to 5.76 kW of power through 24 outlets, including 20 IEC C13 and 4 IEC C19 receptacles. The unit features outlet-level switching and metering with billing-grade accuracy, allowing for remote control and detailed power usage analytics. With a compact form factor, integrated LCD display, and multiple network interface options, the EMA107-10 ensures reliable and scalable power management in high-density applications.
Key Features:
- High Power Capacity: Supports up to 5.76 kW at 200–240V, 24A single-phase.
- Outlet Configuration: Equipped with 20 IEC C13 and 4 IEC C19 outlets for varied equipment support.
- Input Connection: Comes with a 10 ft NEMA L6-30P input cord.
- Remote Management: Supports outlet-level on/off/reboot control and ±1% accurate energy metering.
- Display Interface: Integrated LCD pixel display for local diagnostics.
- Network Connectivity: Includes Ethernet and RS-232 interfaces for remote monitoring and configuration.
- Environmental Resilience: Operates in ambient temperatures up to 60°C (140°F).
- Certifications: UL Listed and TAA compliant for quality and regulatory adherence.
The EMA107-10 delivers intelligent, high-efficiency power distribution with remote visibility and control, making it an ideal choice for modern data centers and critical IT infrastructure.
