EMB9342-E | Lenze 9300 14kW Regenerative Drive Power Supply 400–480V

Description

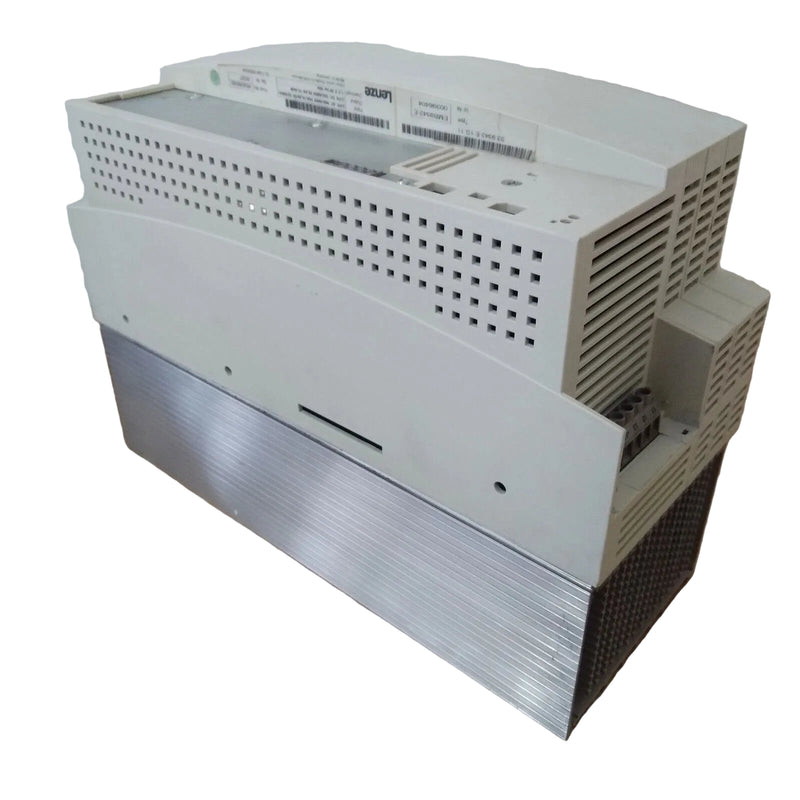

The Lenze EMB9342-E is a regenerative power supply module designed for use within the 9300 Series servo control platform. It operates on a 3-phase 400–480 V input at 50/60 Hz with a rated input current of 24 A. The unit provides a DC output of 565–680 V at 26 A for controlled energy feedback and drive system support.

Technical Specifications

Information About EMB9342-E

The EMB9342-E is engineered as a drive power supply module for Lenze 9300 Series servo systems. It converts three-phase AC input into a regulated DC bus output suitable for multi-axis drive configurations. As a regenerative power supply, it enables energy recovered during braking or deceleration to be fed back into the supply system. Designed for panel installation, the module integrates into industrial motion control cabinets to support stable and efficient servo drive operation.

Key Features:

• 9300 Series Compatibility: Designed for integration with Lenze 9300 servo systems.

• 3-Phase 400–480 V Input: Operates on industrial AC power systems at 50/60 Hz.

• 24 A Input Current Rating: Supports high-capacity industrial drive installations.

• 565–680 V DC Output: Provides regulated DC bus voltage for connected drive modules.

• 26 A Output Current: Rated for continuous DC output supply.

• 14 kW Power Rating: Suitable for medium-power regenerative drive systems.

• Regenerative Operation: Returns braking energy to the supply system.

• Panel-Mounted Module: Designed for cabinet integration in industrial environments.

The EMB9342-E delivers the reliability and precision required for regenerative servo drive power supply applications.
