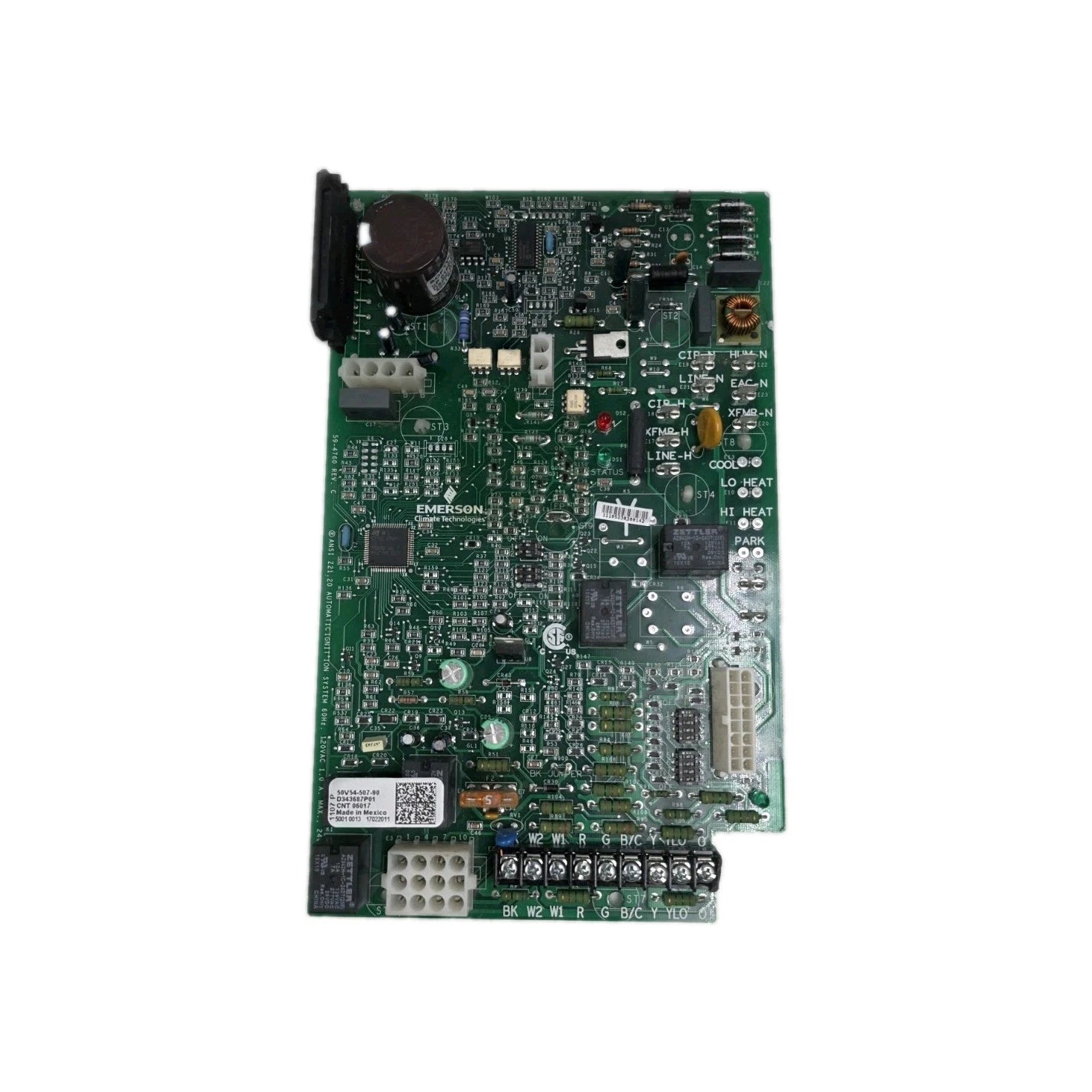

Emerson 50V54-507-90 Integrated Furnace Control Board for Trane and American Standard Gas Furnaces
- Regular price
- $749.00
- Sale price
- $749.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 50V54-507-90
Description
The Emerson 50V54-507-90 is an integrated furnace control board designed to manage ignition sequencing, flame monitoring, blower operation, and safety functions in compatible Trane and American Standard gas furnaces. This microprocessor-based control module coordinates critical furnace operations to ensure dependable heating performance, efficient combustion, and reliable system protection. It serves as an OEM replacement for Trane control board D343687P01 and CNT06017.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Emerson |
| Category | HVAC Control |
| Part Number | 50V54-507-90 |
| Subcategory | Furnace Control Board |
| Manufacturer | Emerson Climate Technologies |
| Product Type | Integrated Furnace Control Board |
| OEM Cross Reference | D343687P01 |
| Additional Cross Reference | CNT06017 |
| Compatible Brands | Trane, American Standard |
| Control Type | Microprocessor-Based Monitoring and Control System |
| Maximum Input Current | 525 mA + MV @ 25 VAC |
| Gas Valve Relay Rating | 1.5 A @ 25 VAC, 60 Hz, 0.6 PF |
| Ignitor Rating | 2.0 A @ 80 VAC, 60 Hz (Resistive) |
| Flame Establishment Time | 0.8 Seconds Maximum |
| Flame Failure Response Time | 2.0 Seconds Maximum |
| Operating Temperature | -40°F to 175°F (-40°C to 80°C) |
| Humidity Range | 5% to 95% Relative Humidity (Non-Condensing) |
| Fuel Compatibility | Natural Gas, Manufactured Gas, Mixed Gas, Liquid Petroleum Gas, LP Gas |
| Safety Approval | UL Approved, 105°C Rated Components |
| Weight | 0.70 lbs (0.32 kg) |
Information About 50V54-507-90
The 50V54-507-90 is a microprocessor-controlled integrated furnace control board manufactured by Emerson for residential forced-air gas furnaces. Designed for Trane and American Standard equipment, it supervises ignition timing, flame sensing, inducer motor operation, circulating blower control, and gas valve sequencing while continuously monitoring system safety circuits. The controller features an adaptive ignition algorithm that optimizes ignitor temperature, allowing consistent ignition performance while helping extend ignitor service life. It is approved for use with natural gas, manufactured gas, mixed gas, liquid petroleum gas, and LP gas systems and is designed to operate reliably across a wide range of environmental conditions.
Key Features:
- Microprocessor-Based Control: Coordinates all major furnace operating sequences through an integrated electronic controller.
- Adaptive Ignition Technology: Optimizes hot surface ignitor temperature for dependable ignition performance.
- OEM Replacement Design: Direct replacement for Trane D343687P01 and CNT06017 furnace control boards.
- Integrated Safety Monitoring: Continuously supervises flame sensing, ignition, and operating safety circuits.
- Fast Flame Detection: Establishes flame within a maximum of 0.8 seconds under normal operating conditions.
- Rapid Flame Failure Response: Responds to flame loss within a maximum of 2.0 seconds to enhance equipment safety.
- Multi-Fuel Compatibility: Approved for natural gas, manufactured gas, mixed gas, liquid petroleum gas, and LP gas applications.
- UL Approved Construction: Built with UL-approved components rated for operation up to 105°C.
The 50V54-507-90 delivers the reliability and precision required for ignition control, flame supervision, and two-stage furnace operation in residential HVAC systems.
