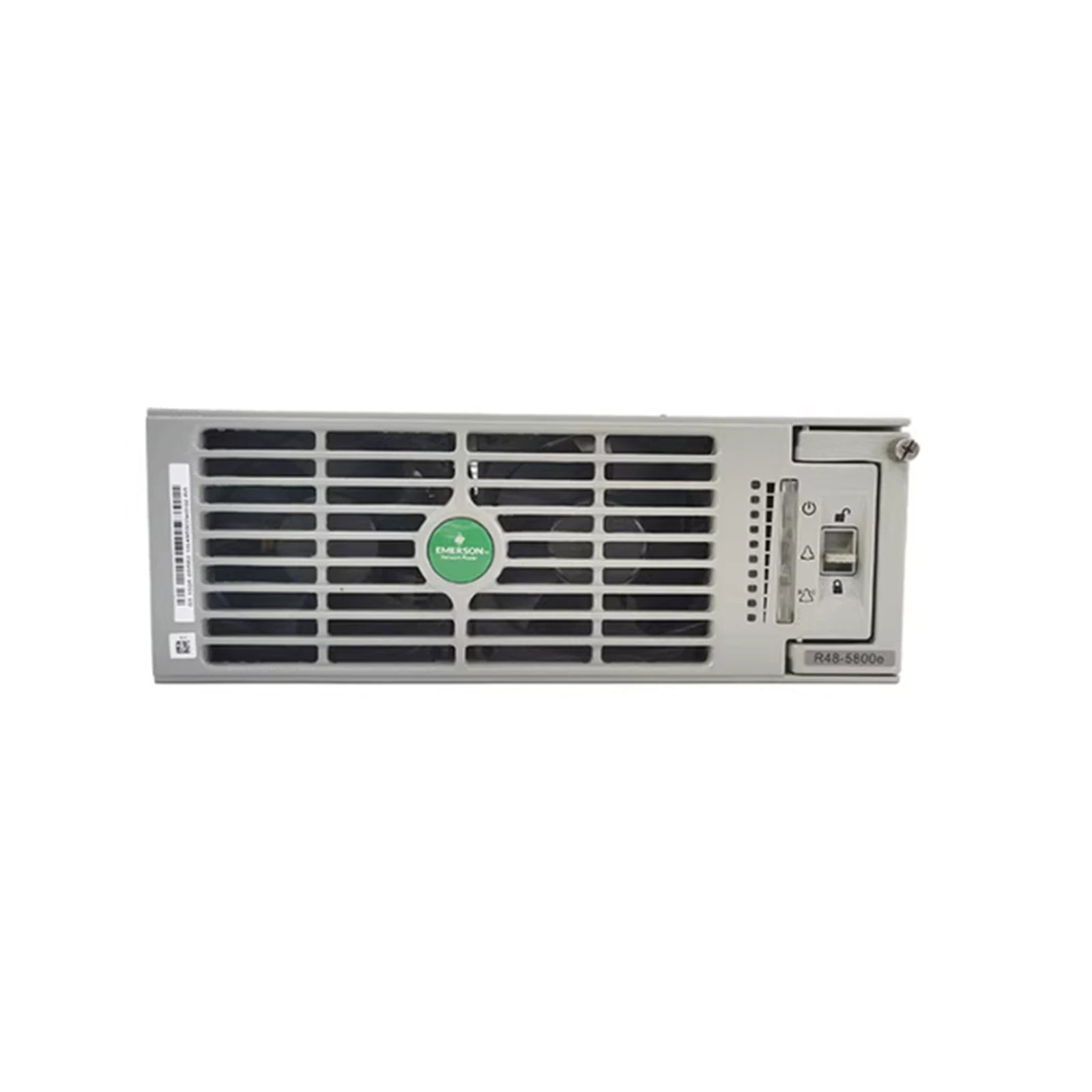

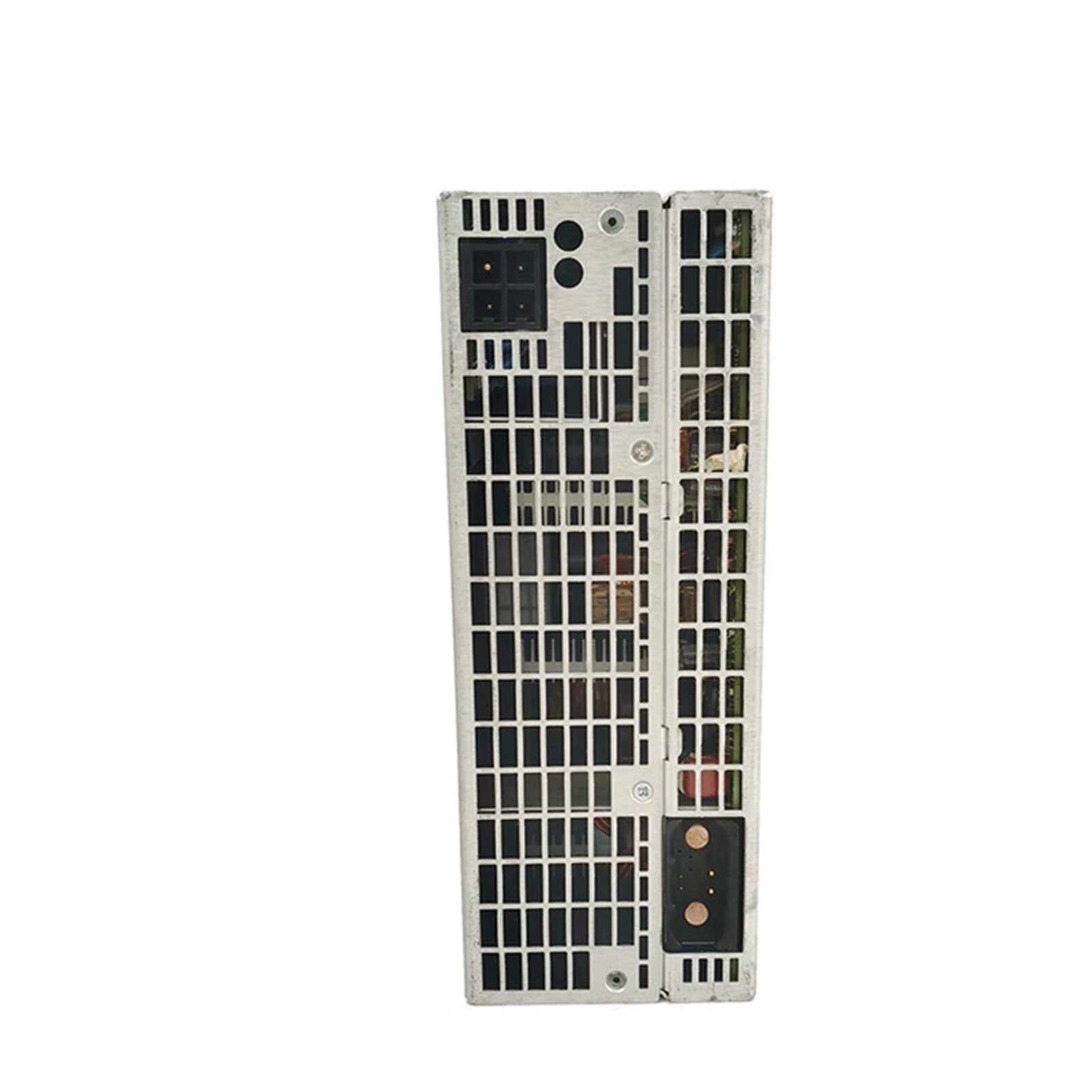

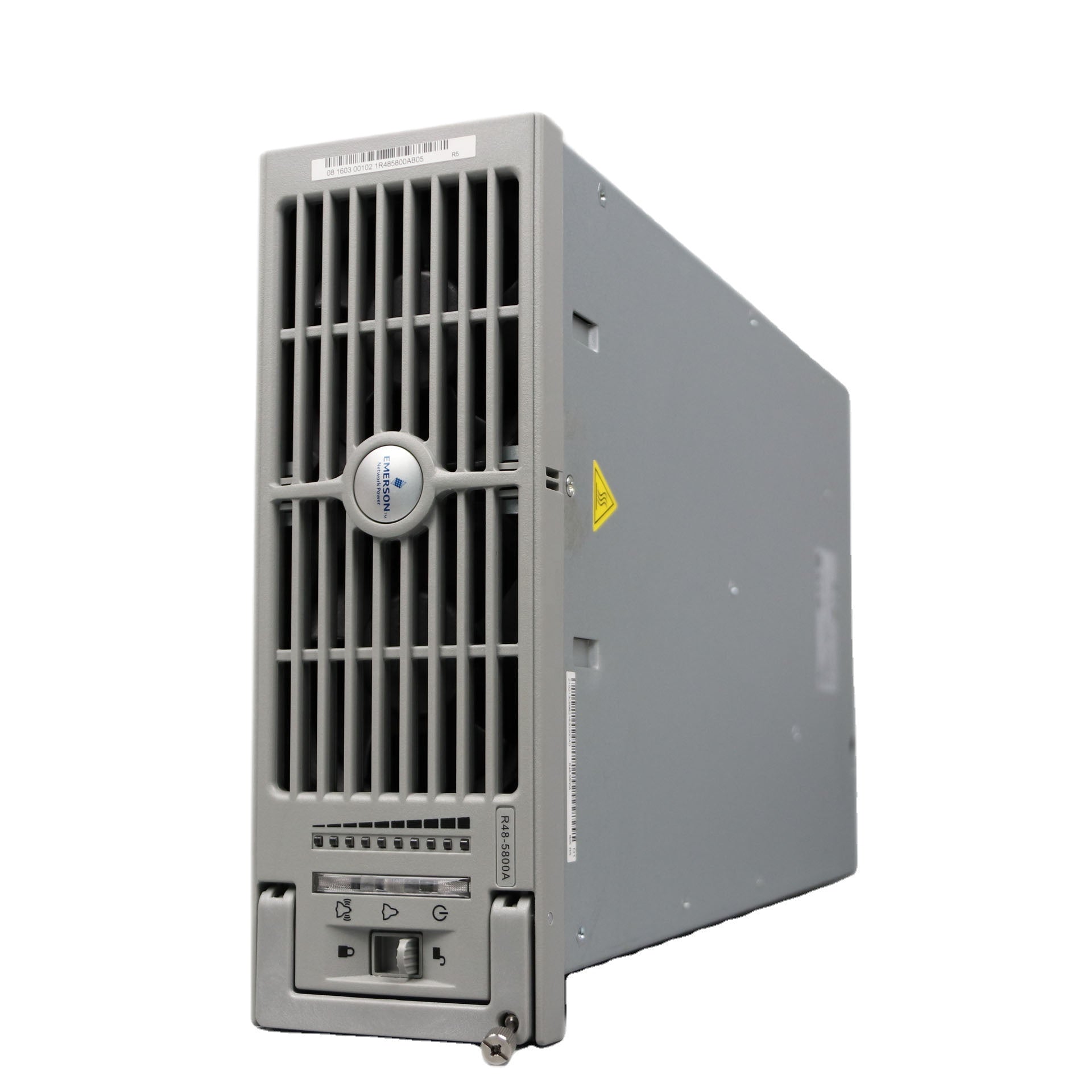

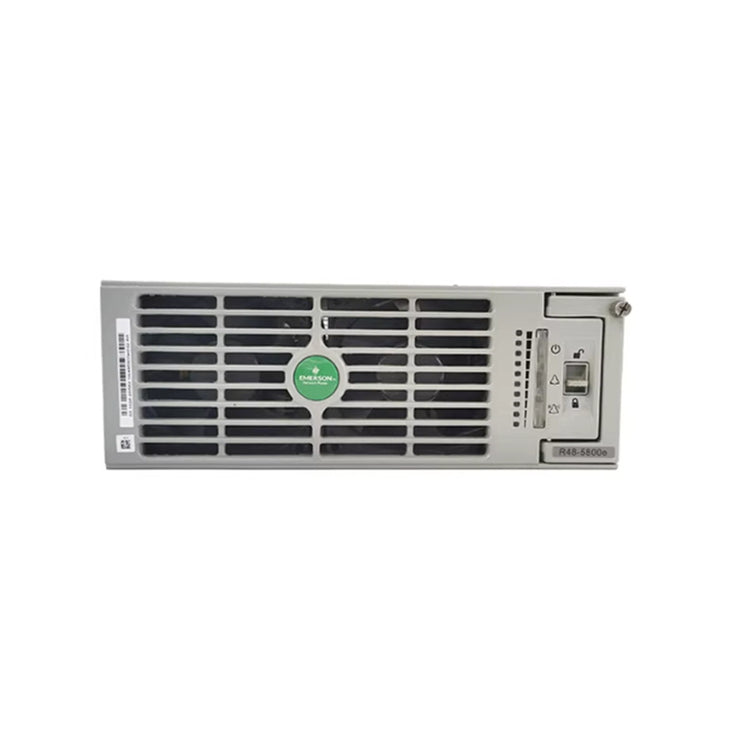

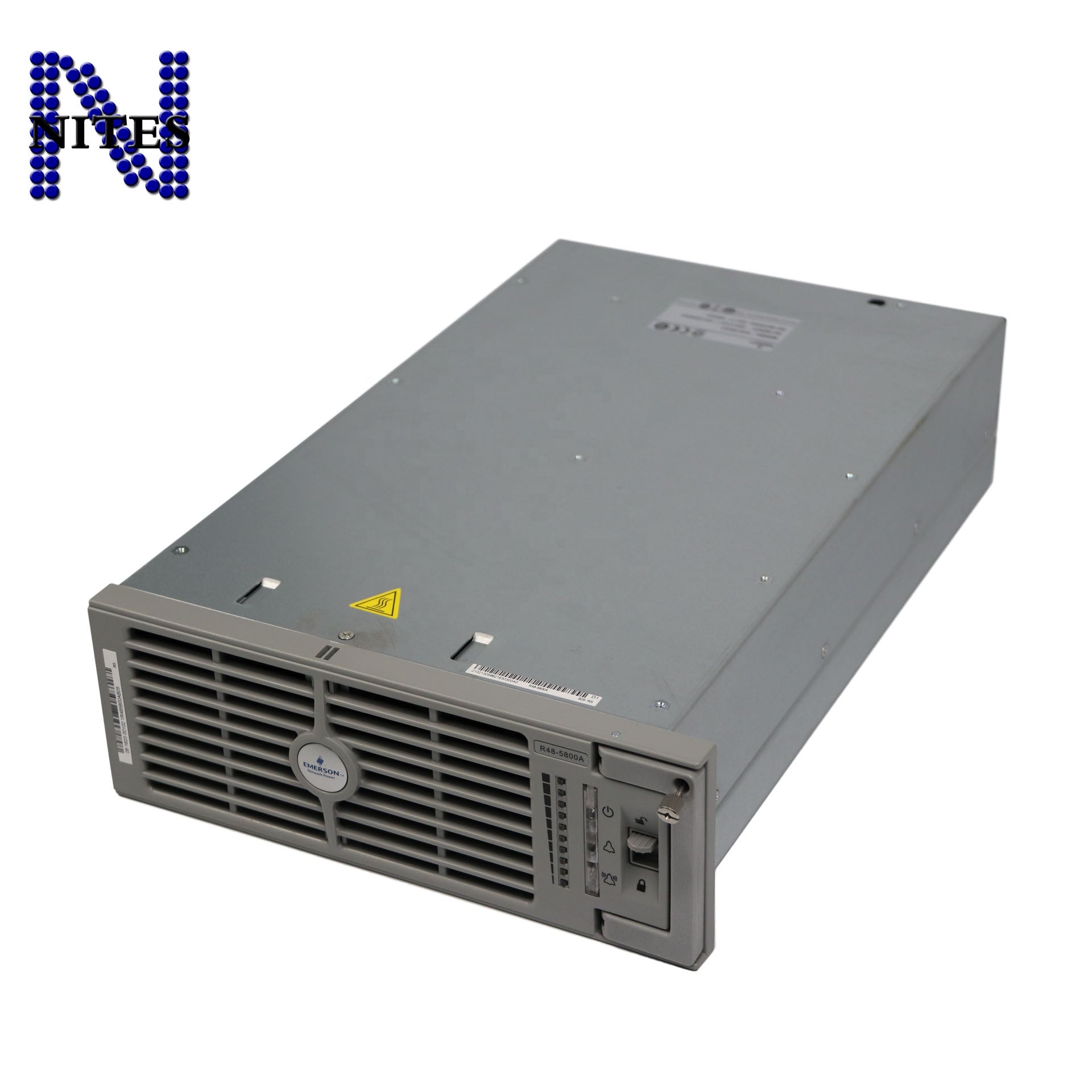

Emerson R48-5800E eSure 5800 Watt -48 Volt Telecom Rectifier Module
- Regular price
- $587.00
- Sale price
- $587.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: R48-5800E
Description
The Emerson R48-5800E is a high-efficiency telecommunications rectifier module designed to convert three-phase AC input power into regulated nominal -48 VDC output for telecom and network power systems. The Emerson R48-5800E delivers up to 5800 watts of output power with digital signal processor control, making it suitable for wireless infrastructure, broadband networks, and data communication facilities. Its constant-power architecture supports parallel operation to increase system capacity and redundancy.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Emerson |
| Category | Power Supplies |
| Part Number | R48-5800E |
| Subcategory | Telecom Rectifier Module |
| Product Series | eSure |
| Product Type | Switching Rectifier Module |
| Input Voltage | 260 to 530 VAC Three-Phase |
| Nominal Input Voltage | 380 to 480 VAC |
| Input Frequency | 45 to 65 Hz |
| Maximum Input Current | 13 A |
| Power Factor | 0.99 |
| Output Voltage | Adjustable -42 to -58 VDC (Nominal -48 VDC) |
| Maximum Output Power | 5800 W |
| Maximum Output Current | 120 A |
| Peak Efficiency | 96.2% |
| Input Connector | IEC 320-C20 |
| Cooling Method | Forced Air |
| Application | Telecommunications, Fiber Networks, Wireless Infrastructure, Data Communications |
| Compliance | CE, RoHS, FCC |
| Weight | Approximately 4.00 kg |
Information About R48-5800E
The R48-5800E is part of the Emerson eSure™ rectifier platform, developed for high-availability telecommunications power applications. It utilizes advanced switch-mode power conversion with integrated Digital Signal Processor technology to provide precise voltage regulation, high efficiency, and intelligent system monitoring. The module operates from a wide three-phase AC input range and produces an adjustable nominal -48 VDC output compatible with telecom DC power plants and battery backup systems. It can be installed alongside multiple rectifiers under a compatible system controller to support scalable power expansion and N+1 redundant configurations.
Key Features:
- High Power Output: Delivers up to 5800 watts of regulated direct current power for demanding telecommunications applications.
- Wide Input Voltage Range: Accepts 260 to 530 VAC three-phase input for flexible deployment across various electrical infrastructures.
- Digital Signal Processor Control: Uses advanced Digital Signal Processor technology for precise voltage regulation and efficient operation.
- High Conversion Efficiency: Achieves peak operating efficiency of up to 96.2 percent to reduce energy consumption and heat generation.
- Parallel Operation Capability: Supports multiple rectifiers operating together for increased capacity and system redundancy.
- Adjustable Output Current: Provides programmable output current limiting up to 120 amperes for optimized load management.
- Low Electrical Noise: Produces very low psophometric noise to protect sensitive telecommunications equipment.
- Telecom Power System Integration: Designed for use in central offices, wireless base stations, fiber optic networks, and broadband communication systems.
The R48-5800E delivers the reliability and precision required for continuous direct current power conversion in mission-critical telecommunications and network infrastructure.
