Product Description P/N: EMI104-10
Description
The Eaton EMI104-10 is a 0U vertical metered input rack power distribution unit (PDU) designed for high-density IT and data center environments requiring precise power monitoring.
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| Brand | Eaton |
| Category |
Electrical Products
|
| Part Number | EMI104-10 |
| Subcategory | Power Distribution |
| Compliances | TAA Compliant |
| Certifications | UL Listed |
| Form Factor | 0U (Vertical) |
| Outlet Control | No |
| Phase | Single-phase |
| Wattage | 5.76 kW max |
| Amperage Rating | 24A |
| Input Voltage | 200-240V |
| Input Connection | L6-30P |
| Outlets | (36) C13 Outlet grip, (6) C19 Outlet grip |
| Cord Length |
10 ft
|
| Frequency Rating |
50-60 Hz
|
| Serial Interface |
RS-232
|
| Operating Temperature |
0° to 60°C (32° to 140°F)
|
| Length/Depth |
2.05 in
|
| Height |
66.5 in
|
| Width |
2.1 in
|
| Weight |
15.54 lbs
|
Information About EMI104-10
The Eaton EMI104-10 is a 0U vertical metered input rack power distribution unit (PDU) designed for high-density IT and data center environments requiring precise power monitoring. Operating at 200–240V single-phase with a 24A input capacity, it delivers up to 5.76 kW of power through 42 outlets—comprising 36 IEC C13 and 6 IEC C19 receptacles. Equipped with a 10-foot NEMA L6-30P input cord, this PDU features an advanced LCD pixel display and supports remote monitoring via Ethernet and RS-232 interfaces. Its hot-swappable meter ensures uninterrupted operation during maintenance, and the unit can daisy-chain with up to four PDUs to share a single network connection. Built to withstand ambient temperatures up to 60°C (140°F), the EMI104-10 is UL Listed and TAA compliant, ensuring reliability and compliance in demanding power distribution applications.
Key Features:

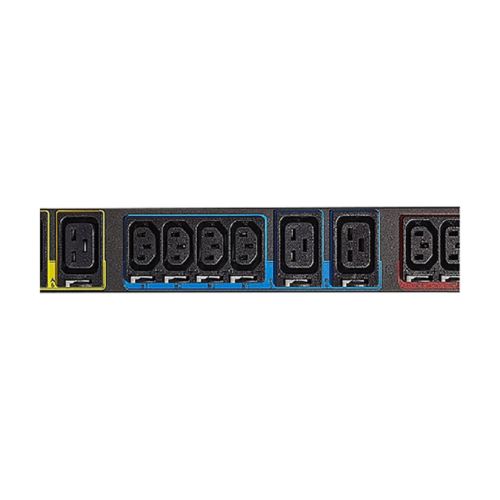

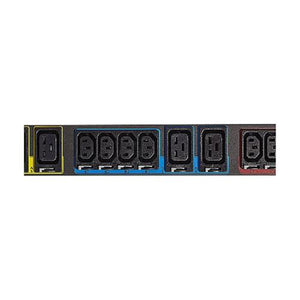

- High-Density Outlet Configuration: Equipped with 36 IEC C13 and 6 IEC C19 outlets, accommodating a wide range of IT equipment.
- Accurate Power Monitoring: Provides ±1% billing-grade accuracy for precise energy usage tracking.

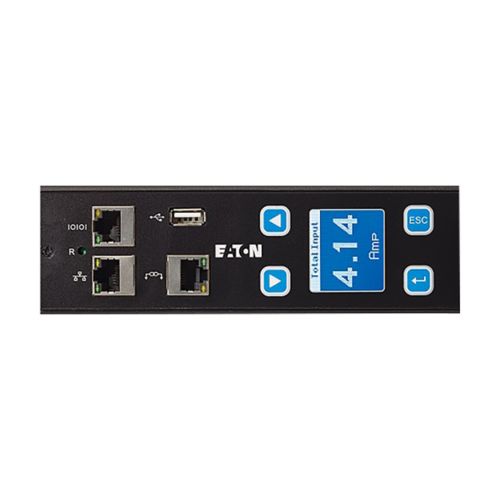

networkhardwares.com - Advanced Display Interface: Features an LCD pixel display for real-time monitoring of power metrics.
- Remote Management Capabilities: Supports Ethernet and RS-232 interfaces for seamless remote monitoring and control.
- Hot-Swappable Meter: Allows for maintenance without disrupting power to connected equipment.
networkhardwares.com - Daisy-Chaining Support: Enables up to four PDUs to share a single network connection, simplifying network infrastructure.
- Robust Construction: Designed to operate reliably in environments with temperatures up to 60°C (140°F).
- Certifications: UL Listed and TAA compliant, meeting stringent safety and compliance standards.
The Eaton EMI104-10 delivers intelligent, high-efficiency power distribution with remote visibility and control, making it an ideal choice for modern data centers and critical IT infrastructure.
