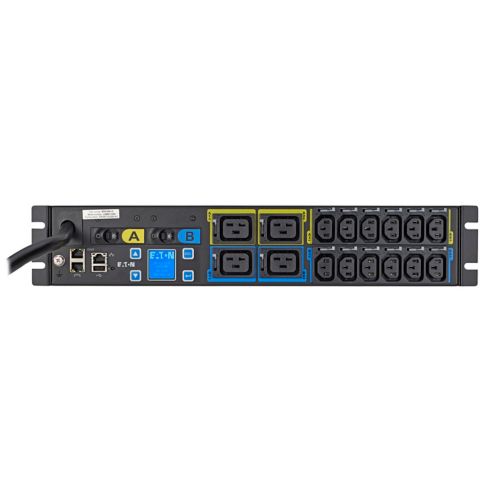

EMIU06-10 | Eaton Power Distribution Unit
- Regular price
- $834.00
- Sale price
- $834.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: EMIU06-10
Description
The Eaton EMIU06-10 is a metered input rack-mounted Power Distribution Unit (PDU) designed for high-density IT environments requiring precise power monitoring and efficient load management.
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| Brand | Eaton |
| Category |
Power Distribution Units
|
| Part Number | EMIU06-10 |
| Subcategory | Metered Input Rack-Mount PDU |
| Certifications | UL Listed |
| Form Factor |
2U
|
| Outlet Control |
No
|
| Phase |
Single-phase
|
| Input Voltage |
200-240V
|
| Input Connection |
L6-30P
|
| Outlets |
(12) C13 Outlet Grip, (4) C19 Outlet grip
|
| Cord Length |
10 ft
|
| Frequency Rating |
50-60 Hz
|
| Operating Temperature |
0° to 60°C (32° to 140°F)
|
| Length/Depth |
5 in
|
| Height |
3.4 in
|
| Width |
19 in
|
| Weight |
9.9 lbs
|
Information About EMIU06-10
The Eaton EMIU06-10 is a metered input rack-mounted Power Distribution Unit (PDU) engineered for high-density IT environments such as data centers and network closets. With a power capacity of 5.76 kW, it offers precise input-level power monitoring and efficient load management. The unit features 16 outlets—12 IEC C13 and 4 IEC C19—accommodating a variety of IT equipment. Its 2U horizontal rack-mountable form factor and 10-foot cord provide flexible installation options. The EMIU06-10 includes an advanced LCD display with ±1% billing-grade accuracy and supports daisy-chaining of up to four units, sharing a single IP address for streamlined network management. It is UL Listed and comes with a 3-year limited warranty.
Eaton
Key Features:
- Power Capacity: 5.76 kW
- Input Voltage: 200–240V AC
- Input Connector: NEMA L6-30P
- Input Current: 24A
- Frequency: 50–60 Hz
- Outlets: 12 × IEC C13, 4 × IEC C19
- Form Factor: 2U rack-mountable (horizontal orientation)
- Cord Length: 10 ft
- Monitoring Interface: Ethernet 10/100 (RJ-45), RS-232
- Display: Advanced LCD with ±1% billing-grade accuracy
- Daisy-Chaining: Supports up to 4 units sharing a single IP address
- Operating Temperature: 0° to 60°C (32° to 140°F)
- Dimensions (W × D × H): 19 in × 8.4 in × 3.4 in
- Weight: Approximately 9.9 lbs
- Certifications: UL Listed
The Eaton EMIU06-10's advanced monitoring capabilities, including real-time current draw tracking and phase balancing, make it an ideal solution for environments where precise power management is critical. Its ability to daisy-chain multiple units simplifies network management and reduces infrastructure complexity. The robust design and comprehensive feature set ensure reliable performance in demanding applications.
