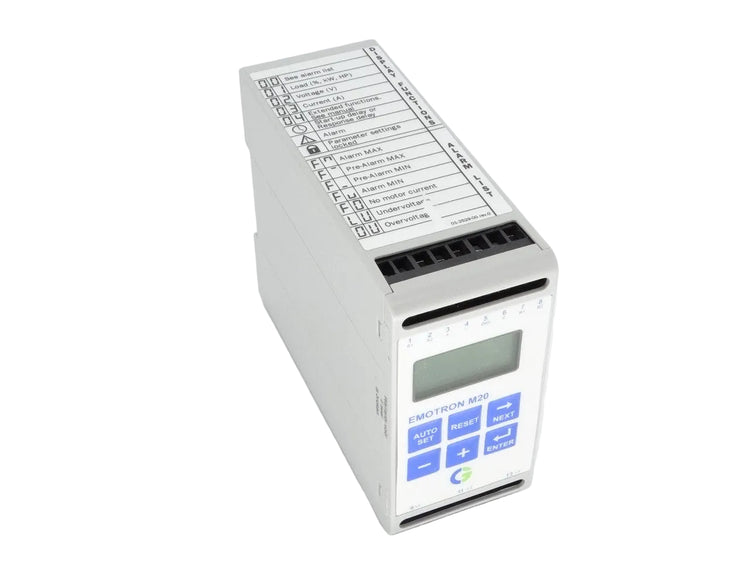

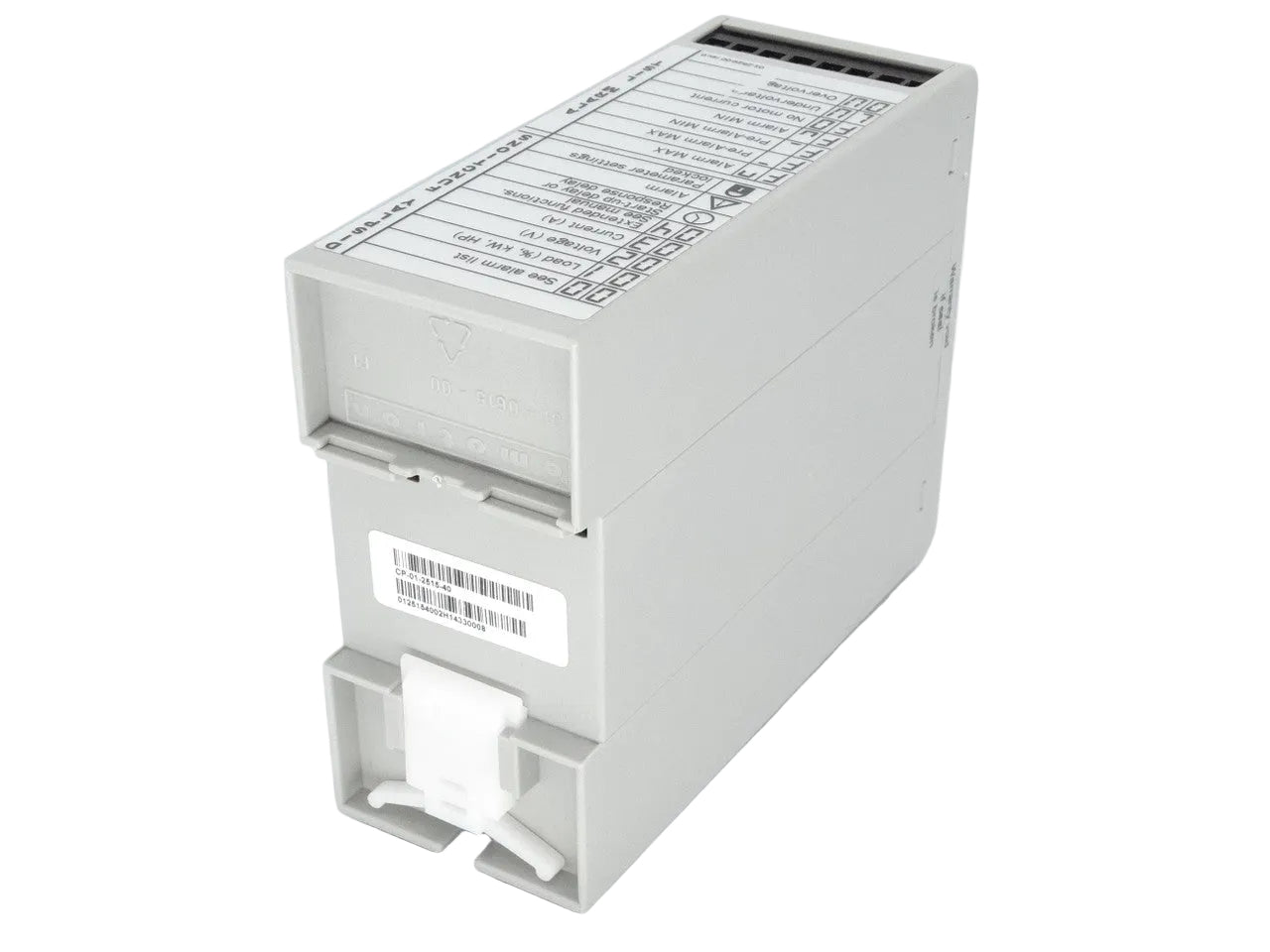

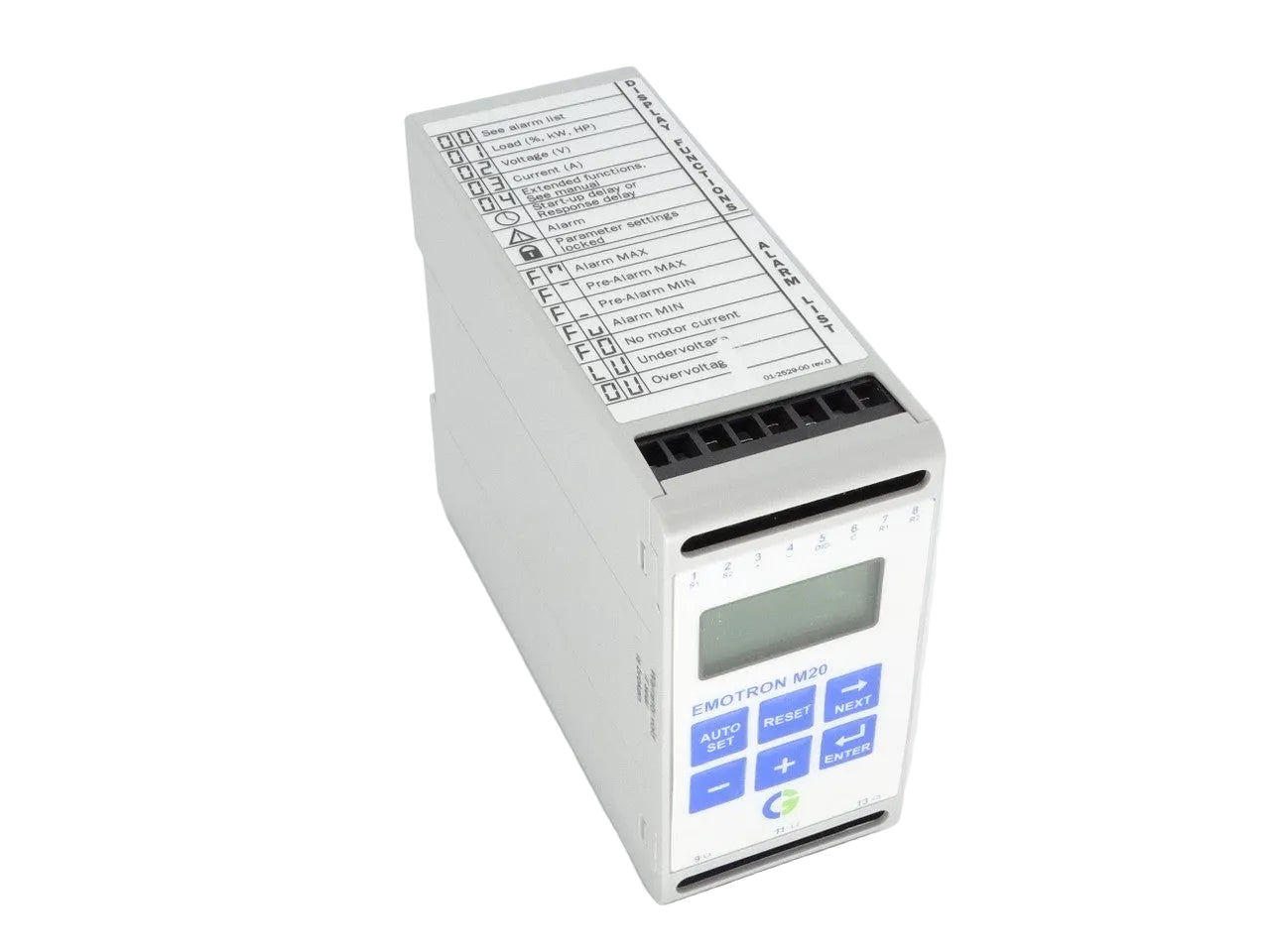

Emotron 01-2520-45 M20 Shaft Power Monitor 3-Phase with Display
- Regular price
- $844.00
- Sale price
- $844.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 01-2520-45
Description
The Emotron 01-2520-45 Shaft Power Monitor is a three-phase monitoring device designed to measure and protect rotating equipment by tracking shaft power consumption. It provides real-time load monitoring to prevent overload, underload, and process inefficiencies. Equipped with a display interface, it enables precise control and diagnostics in industrial motor-driven applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Emotron |
| Category | Power Monitoring |
| Part Number | 01-2520-45 |
| Subcategory | Shaft Power Monitors |
| Product Type | Shaft Power Monitor (M20 Series) |
| Phase Type | Three-phase |
| Voltage Range | 380–500 VAC |
| Frequency | 50/60 Hz |
| Current Input | 1.5 A |
| Analog Output | 0–20 mA |
| Display Type | Integrated Display |
| Model Type | CTM010-100 |
| Application | Motor Load Monitoring |
| Duty Type | Pilot Duty |
| Weight | 0.3 kg |
Information About 01-2520-45
The 01-2520-45 is part of Emotron’s M20 shaft power monitoring series, developed for continuous supervision of motor-driven machinery. It operates on three-phase systems and measures power directly via current transformer input, eliminating the need for external sensors on the shaft. The unit supports analog output signals such as 0–20 mA for integration into control systems and automation platforms. Designed for industrial environments, it enhances equipment protection by detecting abnormal load conditions and enabling preventive maintenance.
Key Features:
- Shaft Power Monitoring: Measures motor load to detect underload, overload, and process anomalies
- Three-Phase Operation: Designed for use in 3-phase industrial power systems
- Integrated Display: Provides real-time visualization of operating conditions
- Analog Output Signal: 0–20 mA output for integration with control systems
- Current Transformer Input: Enables indirect power measurement without mechanical sensors
- Wide Voltage Range: Operates on 380–500 VAC supply
- Frequency Compatibility: Supports both 50 Hz and 60 Hz systems
- Equipment Protection Function: Helps prevent damage and improve process reliability
The 01-2520-45 delivers the reliability and precision required for shaft power monitoring and motor protection in industrial automation systems.
