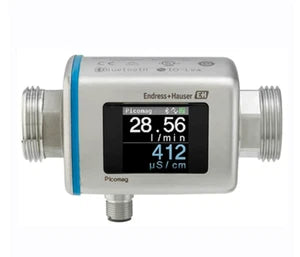

Endress+Hauser DMA15-AAAAA1 Picomag Electromagnetic Flowmeter with IO-Link
- Regular price
- $1,495.00
- Sale price
- $1,495.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: DMA15-AAAAA1
Description
The Endress+Hauser DMA15-AAAAA1 is a Picomag electromagnetic flowmeter for measuring conductive liquids in utility and industrial systems. It combines flow, temperature, and conductivity measurement with a local display, IO-Link communication, and Bluetooth configuration
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Endress+Hauser |
| Category | Sensors & Switches |
| Part Number | DMA15-AAAAA1 |
| Subcategory | Flow Meter |
| Product Series | Picomag |
| Measuring Principle | Electromagnetic |
| Measured Variables | Volume flow, temperature, conductivity |
| Nominal Diameter | DN15 |
| Documented Flow Range | 0.05–35 L/min |
| Process Connections | G 1/2-inch male threads |
| Power Supply | 18–30 V DC |
| Digital Communication | IO-Link |
| Configurable Signal Functions | 4–20 mA, 2–10 V, pulse, switching; status input |
| Local Display | Backlit 1.4-inch TFT color display |
| Configuration Interface | Bluetooth via SmartBlue app |
| Maximum Process Pressure | 16 bar |
| Medium Temperature | −10 °C to +70 °C |
| Ambient Temperature | −10 °C to +60 °C |
| Protection Rating | IP65/IP67 |
| Weight | 1.014 lbs |
Information About DMA15-AAAAA1
The DMA15-AAAAA1 is the DN15 version of the Picomag inline flowmeter, with G 1/2-inch process connections. Its electromagnetic measuring principle supports bidirectional flow measurement without moving measuring components. The sensor and transmitter share one compact housing for installation in pipework and equipment skids. Operators can configure the device through the SmartBlue app and connect its configurable signals to compatible automation equipment.
Key Features:
- Electromagnetic Measurement: Measures the volumetric flow of electrically conductive liquids.
- Multivariable Monitoring: Measures flow, temperature, and conductivity within one device.
- DN15 Flow Range: Provides a documented measuring range of 0.05–35 L/min.
- IO-Link Communication: Supports digital integration with a compatible IO-Link master.
- Bluetooth Configuration: Allows wireless setup and parameter access through the SmartBlue app.
- Local Color Display: Shows operating information on a backlit 1.4-inch TFT screen.
- Configurable Outputs: Supports current, voltage, pulse, and switching functions according to configuration.
- Empty-Pipe Detection: Identifies an unfilled measuring tube to support measurement diagnostics.
The DMA15-AAAAA1 delivers the reliability and precision required for conductive-liquid flow monitoring in utility circuits and automated process equipment.
