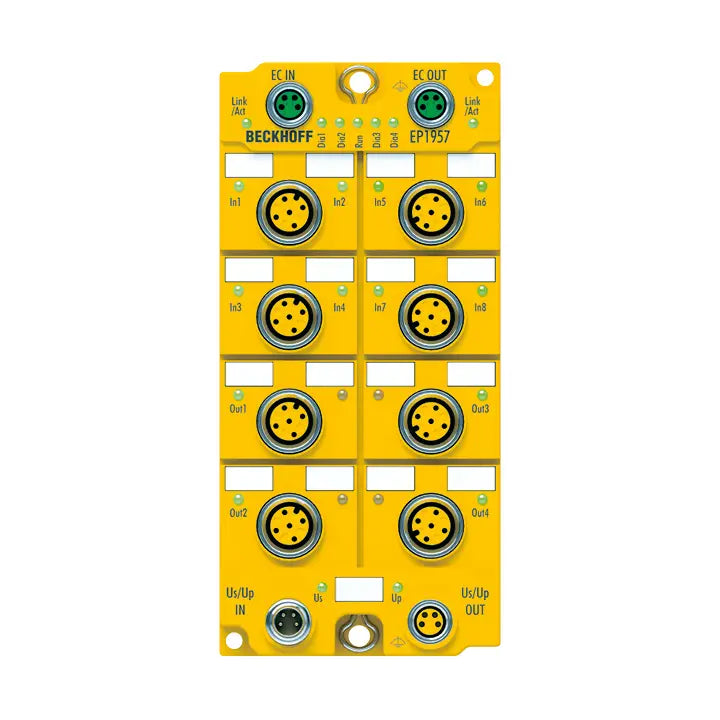

EP1957-0022 | Beckhoff EtherCAT Box with 8 Safe Inputs 4 Safe Outputs
- Regular price
- $773.00
- Sale price
- $773.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: EP1957-0022
Description
The Beckhoff EP1957-0022 is an EtherCAT Box module featuring 8 safe digital inputs and 4 safe digital outputs with 24 V DC supply and 0.5 A output capacity. It integrates TwinSAFE Logic functionality, enabling complete safety loops and stand-alone operation without an EtherCAT connection.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Beckhoff |
| Category | Safety I/O Modules |
| Part Number | EP1957-0022 |
| Subcategory | EtherCAT Box Modules with TwinSAFE |
| Protocol | TwinSAFE / Safety over EtherCAT |
| Bus Interface | 2 × M8 socket, 4-pin, a-coded, shielded |
| Connection Technology | 1 × M12 socket, 5-pin, a-coded |
| Inputs | 8 safe digital inputs |
| Outputs | 4 safe digital outputs |
| Max. Output Current | 0.5 A per channel |
| Integrated Logic | TwinSAFE Logic (similar to EL6910) |
| Safe Connections Supported | Up to 128 |
| Cycle Time | Approx. 1 ms (depending on project size) |
| Fault Response Time | ≤ watchdog time (parameterizable) |
| Current Consumption | Max. 120 mA (US) / 60 mA (UP) |
| Installation Position | Variable |
| Protection Rating | IP67 (EN 60529) |
| Dimensions (W x H x D) | 60 × 126 × 26.5 mm |
| Operating Temperature | -25…+60°C |
| Weight | 1.15 lbs (approx. 315 g) |
Information About EP1957-0022
The EP1957-0022 is part of Beckhoff’s EtherCAT Box series, designed for decentralized machine safety applications in harsh industrial environments. Built with an IP67 protection rating, it allows for direct installation in the field, reducing cabinet space requirements. The device includes 8 safe inputs, 4 safe outputs, and integrated TwinSAFE Logic similar to the EL6910, enabling safety logic execution directly in the module. With support for up to 128 safe connections, fast response times, and compatibility with Safety over EtherCAT protocols, the EP1957-0022 offers a scalable and reliable solution for functional safety. Its flexibility, M8/M12 connection technology, and robust housing ensure reliable integration in demanding automation systems.
Key Features:
-
Safe I/O Channels: Provides 8 safe digital inputs and 4 safe digital outputs, allowing integration of multiple safety devices in one unit.
-
TwinSAFE Logic Integration: Functions as a safety controller, enabling logic execution directly on the module without external components.
-
Stand-Alone Operation: Operates independently without EtherCAT connection, ensuring safety functionality even in disconnected states.
-
High Connection Capacity: Supports up to 128 safe connections for complex safety applications and networked architectures.
-
Fast Response: Offers a cycle time of approx. 1 ms with parameterizable watchdog fault response for high-performance safety control.
-
Standard Output ANDing: Standard outputs can be linked with a safe output signal for combined functional and safety control.
-
Robust Field Installation: Features M8/M12 connectors with shielded design for reliable industrial connectivity.
-
Rugged Protection: Built to IP67 standards, ensuring dust-tight and water-resistant performance for field use.
-
Compact Dimensions: Measures just 60 × 126 × 26.5 mm for efficient installation in space-limited environments.
-
Global Approvals: CE-certified and compliant with Safety over EtherCAT standards, meeting international industrial safety requirements.
The EP1957-0022 delivers the reliability and precision required for decentralized machine safety applications in automation systems.
