EPP1322-0001 | Beckhoff EtherCAT P Box 2-Port Feed-In 24V DC
- Regular price
- $699.00
- Sale price
- $699.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: EPP1322-0001
Description

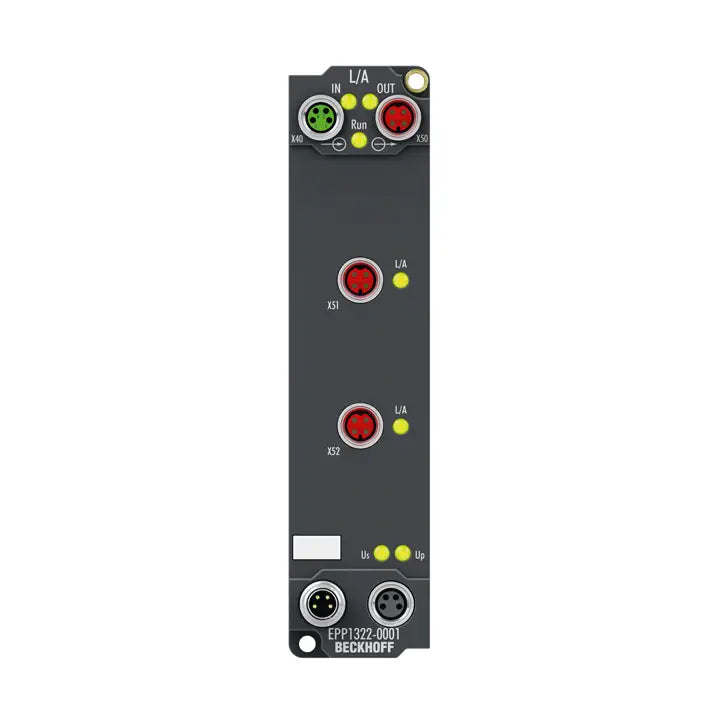

The Beckhoff EPP1322-0001 is an EtherCAT P Box designed as a 2-port EtherCAT-to-EtherCAT P feed-in module. It provides one EtherCAT input and three EtherCAT P outputs, enabling power and communication distribution in decentralized automation systems.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Beckhoff |
| Category | I/O Modules |
| Part Number | EPP1322-0001 |
| Subcategory | EtherCAT P Couplers |
| Protocol | EtherCAT / EtherCAT P |
| Task | Coupling EtherCAT to EtherCAT P, junction, feed-in of US and UP |
| Channels | 1 x EtherCAT IN, 3 x EtherCAT P OUT |
| Data Transfer Rate | 100 Mbit/s |
| Distance Between Stations | 100 m (100BASE-TX) |
| Nominal Voltage | 24 V DC (-15%/+20%) |
| Sum Current | Max. 3 A per US and UP for all EtherCAT P ports combined |
| Current Consumption from US | typ. 100 mA |
| Power Supply Connection | Feed: 1 x M8 male socket, 4-pin, a-coded; downstream: 1 x M8 female socket, 4-pin, a-coded |
| Bus Interface | 1 x M8 socket shielded, 1 x M8 socket P-coded shielded |
| Distributed Clocks | No |
| Configuration | Not required |
| Operating Temperature | -25…+60 °C |
| Storage Temperature | -40…+85 °C |
| Dimensions (W x H x D) | 30 x 126 x 26.5 mm |
| Material | PA6 (polyamide) |
| Installation | 2 fixing holes, 3.5 mm diameter for M3 |
| Weight | approx. 165 g |
Information About EPP1322-0001
The EPP1322-0001 is part of Beckhoff’s EtherCAT P Box series, designed to provide flexible power and communication distribution in decentralized field installations. It serves as a feed-in module, converting a standard EtherCAT connection into EtherCAT P while supplying both US (control voltage) and UP (peripheral voltage) to downstream devices. With three EtherCAT P output ports and support for up to 3 A total current per voltage branch, it ensures reliable energy and data distribution in compact field networks. Its rugged polyamide housing, IP-rated M8 connectors, and simple installation make it a robust solution for industrial automation environments.
Key Features:
-
EtherCAT-to-EtherCAT P Feed-In: Provides seamless coupling of EtherCAT networks with EtherCAT P, including power distribution.
-
Multi-Port Output: Offers three EtherCAT P output channels for connecting downstream modules and devices.
-
Compact Power Integration: Supplies both US (control) and UP (peripheral) voltages, with a maximum of 3 A per branch.
-
Fast Communication: Supports 100 Mbit/s data rates with distances of up to 100 m between stations.
-
Plug-and-Play Operation: Requires no configuration, simplifying setup in distributed automation systems.
-
Rugged Connectivity: Equipped with shielded M8 connectors for reliable industrial communication and power transfer.
-
Efficient Power Use: Consumes only 100 mA from US while feeding multiple downstream EtherCAT P nodes.
-
Durable Housing: Constructed from PA6 polyamide for resistance to industrial wear and environmental stress.
-
Wide Environmental Range: Operates from -25 °C to +60 °C with storage capability down to -40 °C.
-
Easy Installation: Designed with two fixing holes for secure mounting using M3 screws.
The EPP1322-0001 delivers the reliability and precision required for decentralized EtherCAT P power and communication distribution in industrial automation systems.
