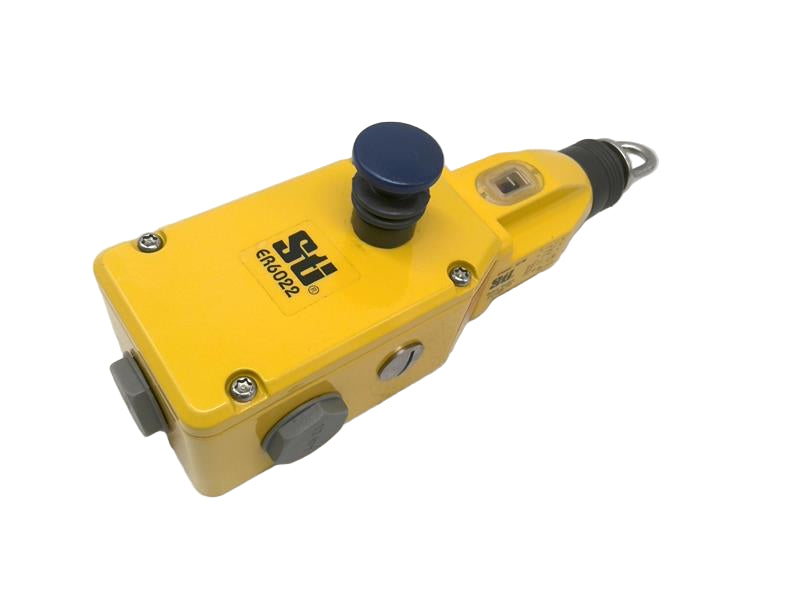

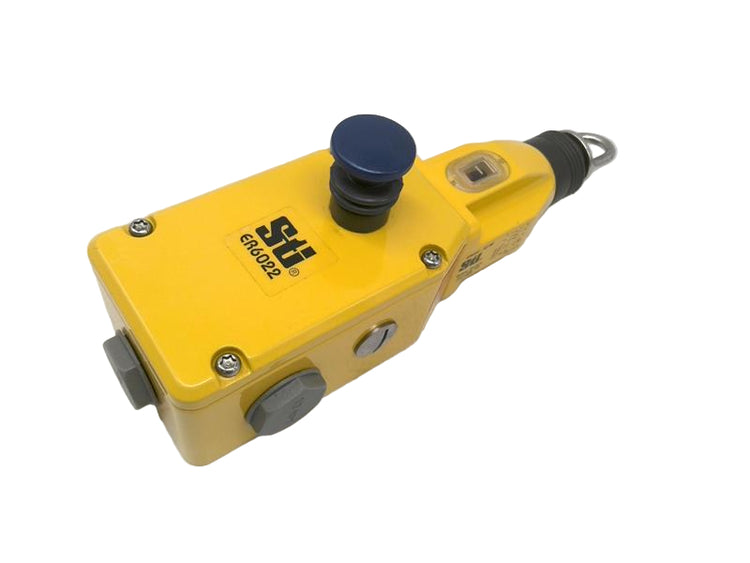

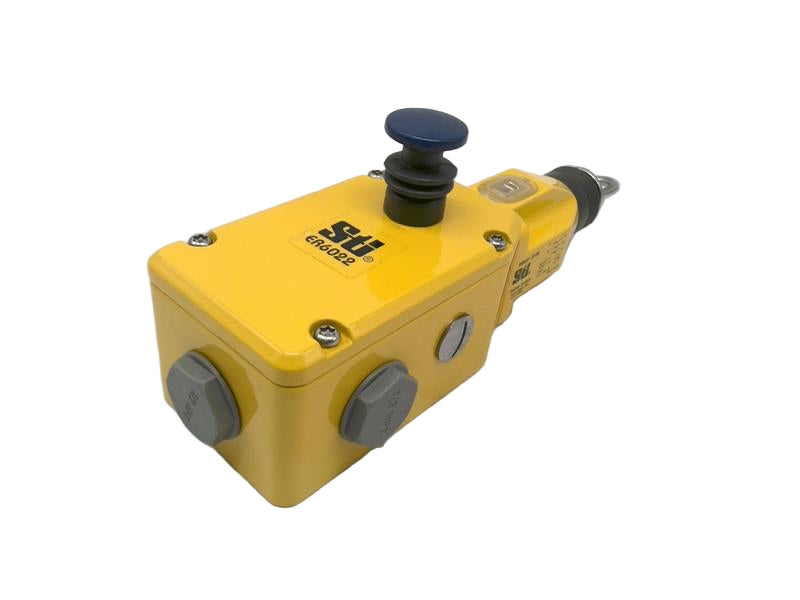

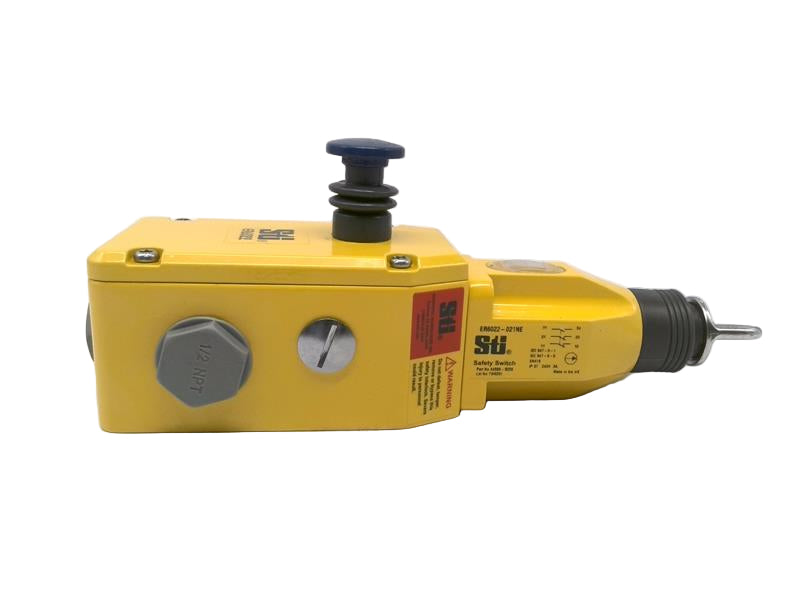

ER6022-021NE | Omron ER Series Cable Pull Safety Switch with Pushbutton IP67 120VAC
- Regular price
- $449.00
- Sale price
- $449.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: ER6022-021NE
Description
The Omron ER6022-021NE Cable Pull Safety Switch is a rugged, IP67-rated emergency stop and cable-operated safety switch designed for use in conveyor systems and industrial machinery. Featuring a pull-ring actuator with an integrated emergency pushbutton, it provides reliable DPST-NC + SPST-NO (3PST) safety contacts for immediate shutdown of hazardous operations in emergency situations.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Omron |
| Category | Safety Products |
| Part Number | ER6022-021NE |
| Subcategory | Cable Pull Switches |
| Series | ER Series |
| Type | Cable Pull Safety Switch with Pushbutton |
| Actuator Type | Pull ring and pushbutton |
| Contact Form | DPST-NC + SPST-NO (3PST, 2NC/1NO) |
| Switch Function | On-Off, Off-On |
| Voltage Rating (AC) | 120 VAC |
| Voltage Rating (DC) | 24 VDC |
| Current Rating | 6 A (AC), 2.5 A (DC) |
| Mounting Type | Flat surface or bracket mount |
| Ingress Protection | IP67 – dust-tight, waterproof |
| Operating Temperature Range | -25°C to +80°C (-13°F to +176°F) |
| Output Function | Safety interlock/emergency stop |
| Material | Metal housing with sealed actuator assembly |
| Features | Pushbutton E-stop, mechanical latch, manual reset |
| Applicable Standards | EN ISO 13850, IEC 60947-5-5 (Safety Switch Standard) |
| Cable Entry | ½" NPT conduit entry |
| Indicator Option | LED status (in compatible variants) |
| Weight | Approx. 0.9 lb (410 g) |
| Approvals | CE, UL (pending), RoHS Compliant |
| Application | Conveyor systems, material handling, machinery safety |
| Country of Origin | Japan |
Information About ER6022-021NE
The ER6022-021NE is part of the Omron ER Series of cable pull safety switches, engineered for use in large-area emergency stop applications. It can be installed along conveyor belts, production lines, and automated systems, allowing operators to activate emergency stop functions from any point along the protected zone. This model features a pull-cable and pushbutton combination actuator, offering redundant activation options for enhanced operator safety. Rated for 6 A at 120 VAC or 2.5 A at 24 VDC, it provides DPST-NC + SPST-NO contact configuration and includes mechanical latching for positive safety circuit integrity. With a durable flat-surface or bracket mount design and IP67 protection, it withstands harsh industrial environments including dust, moisture, and vibration.
Key Features:
- Cable Pull and E-Stop Operation: Enables emergency shutdown by pulling the safety cable or pressing the pushbutton.
- Multiple Contacts: Provides 3PST contact configuration (2NC + 1NO) for reliable circuit redundancy.
- High Current Rating: Rated 6A at 120 VAC and 2.5A at 24 VDC for flexible control applications.
- IP67 Protection: Dust-tight and waterproof for industrial and outdoor environments.
- Durable Construction: Designed for conveyor and machinery safety applications under harsh conditions.
- Flat or Bracket Mounting: Simplifies installation on equipment frames or safety railings.
- Wide Temperature Range: Operates from -25°C to +80°C for dependable performance in varied environments.
- Emergency Stop Pushbutton: Integrated E-stop provides direct manual activation for operator safety.
The ER6022-021NE delivers the reliability and precision required for robust machine safeguarding and emergency stop applications.
